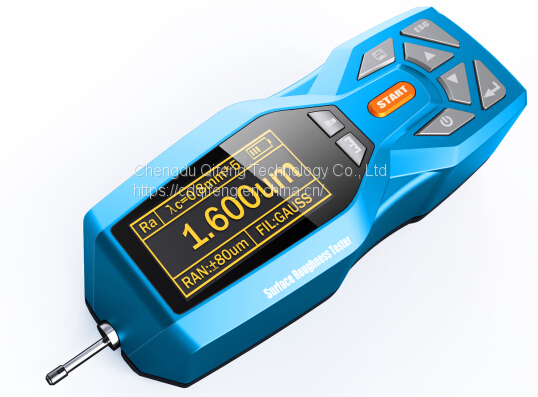

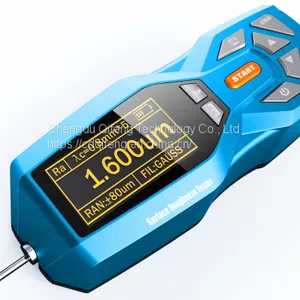

FR220 Surface Roughness Tester

Name: FR220 Surface Roughness Tester
Brand: Qifeng
SKU: 159142067
Availability: InStock

US$ 700 - 800 MOQ: 1 Piece

Key Specifications

Brand Name:

Qifeng

Place of Origin:

China

Model Number:

FR220

Chengdu Qifeng Technology Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Qifeng

Place of Origin China

Model Number FR220

MAIN FEATURE

*Stylish design with plastic shell, inspired by “TRANSFORMERS”;

*Visual waveform display;

*Electromechanical integration design, small volume, light weight, easy to use;

*Using DSP chip to control and data processing, high speed, low power consumption;

*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;

*Intuitive and rich display information, can display all the parameters and graphics;

*Compatible with ISO, DIN, ANSI, JIS national standards;

*Residual quantity icon, prompting the user to charge;

*Continuous working time: more than 20 hours;

*Real-time clock settings and display, convenient data recording and storage;

*With automatic dormancy, automatic shutdown and power saving function;

*Multi-info Display: measurement information, menu prompt, fault and power switch information indicated.

*With PC software, can be connected to a computer and printer;

*Optional different sensor, measuring platform, mini printer, extension rod and other accessories;

TECHNICAL DATA

20 Testing Parameters	Ra, Rz=Ry(JIS), Rq, Rt=Rmax, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx, RPc, Rk, Rpk, Rvk, Mr1, Mr2;
Measuring Range	Ra: 0.005~16.000μm Rz: 0.02~160.00μm
Sample Length	0.25, 0.80, 2.50mm
Evaluation Length	(1~5)L
Maximum Drive Stroke	17.5mm/0.7inch
Indication Accuracy	0.001μm
Indication Error	≤±10%
Variability
Data Storage	100 groups
Power	Rechargeable Li-battery
Relative Humidity
Working Temperature	-20°C~40°C
Size	158x63.5x46mm
Weight of Host	0.3kg
