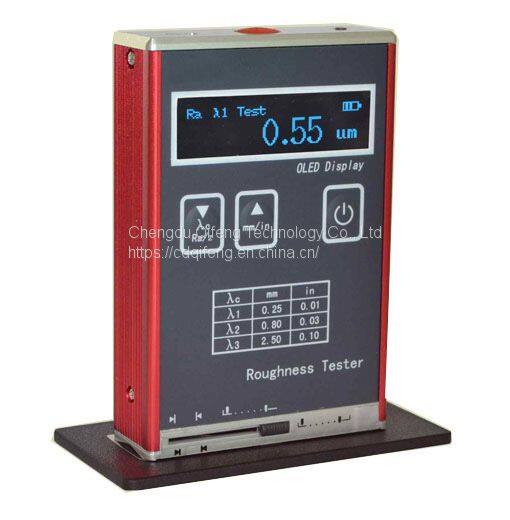

FR110 Surface Roughness Tester

Name: FR110 Surface Roughness Tester
Brand: Qifeng
SKU: 159141929
Availability: InStock

US$ 500 - 600 MOQ: 1 Piece

Key Specifications

Brand Name:

Qifeng

Place of Origin:

China

Model Number:

FR110

Chengdu Qifeng Technology Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Qifeng

Place of Origin China

Model Number FR110

MAIN FEATURE

*Ra, Rz, Rq, Rt 4 testing parameters, suitable for more applications.

*It could test ex-circle, flat surface, conical surface and also test groove larger than 80*30mm;

*Large measuring range suitable for most materials, both metal and non-metallic surface;

*Using high-speed DSP processor for data processing and calculation, quick measurement and computation speed;

*Shell used to pull aluminum mold design, durable, anti-electromagnetic interference ability significantly;

*Liquid crystal display wide temperature using OLED display, high brightness, suitable for various occasions;

*The lithium ion rechargeable battery, can work for a long time, no memory effect, long battery life;

* Using a dedicated charger or computer USB port for charging, can work during charging, quick and convenient;

*Real-time monitoring of lithium battery power and display, remind users to charge;

*Automatic shutdown function and low power design of software and hardware of the instrument with long working hours, suitable for field use.

*Support OEM Service;

*Pocket-size & economically price;

TECHNICAL DATA

4 Testing Parameters	Ra, Rz, Rq, Rt;
Measuring Range	Ra, Rq: 0.05~15.0μm Rz,Rt: 0.1~50.0μm
Sample Length	0.25, 0.80, 2.50mm
Evaluation Length	1.25, 4.0, 5.0mm
Stroke Length	6mm
Indication Accuracy	0.01μm
Indication Error	≤±15)%
Variability
Stylus Static Force:	≤ 0.016N
Force Measuring Rate of Change	≤ 800N/m
Power	Rechargeable Li-battery
Relative Humidity
Working Temperature	-20°C~40°C
Size	106mmx70mmx24mm
Weight of Host	200g
