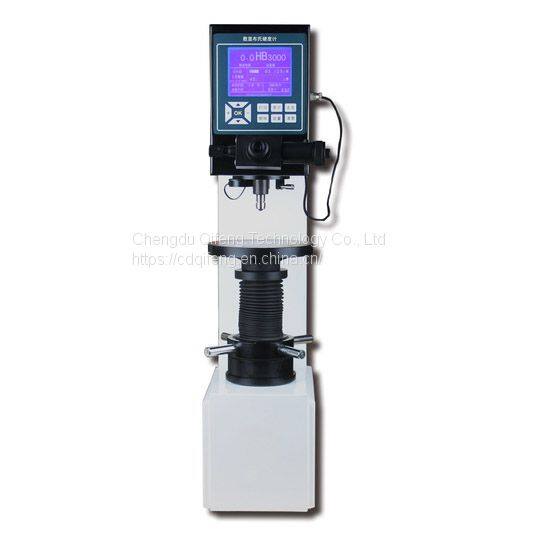

THB-3000D Digital Brinell hardness tester
Product Features：
Model THB-3000D Digital Brinell hardness tester with the latest development, has the domestic advanced water product of a new generation of Brinell hardness tester, the machine adopts electronic automatically add load, computer software programming, high rate of optical measurement, photoelectric sensors system. The operating process and the results of the trial data are available in large LCD display screen, the experimental results of data can be through the printer output.
Technical Specifications：
Model |
THB-3000D |
Brinell Scale |
HBW2.5/62.5 HBW2.5/187.5 HBW5/125 HBW5/750 HBW10/100、 HBW10/1500 HBW10/3000 HBW10/250 HBW10/500 HBW10/1000 |
Testing Force |
62.5kgf(612.9N)100kgf(980.7N)125kgf(1226N)187.5kgf(1839N)250kgf(2452N)500kgf(4903N)750kgf(7355N)1000kgf(8907N)1500kgf(14710N)3000kgf(29420N) |
Max Height of Specimen |
200mm |
Main Measuring unit |
0.625µm |
Net Weight |
About 90kg |
Power supply |
AC220+5%,50~60Hz |
Overall Dimension (mm) |
550*210*750mm |
Duration time |
5~60s |
Hardness testing Range |
8~650HBW |
Magnification of Microscope |
20X |
Carried Standard |
GB/T231.2 Chinese Standard, JJG150 Inspection Rule |
Distance of Indenter to outer wall |
135mm |
Indication of Hardness Value |
LCD display, Printer Output, Inside Printer |
Accessories (The Packing List)：
Name |
Quantity |
Name |
Quantity |
Objectives 20x |
1 |
Diameter 2.5、5、10mm Hard Alloy Steel Ball Indenter |
Each 1 |
Standard Blocks |
3 |
Large, Medium, “V” shaped Testing Table |
Each 1 |
Power Cable |
1 |
232 Cable |
1 |
Manual |
1 |
Product certificate, Printer Manual |
Each 1 |
