Home > Electrical & Electronics > Electric Motor > DC Motor > Automobile Clutch DC Worm Gear Motor With 4cm Diamension 12V 24V GM4058-3162ZY

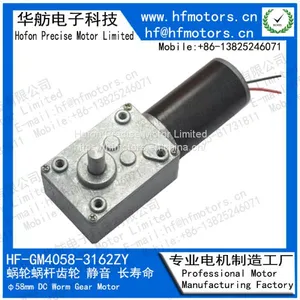

Automobile Clutch DC Worm Gear Motor With 4cm Diamension 12V 24V GM4058-3162ZY
US$ 17.6 - 18.3
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Brand Name:
Hofon
Place of Origin:
China
Model Number:
GM4058-3162ZY
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
35 days
Related Products
-
Metal Material DC Worm Drive Motor Stable Performance for Office Automatic Equipment GM6558-390SAUS$ 17.6 - 18.3MOQ: 2000 Pieces -
12V DC Worm Gear Motor , Garden Tool Worm Gear Motor 12V High Torque GM4632-370CHUS$ 7.2 - 7.8MOQ: 2000 Pieces
-
32mm Brushless DC Worm Gear Motor 24V for Precision Equipment / Household Appliances GM4632-2838US$ 17.6 - 18.3MOQ: 2000 Pieces
-
8mm Micro DC Motor 3V / 6V / 12V Brushed Motor For Lianr Robot Toy FF-K10WAUS$ 1.1 - 1.2MOQ: 2000 Pieces
-
10mm 3V / 2.4V Metal Gear DC Gear Motor GM10-M10VAUS$ 11.6 - 13.1MOQ: 2000 Pieces
Brand Name
Hofon
Place of Origin
China
Model Number
GM4058-3162ZY
Type
Gear Motor
Certification
ROHS
Torque
50000g.cm
Usage
Boat, Car, Electric Bicycle, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Other
Voltage(V)
12.0V Or Customized
Output Power
0.6W
Continuous Current(A)
0.07
Speed(RPM)
30
Commutation
Brush
Detailed Product Description
| Voltage Range: | 12V 24V Or Customized | Material: | Metal Gear |
|---|---|---|---|
| Diameter: | 40mm | No Load Speed: | 7RPM |
| No Load Current: | 150mA | Rated Load Torque: | 50000g.cm |
| Rated Load Speed: | 6RPM | Rated Load Current: | 700mA |
| Gear Ratio: | 522:1 |
40mm 12V 24V Metal DC Worm Gear motor Large Torque Low Noise For Automobile clutch
- DC Worm Gear-Box Motor
- Diameter : Φ40.0mm
- Output : APPROX 0.1~40.0W
- Noise Level : Less than 50dB
- Low noise, stable performance, quality assurance
Typical Applications
Automobile clutch Electric curtain Office Automatic Equipments Printer/paper Feeder Bank Equipments Safe Box Ad Equipment Analysis Instrument/electronic Game Machine Household Appliances Electronic Door Lock

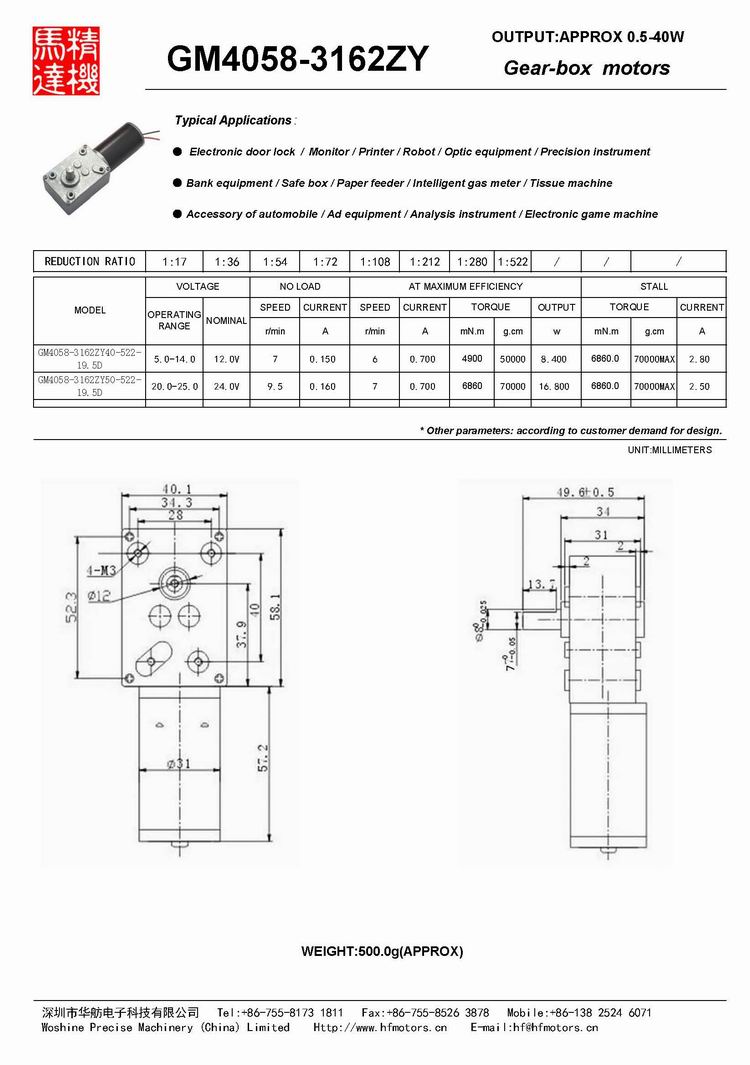

Specifications
The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements
| REDUCTION RATIO | 1:17 | 1:36 | 1:54 | 1:72 | 1:108 | 1:212 | 1:280 | 1:522 | / | / | / | ||
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | ||||
| GM4058-3162ZY40-522-19.5D | 5.0-14.0 | 12.0V | 7 | 0.150 | 6 | 0.700 | 4900 | 50000 | 8.400 | 6860.0 | 70000MAX | 2.80 | |
| GM4058-3162ZY50-522-19.5D | 20.0-25.0 | 24.0V | 9.5 | 0.160 | 7 | 0.700 | 6860 | 70000 | 16.800 | 6860.0 | 70000MAX | 2.50 | |

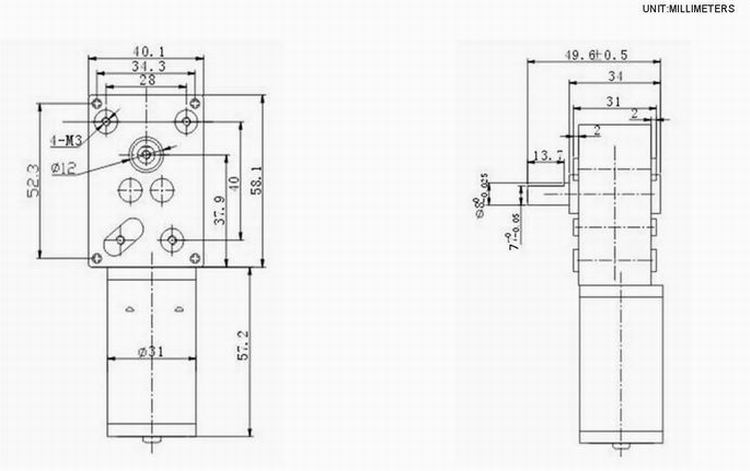

Drawing
Product Details Show
Quality Cotrol Test
Reliability Test & Laboratory
Noise Test
Water-proof Test
Life Test
Impact Test
Storage Test
Salt Spray Test
Environmental Related Substance
Competitive Advantage
- 16 years experience in manufacturing motor and gearbox motor
- Experienced Staff: average 12 years experience in R&D , ODM & OEM
- International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 20-25 working days after payment
- Quality Approvals
- Small Orders Accepted
- Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc
