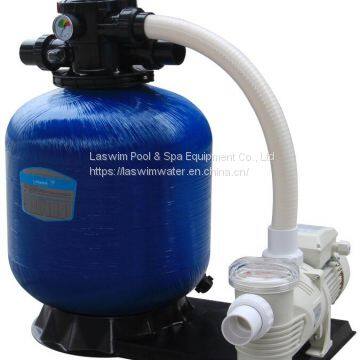

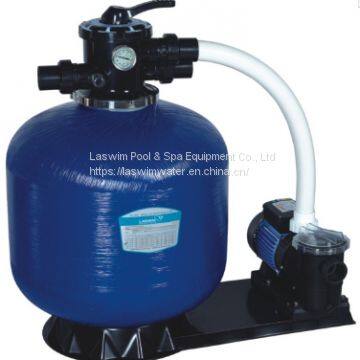

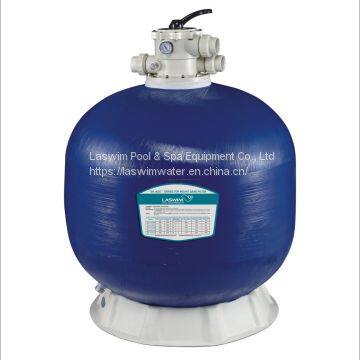

Help CenterBobbin Wound Sand Filter (Top-mount)
Related Products
-
Plastic Sand Filter (Top-mount)US$ 45 - 102MOQ: 1 Piece -
Plastic Sand Filter (Side-mount)US$ 66 - 111MOQ: 1 Piece
-
Fiberglass Sand Filter (Side-mount)US$ 77 - 130MOQ: 1 Piece
-
Economical Salt Chlorinator for Swimming PoolUS$ 138 - 215MOQ: 1 Piece
-
Hot Sales Salt Chlorinator for Swimming PoolUS$ 270 - 365MOQ: 1 Piece
Features:

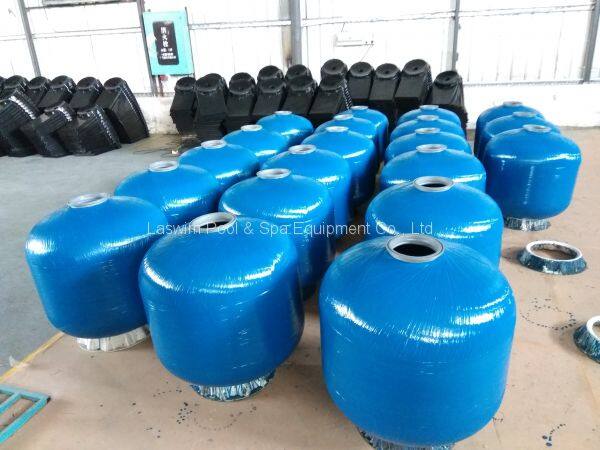

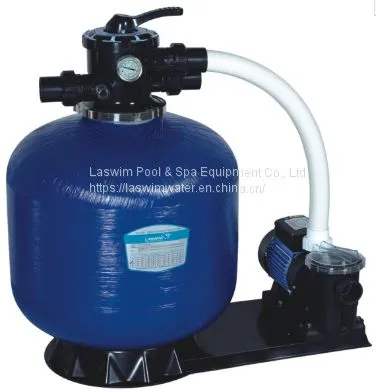

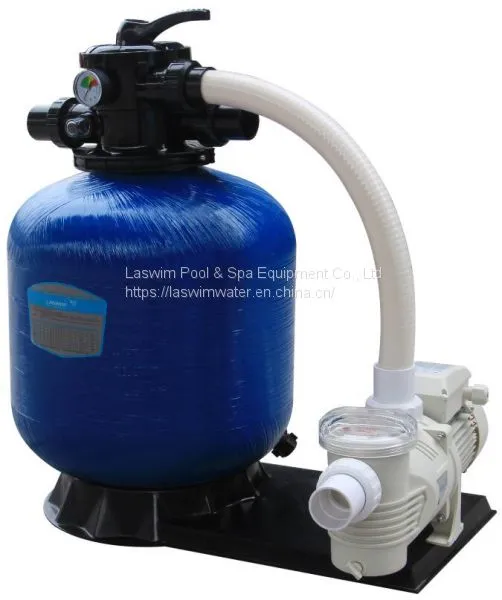

Top mount sand filter are built to be tough, longer lasting and better performing. Constructed of polyester resin and non-corrosive fiberglass filament winding, all internal components and connections are injection molded PVC. They produce more filtered water with less pump horsepower. UV-resistance surfaces allows working under sunshine. Easy-to-use six position valve makes you selection of the valve/filter operation in a proper way.
Advantage:
Meet NSF certificate requirement

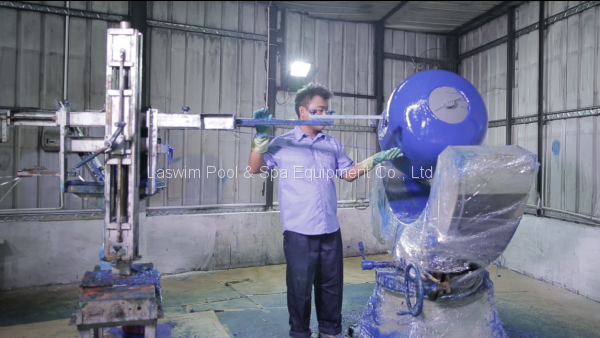

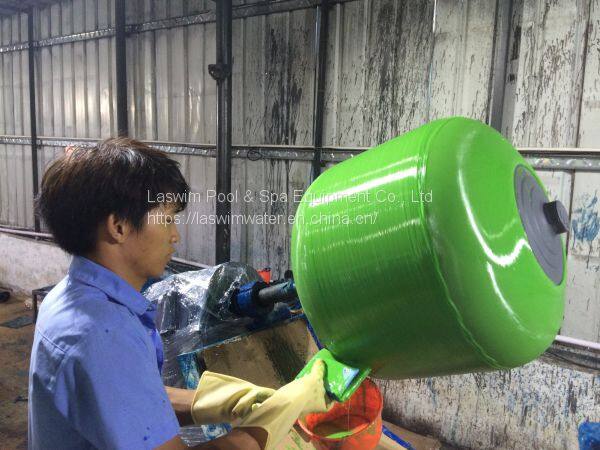

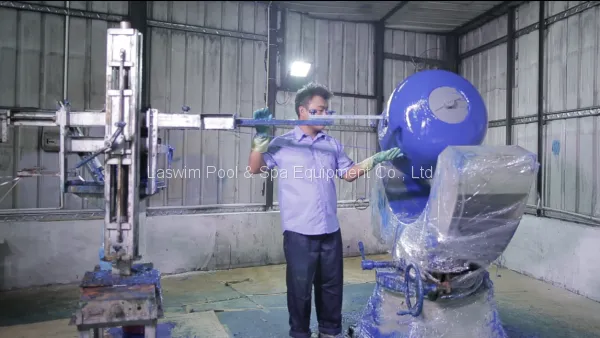

All-new Crossover Bobbin Winding Technology
Every one approves 36psi/2.5bar as maximum working pressure, burst pressure testing over 80psi/5.6bar
UV resistant and anti-corrosive
Reduce waste of water and chemical consumption
Special drainage, to easy draining of the tank, easy to maintain and ice-free in winter
Pressure gauge makes it eaasier to examine and maintain.
Air relief bolt enables easy release of trapped air during operation of the filter.
Model |
Dia. (mm) |
Connection |
Filter area (㎡) |
Design flow (m³/h) |
0.5-0.8mm sand weight |
WL-ADG350 |
Ø350 |
1.5” |
0.10 |
4.5 |
25kg |
WL-ADG400 |
Ø410 |
1.5” |
0.13 |
6.5 |
34kg |
WL-ADG450 |
Ø450 |
1.5” |
0.16 |
8.00 |
50kg |
WL-ADG500 |
Ø535 |
1.5” |
0.23 |
11.50 |
80kg |
WL-ADG650 |
Ø635 |
1.5” |
0.32 |
16.00 |
160kg |
WL-ADG700 |
Ø710 |
1.5” |
0.40 |
20.00 |
220kg |

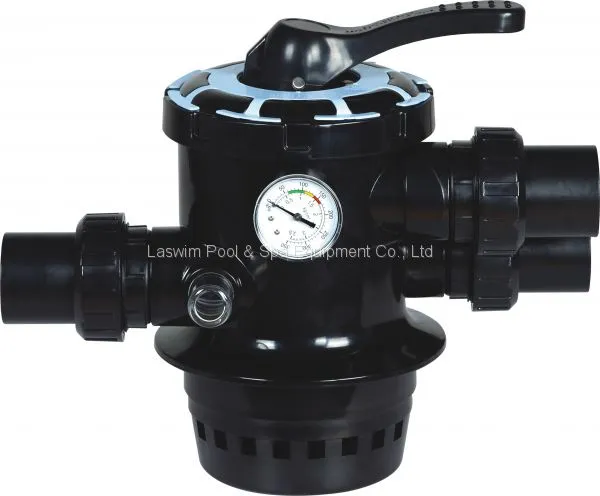

Multiport valve main parts:
-FILTER(Normal filtration and vacuuming).
-BACKWASH(Clean filter by reversing the flow).
-RINSE(Used after backwash to flush dirt from valve).
-WASTE(By-passes filter, used for vacuuming to waste or lowering water level).
-RECIRCULATING(By-passes filter for circulation water to pool).
-CLOSE.
