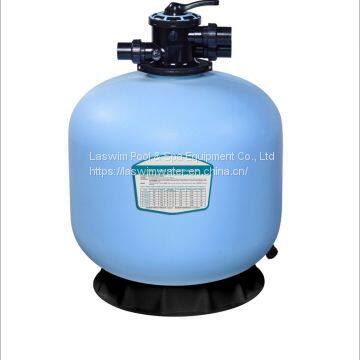

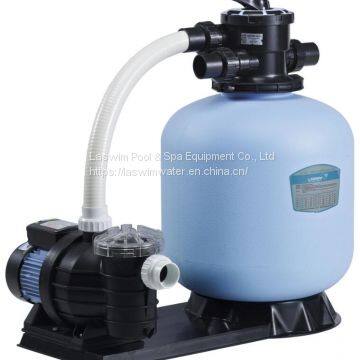

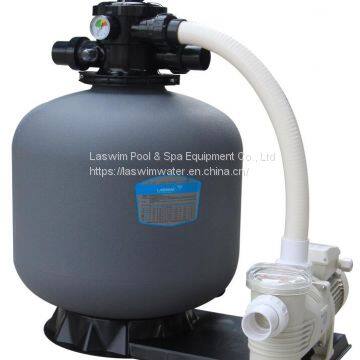

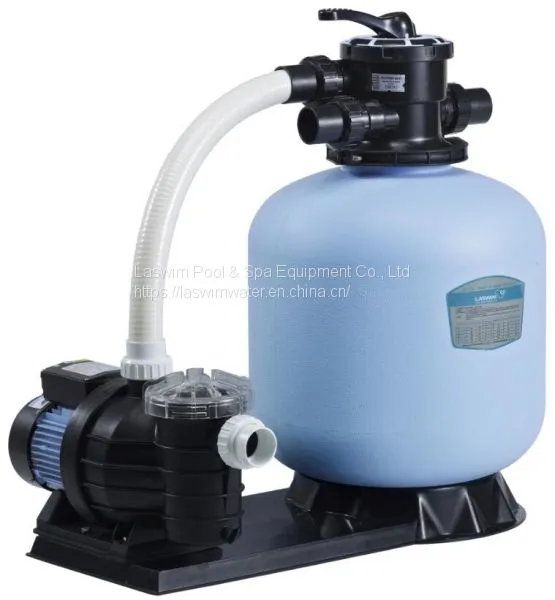

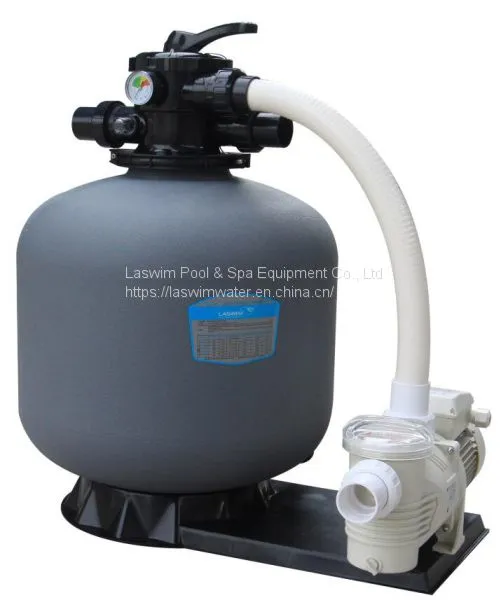

Help CenterPlastic Sand Filter (Top-mount)
Related Products
-
Plastic Sand Filter (Side-mount)US$ 66 - 111MOQ: 1 Piece -
Fiberglass Sand Filter (Side-mount)US$ 77 - 130MOQ: 1 Piece
-
Bobbin Wound Sand Filter (Top-mount)US$ 55 - 116MOQ: 1 Piece
-
Economical Salt Chlorinator for Swimming PoolUS$ 138 - 215MOQ: 1 Piece
-
Hot Sales Salt Chlorinator for Swimming PoolUS$ 270 - 365MOQ: 1 Piece
Features and benefits:
-Made of high density polyethylene material, corrosive-proof, safe and environmental
-Unitized thermal plastic filter tank tough, durable and suitable for many different weather condition.
-Easy-to-use multiport valve lets you select any of the valve/filter operation with a simple lever-action.
-Clamp lock is designed to allow 360 degree rotation to simplify installation.
-Compact and save space.
- These sand filters are applicable in all types of pool, SPA, fountain and aquarium.
Model |
Dia. (mm) |
Connection |
Filter area (㎡) |
Design flow (m³/h) |
0.5-0.8mm sand weight |
P-DG350 |
Ø350 |
1.5” |
0.10 |
4.5 |
25kg |
P-DG400 |
Ø410 |
1.5” |
0.13 |
6.5 |
34kg |
P-DG450 |
Ø450 |
1.5” |
0.16 |
8.00 |
50kg |
P-DG500 |
Ø535 |
1.5” |
0.23 |
11.50 |
80kg |
P-DG650 |
Ø635 |
1.5” |
0.32 |
16.00 |
160kg |
P-DG700 |
Ø710 |
1.5” |
0.40 |
20.00 |
220kg |

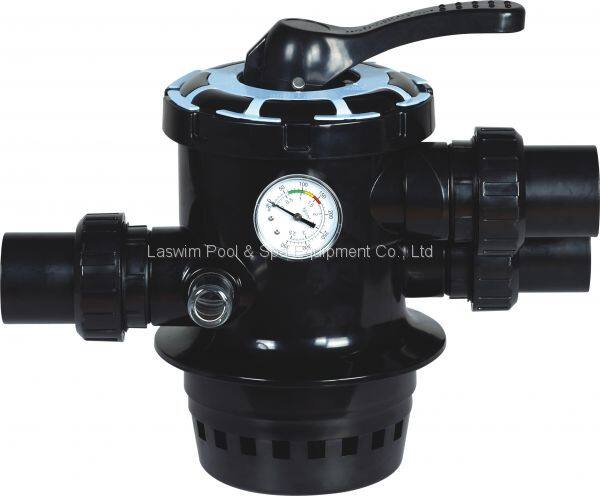

Multiport valve main parts:
*Easy-to-use six -position valve makes the selection of the valve/filter simple.
*Filter(Normal filtration and vacuuming).
*Backwash(Clean filter by reversing the flow).
*Rinse(Used after backwash to flush dirt from valve).
*Waste(By-passes filter ,used for vacuuming to wash or lowering water level).
*Recirculate(By-passes filter for circulation water to pool).
*Closed
