Features:

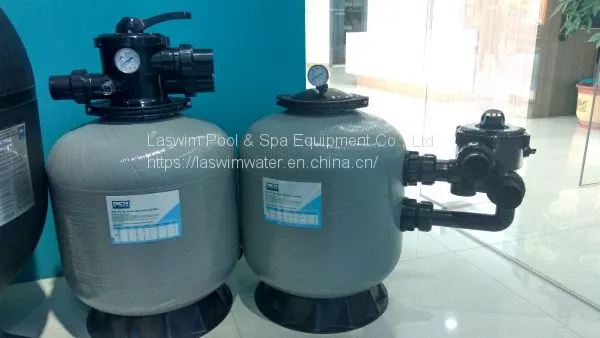

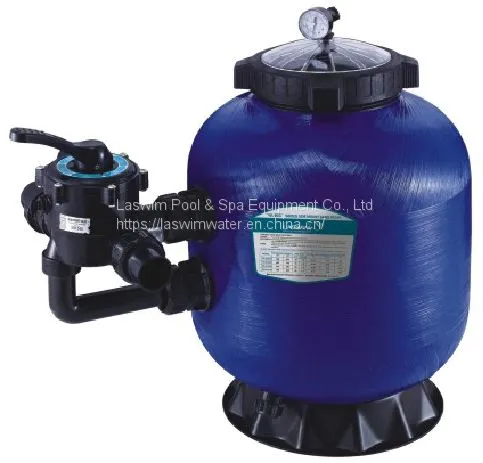

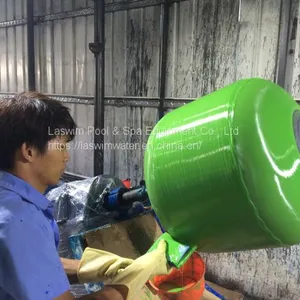

Side mount sand filter are built to be tought, longer lasting and better performing. Constructed of polyester resin and non-corrosive fiberglass filament winding, all internal components and connections are injection molded PVC. They produce more filtered water with less pump horsepower. UV-resistance surfaces allows working under sunshine. Easy-to-use six position valve makes you selection of the valve/filter operation in a proper way.
Advantage:
Meet NSF certificate requirement
All-new Crossover Bobbin Winding Technology
Every one approves 36psi/2.5bar as maximum working pressure, burst pressure testing over 80psi/5.6bar
UV resistant and anti-corrosive
Reduce waste of water and chemical consumption
Special drainage, to easy draining of the tank, easy to maintain and ice-free in winter
Pressure gauge makes it eaasier to examine and maintain.
Air relief bolt enables easy release of trapped air during operation of the filter.
Model | Dia. (mm) | Connection | Filter area (㎡) | Design flow (m³/h) | 0.5-0.8mm sand weight |
WL-BCG450 | Ø450 | 1.5” | 0.16 | 8.00 | 50kg |
WL-BCG500 | Ø535 | 1.5” | 0.23 | 11.50 | 80kg |
WL-BCG650 | Ø635 | 1.5” | 0.32 | 16.00 | 160kg |
WL-BCG700 | Ø710 | 1.5” | 0.40 | 20.00 | 220kg |
Multiport valve main parts:
FILTER(Normal filtration and vacuuming).
BACKWASH(Clean filter by reversing the flow).
RINSE(Used after backwash to flush dirt from valve).
WASTE(By-passes filter, used for vacuuming to waste or lowering water level).
RECIRCULATING(By-passes filter for circulation water to pool).
CLOSE.
