Help CenterPlastic Sand Filter (Side-mount)
Related Products
-
Fiberglass Sand Filter (Side-mount)US$ 77 - 130MOQ: 1 Piece -
Bobbin Wound Sand Filter (Top-mount)US$ 55 - 116MOQ: 1 Piece
-
Plastic Sand Filter (Top-mount)US$ 45 - 102MOQ: 1 Piece
-
Economical Salt Chlorinator for Swimming PoolUS$ 138 - 215MOQ: 1 Piece
-
Hot Sales Salt Chlorinator for Swimming PoolUS$ 270 - 365MOQ: 1 Piece
Features and benefits:
-Made of high density polyethylene material, corrosive-proof, safe and environmental
-Unitized thermal plastic filter tank tough, durable and suitable for many different weather condition.
-Easy-to-use multiport valve lets you select any of the valve/filter operation with a simple lever-action.
-Clamp lock is designed to allow 360 degree rotation to simplify installation.
-Compact and save space.
- These sand filters are applicable in all types of pool, SPA, fountain and aquarium.
Model | Dia. (mm) | Connection | Filter area (㎡) | Design flow (m³/h) | 0.5-0.8mm sand weight |
P-CG450 | Ø450 | 1.5” | 0.16 | 8.00 | 50kg |
P-CG500 | Ø535 | 1.5” | 0.23 | 11.50 | 80kg |
P-CG650 | Ø635 | 1.5” | 0.32 | 16.00 | 160kg |
P-CG700 | Ø710 | 1.5” | 0.40 | 20.00 | 220kg |

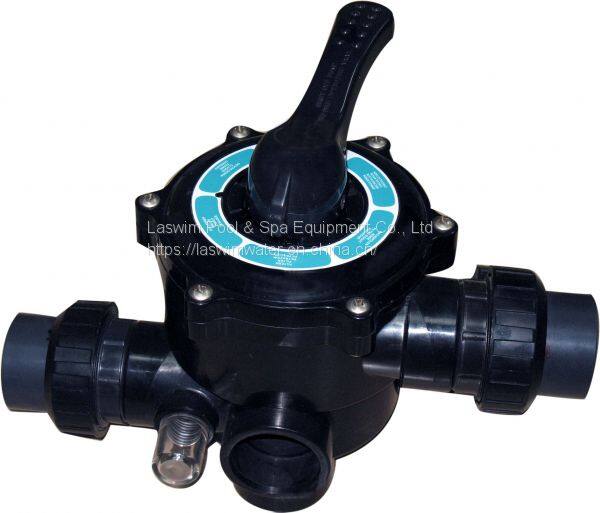

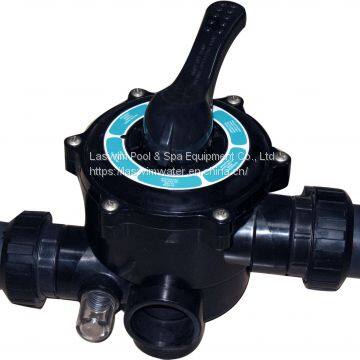

Multiport valve main parts:
*Easy-to-use six -position valve makes the selection of the valve/filter simple.
*Filter(Normal filtration and vacuuming).
*Backwash(Clean filter by reversing the flow).
*Rinse(Used after backwash to flush dirt from valve).
*Waste(By-passes filter ,used for vacuuming to wash or lowering water level).
*Recirculate(By-passes filter for circulation water to pool).
*Closed
