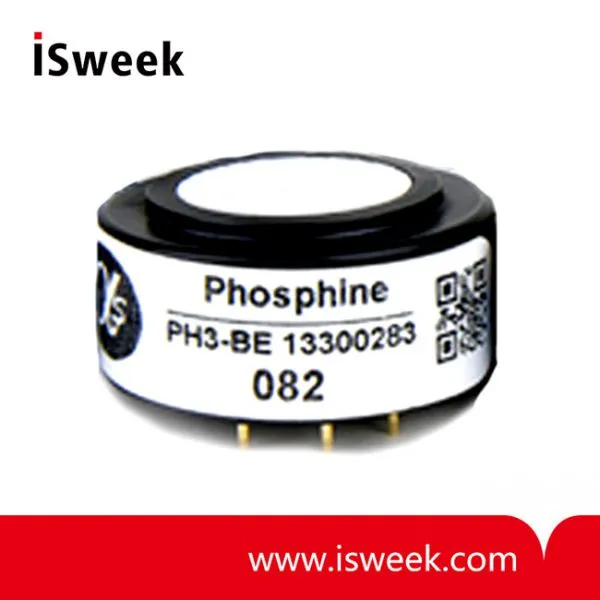

Help CenterPH3-BE Phosphine Sensor (PH3 Sensor)
US$ 60 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Alphasense
Place of Origin:
United Kingdom
Model Number:
PH3-BE
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NO2-AE High Concentration Nitrogen Dioxide Sensor (NO2 Sensor)US$ 60 - 100MOQ: 1 Piece -
RESP_IRR_20 C 15x15 Respiratory Irritant Sensor 20 Ppm C Package 110-902US$ 30 - 50MOQ: 1 Piece
-
MTCS2601 Thermal Conductivity Sensor for Leak or Pressure DetectionUS$ 0.01 - 0.1MOQ: 1 Piece
-
NO2-B1 Nitrogen Dioxide Sensor (NO2 Sensor)US$ 50 - 80MOQ: 1 Piece
-
NO-A4 Nitric Oxide Sensor (NO Sensor) 4-ElectrodeUS$ 70 - 100MOQ: 1 Piece
Brand Name
Alphasense
Place of Origin
United Kingdom
Model Number
PH3-BE
Usage
Gas Sensor
Theory
Other, Electrochemical Gas Sensor
Output
Analog Sensor
PH3-BE Phosphine Sensor PH3 Sensor Description
Alphasense is expanding its line of electrochemical toxic gas sensors to address industry-specific requirements, including emissions monitoring, process safety, environmental monitoring and VOCs.
Phosphine (PH3)
Our Phosphine sensors cover all hydrides: Silane (SiH4), Diborane (B2H6), Germane (GeH4) and Phosphine (PH3) for the semiconductor industry.
We have also introduced the PH3-BE sensor specifically for food storage where higher concentrations of Phosphine are encountered.
| PH3-BE Phosphine Sensor PH3 Sensor PERFORMANCE | ||
| Sensitivity |
nA/ppm in 800 PH3 |
15 to 35 |
| Response time |
t90 (s) from zero to 800 PH3 |
|
| Zero current |
ppm equivalent in zero air |
|
| Resolution |
RMS noise (ppm equivalent) |
|
| Range |
ppm PH3 limit of performance warranty |
2,000 |
| Linearity |
ppm error at full scale, linear at zero, 800ppm PH3 |
-50 to -350 |
| Overgas limit |
maximum ppm for stable response to gas pulse |
5,000 |
| PH3-BE Phosphine Sensor PH3 Sensor LIFETIME | ||
| Zero drift |
ppm equivalent change/year in lab air |
|
| Sensitivity drift |
% change/year in lab air, monthly test |
|
| Operating life |
months until 80% original signal (24 month warranted) |
> 24 |
| PH3-BE Phosphine Sensor PH3 Sensor ENVIRONMENTAL | ||
| Sensitivity @ -20°C |
% (output @ -20°C/output @ 20°C) @ 800 ppm PH3 |
65 to 85 |
| Sensitivity @ 50°C |
% (output @ 50°C/output @ 20°C) @ 800 ppm PH3 |
120 to 140 |
| Zero @ -20°C |
ppm equivalent change from 20°C |
|
| Zero @ 50°C |
ppm equivalent change from 20°C |
|
| PH3-BE Phosphine Sensor PH3 Sensor CROSS SENSITIVITY | ||
| H2S sensitivity |
% meaured gas @ 20 ppm H2S |
|
| NO2 sensitivity |
% meaured gas @ 10 ppm NO2 |
|
| CL2 sensitivity |
% meaured gas @ 10 ppm Cl2 |
|
| NO sensitivity |
% meaured gas @ 50 ppm NO |
|
| SO2 sensitivity |
% meaured gas @ 20 ppm SO2 |
|
| CO sensitivity |
% meaured gas @ 400 ppm CO |
|
| H2 sensitivity |
% meaured gas @ 400 ppm H2 |
|
| C2H4 sensitivity |
% meaured gas @ 80 ppm C2H4 |
|
| NH3 sensitivity |
% meaured gas @ 25 ppm NH3 |
|
| CO2 sensitivity |
% meaured gas @ 5% CO2 |
|
| PH3-BE Phosphine Sensor PH3 Sensor KEY SPECIFICATIONS | ||
| Temperature range |
°C |
-20 to 50 |
| Pressure range |
kPa |
80 to 120 |
| Humidity range |
% rh continuous |
20 to 90 |
| Storage period |
months @ 0 to 20℃ (stored in original container) |
6 |
| Load resistor |
Ω (recommended) |
10 to 33 |
| Bias voltage |
mV above analogue ground |
not required |
| Weight |
g |
|
Matched Transmitter board for PH3-BE PH3 Sensor
4-20mA Digital Transmitter Board
• Factory calibration, custom-set for immediate use
• Digital zero, sensitivity and temperature compensation
• Digital and 4-20mA output
• Biased or unbiased operation
• Calibration and range change
