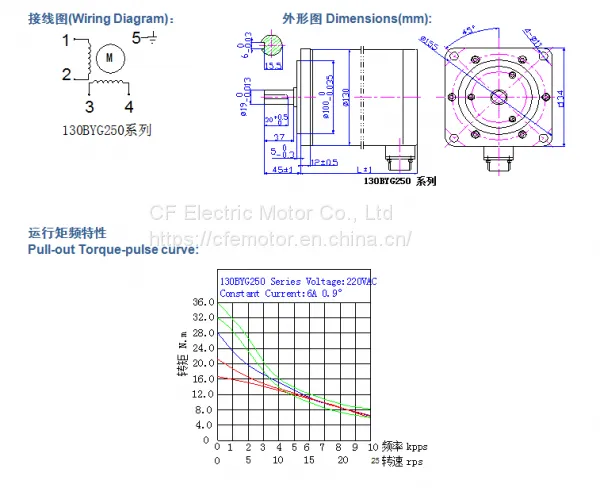

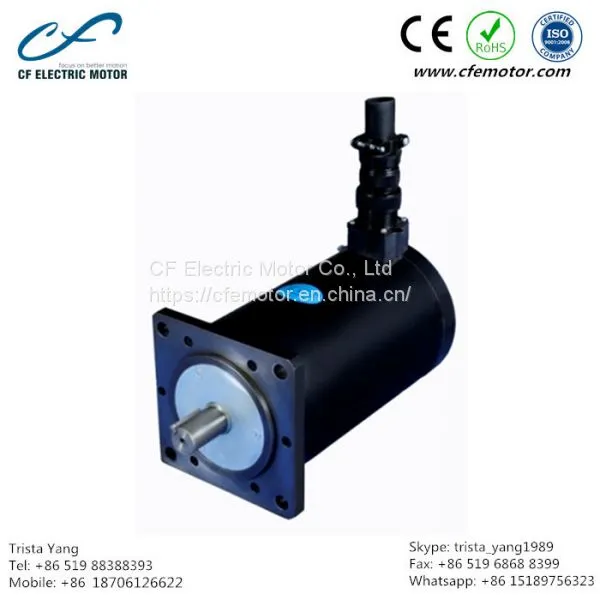

130BYG250A-01 Hybrid Stepper/Stepping Motor
General Specifications:
Step Angle ---------------------------------------------------------- 1.8° (Full step)
Step Accuracy ------------------------------------------±5%(Full step, no load)
Phase Resistance Accuracy -----------------------------------------------±10%
Phase Inductance Accuracy -----------------------------------------------±20%
Temperature Rise -----------------80℃ Max (Rated Current, 2phase on)
Ambient Temperature Range --------------------------------- -20℃∽+50℃
Insulation Resistance --------------------------------- 100MΩ Min. 500VDC
Dielectric Strength --------------------------------1000VAC 50Hz 1mA 1min
Insulation Class--------------------------------------------------- F grade(155℃)
Electrical Specifications:
Model |
L Motor Length (mm) |
Holding Torque (N.m) Min. |
Rated Voltage （V） |
Current (A) |
Phase Resistance (Ω) |
Phase Inductance (mH) |
Rotor Inertia (kg.cm²) |
Lead Wire |
Detent Torque (N. m) Max. |
Motor Weight (kg) |
|
130BYG250A-01 |
225 |
35 |
80-325 |
6 |
0.75 |
10.7 |
35 |
4 |
1.2 |
17 |
|
Above is the normal specification product, if you want customized products such as speed reduce, brake, water proof, anti-high temperature, please discuss more details with us.
