110BYG250B Hybrid Stepper Motor 2Phase 18N.m 80-200V 6A Stepping Motion

110BYG250B Hybrid Stepper Motor 2Phase 18N.m 80-200V 6A Stepping Motion thumbnail-1
110BYG250B Hybrid Stepper Motor 2Phase 18N.m 80-200V 6A Stepping Motion photo-1
US$ 1 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
THANK (CHANGFENG)
Place of Origin:
China
Model Number:
110BYG250B
Contact Supplier Request Quote Chat Now
CF Electric Motor Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI PORT, CHANGZHOU PORT
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name THANK (CHANGFENG)
Place of Origin China
Model Number 110BYG250B
Type Hybrid
Phase 2
Certification CE, ISO, ROHS
Current / Phase 6A/2 phase
Holding Torque 18N.m
Step Angle(degrees) 1.8°/0.9°

110BYG250B Hybrid Stepper/Stepping Motor

General Specifications:

Step Angle ---------------------------------------------------------- 1.8° (Full step)

Step Accuracy ------------------------------------------±5%(Full step, no load)

Phase Resistance Accuracy -----------------------------------------------±10%

Phase Inductance Accuracy -----------------------------------------------±20%

Temperature Rise -----------------80℃ Max (Rated Current, 2phase on)

Ambient Temperature Range ---------------------------------  -20℃∽+50℃

Insulation Resistance ---------------------------------  100MΩ Min. 500VDC

Dielectric Strength --------------------------------950VAC 50Hz 1mA 1min

Insulation Class--------------------------------------------------- F grade(155℃)

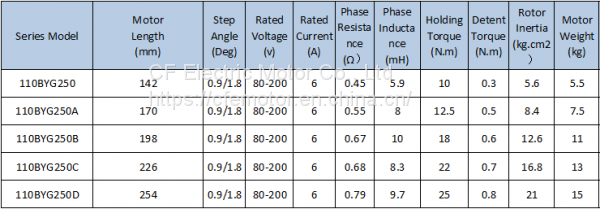

Electrical Specifications:

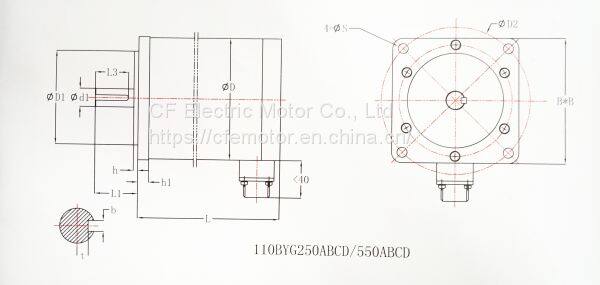

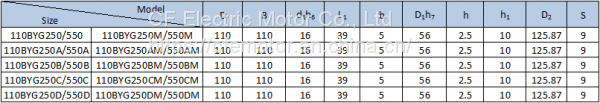

Dimensions:

Above is the normal specification product, if you want customized products such as speed reduce, brake, water proof, anti-high temperature, please discuss more details with us.
