Home > Products > Hybrid stepper motor > 110BYG250D Hybrid Stepper Motor 2Phase 25N.m 80-200V 6A Stepping Motion

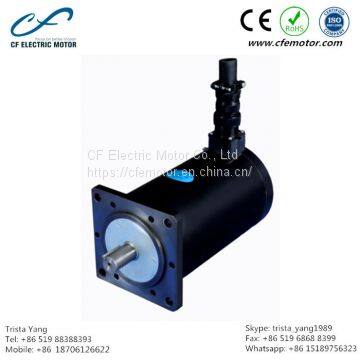

110BYG250D Hybrid Stepper Motor 2Phase 25N.m 80-200V 6A Stepping Motion
- 30000 Piece / Pieces per Month
- SHANGHAI PORT, CHANGZHOU PORT
- T/T L/C PayPal
- 7 days
You May Like
-
CHANGFENG THANK 300W Toroidal Transformer CFBOD300W-55V 220V to55VAC 100% Copper Wire 4.5A
-
3 Phase NEMA42 110mm Series 20nm Step/Stepping/Stepper Motor
-
3 Phase NEMA42 16n. M Step/Stepping/Stepper Motor and Driver CF31022mh Unit
-
3 Phase NEMA42 110mm Size Easy Servo/Open Loop Kit Step/Steping/Stepper Motor and Driver
-
Customized NEMA23 NEMA34 Lead Screw Step/Stepping/Stepper Motor
-
NEMA23 57mm 2 Phase 23HS 23hm 45mm Hybrid Step/Stepping/Stepper Motor with CF2045m Stepper Driver
Product Details
| Brand Name | THANK (CHANGFENG) | Place of Origin | China | |
| Model Number | 110BYG250D | Type | Hybrid | |
| Phase | 2 | Certification | CE, ISO, ROHS | |
| Current / Phase | 6A/2 phase | Holding Torque | 25N.m | |
| Step Angle(degrees) | 1.8°/0.9° |
Product Description
110BYG250D Hybrid Stepper/Stepping Motor
General Specifications:
Step Angle ---------------------------------------------------------- 1.8° (Full step)
Step Accuracy ------------------------------------------±5%(Full step, no load)
Phase Resistance Accuracy -----------------------------------------------±10%
Phase Inductance Accuracy -----------------------------------------------±20%
Temperature Rise -----------------80℃ Max (Rated Current, 2phase on)
Ambient Temperature Range --------------------------------- -20℃∽+50℃
Insulation Resistance --------------------------------- 100MΩ Min. 500VDC
Dielectric Strength --------------------------------950VAC 50Hz 1mA 1min
Insulation Class--------------------------------------------------- F grade(155℃)
Electrical Specifications:
Dimensions:
Above is the normal specification product, if you want customized products such as speed reduce, brake, water proof, anti-high temperature, please discuss more details with us.
