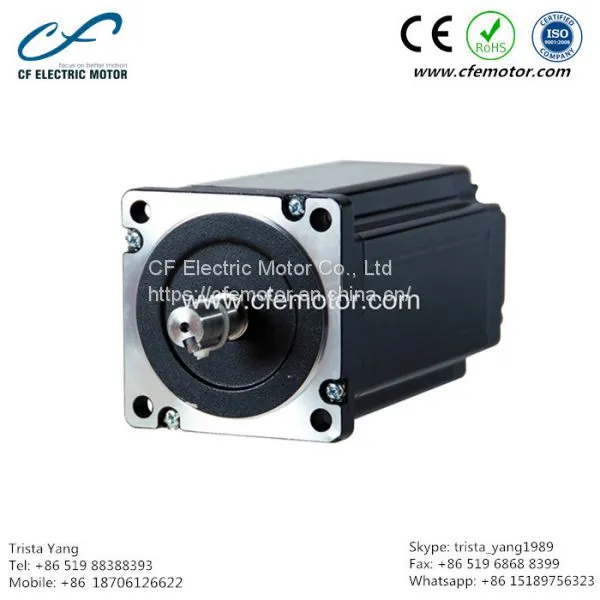

34HT15040 Hybrid Stepping Motor 0.9N.m 4A Stepper Motor
US$ 40 - 70
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
THANK三科
Place of Origin:
China
Model Number:
34HT15040
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI PORT, CHANGZHOU PORT
Delivery Detail:
7 days
Related Products
-
3 Phase 118mm 0.6N.m Hybrid Stepper Motor 34HT11840 Stepping MotorUS$ 50 - 60MOQ: 1 Piece -
Nema34 Changfeng THANK 2 Phase 1.8° Hybrid Stepping Motor 86BYG250A 2.4N.m Stepper MotorUS$ 20.05 - 25.5MOQ: 1 Set
-
THANK 90BYG250ABCD Hybrid Stepper Motor 2Phase 2.5 5.0 7.5 10.0N.m 4A 40-110VDC Hybrid Stepping MotionUS$ 1 - 10MOQ: 1 Piece
-
THANK 90BYG350ABCD Hybrid Stepper Motor 3Phase 2.26 4.52 6.78 9.04N.m 3A 24-150VDC Hybrid Stepping MotionUS$ 1 - 10MOQ: 1 Piece
-
THANK 90BYG550ABCD Hybrid Stepper Motor 5Phase 2.2 4.4 6.6 8.8N.m 3A 50VDC Hybrid Stepping MotionUS$ 1 - 10MOQ: 1 Piece
Brand Name
THANK三科
Place of Origin
China
Model Number
34HT15040
Type
Hybrid
Phase
3
Certification
CE, ISO, ROHS
Current / Phase
4.0A
Holding Torque
0.9N.m
Step Angle(degrees)
1.2degree
Hybrid stepping Motor 34HT15040 Step Angle: 1.2° (full step)Step Angle Accuracy: +/-5% (full step, no load)Resistance Accuracy :+/- 10%Inductance Accuracy: +/-20%Temperature Rise: 80℃ Max(rated current, 2 phases on) Ambient Temperature Range:-20℃- +50℃Dielectric Strength: 500VAC 50Hz 1mA 1MinuteInsulation Resistance: 100MΩ Min.500VDCInsulation Class: B class

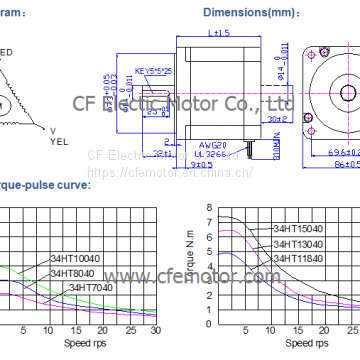

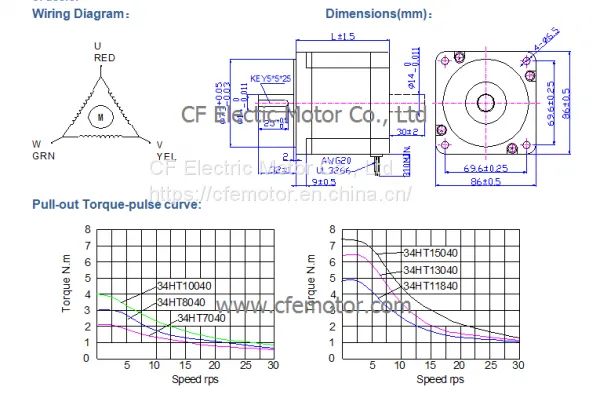

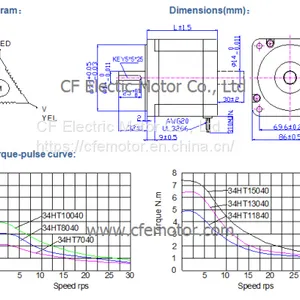

Shaft type: 1) Plain shaft2) single shaft3) Two shaft4) Key Shaft Wiring Diagram:
| Model | LMotorLength (mm) | HoldingTorque(N.m) Min. | RatedCurrent(A) | PhaseResistace(Ω) | Phase Inductance (mH) | RotorInertia (kg.cm2) | Lead Wire | Detent Torque (N.cm) Max. | Motor Weight (kg) |
| 34HT15040 | 150 | 0.9 | 4.0 | 2.35 | 19 | 5.0 | 3 | 45 | 5.5 |
