Home > Products > Hybrid stepper motor > THANK 90BYG350ABCD Hybrid Stepper Motor 3Phase 2.26 4.52 6.78 9.04N.m 3A 24-150VDC Hybrid stepping motion
THANK 90BYG350ABCD Hybrid Stepper Motor 3Phase 2.26 4.52 6.78 9.04N.m 3A 24-150VDC Hybrid stepping motion
- 30000 Piece / Pieces per Month
- SHANGHAI PORT, CHANGZHOU PORT
- T/T L/C PayPal
- 7 days
-
3 Phase 42mm 1.2 Degree Stepper Motor High Torque Stepper Motor
-
Nema 52 130mm Hybrid Stepper Motor High Torque
-
Nema42 30Nm 110mm Frame Size 2 Phase Hybrid Stepper Motor
-
85mm 2 Phase Hybrid Stepper Motor Nema 34 Engraving Machine
-
Nema24 60mm Stepper Motor 1.8 Degree Angle Small Torque
-
Round 57 High Torque Low Inertia Stepper Motor ISO9001
Product Details
| Brand Name: | THANK (CHANGFENG) | Place of Origin: | China | Model Number: | 90BYG350A/B/C/D |
| Type: | Hybrid | Phase: | 3 | Certification: | CE, ISO, ROHS |
| Current / Phase: | 3A/3 phase | Holding Torque: | 350A: 2.26N.m; 350B: 4.52N.m; 350C: 6.78N.m; 350D: 9.04N.m | Step Angle(degrees): | 1.2°/0.6° |
Product Description

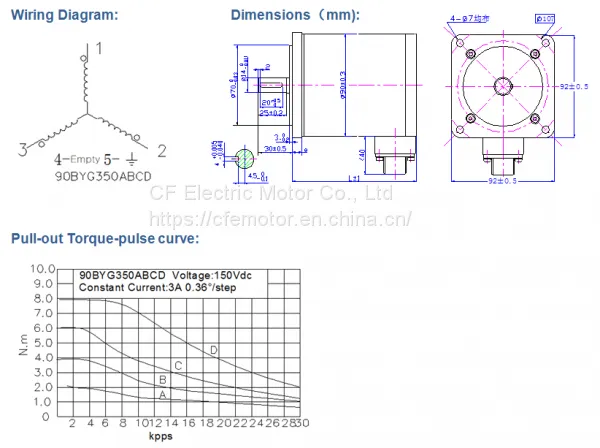

Hybrid Stepping Motor 90BYG350 Series
General Specifications:
Step Angle ------------------------------------------------------------------------ 1.2°(full step)
Step Angle Accuracy -------------------------------------------------±5%(full step, no load)
Resistance Accuracy ----------------------------------------------------------------------±10%
Inductance Accuracy ----------------------------------------------------------------------±20%
Temperature Rise ----------------------------------80℃ Max (rated current, 2 phase on)
Ambient Temperature Range ---------------------------------------------- -20℃∽+50℃
Insulation Resistance ---------------------------------------------- 100MΩ Min. 500VDC
Dielectric Strength -------------------------------------------------750VAC 50Hz 1mA 1min
Insulation Class--------------------------------------------------------------F class（155℃）
Rotation ----------------------------------------------------------------- CW(see from flange)
Electrical Specifications:
Model | No. of phase | L Motor Length (mm) | Holding Torque (N.m) Min. | Rated Voltage （VDC) | Rated Current (A) | Rated Resistance (Ω) | Phase Inductance (mH) | Motor Weight (kg) |
90BYG350A | 3 | 75 | 2.26 | 24-150 | 3 | 0.6 | 3.5 | 2.5 |
90BYG350B | 3 | 105 | 4.52 | 24-150 | 3 | 1.15 | 7.0 | 4.0 |
90BYG350C | 3 | 135 | 6.78 | 24-150 | 3 | 1.7 | 10.5 | 5.5 |
90BYG350D | 3 | 165 | 9.04 | 24-150 | 3 | 2.2 | 14 | 7.0 |
