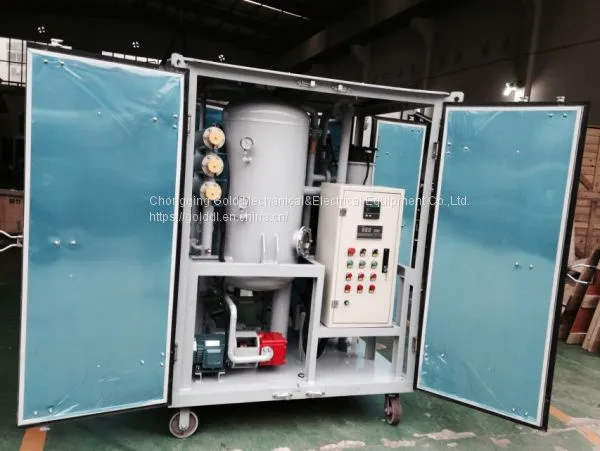

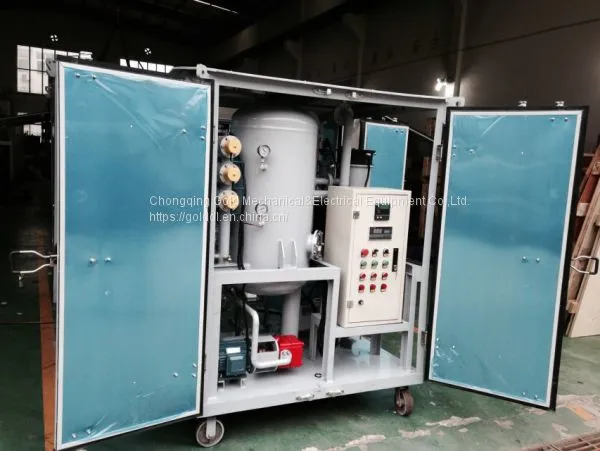

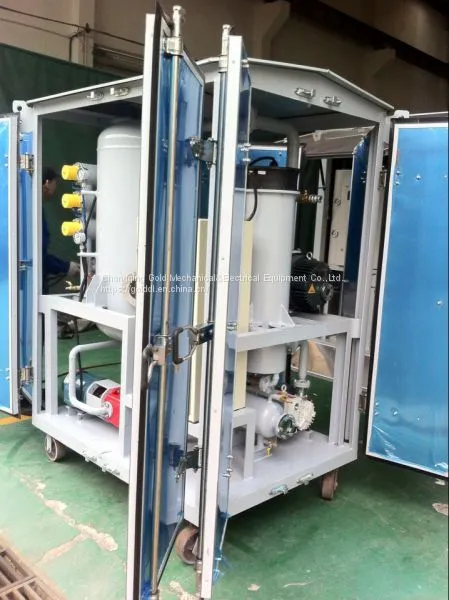

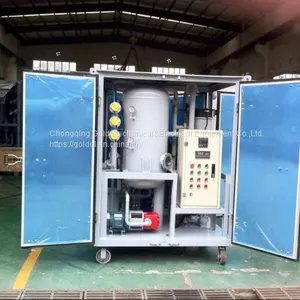

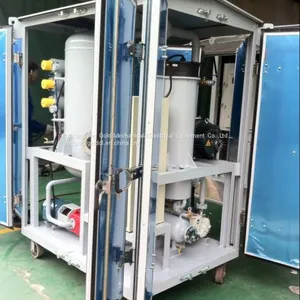

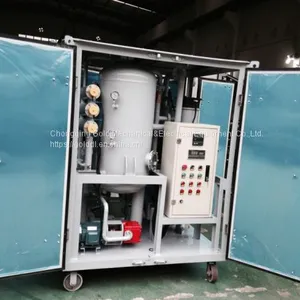

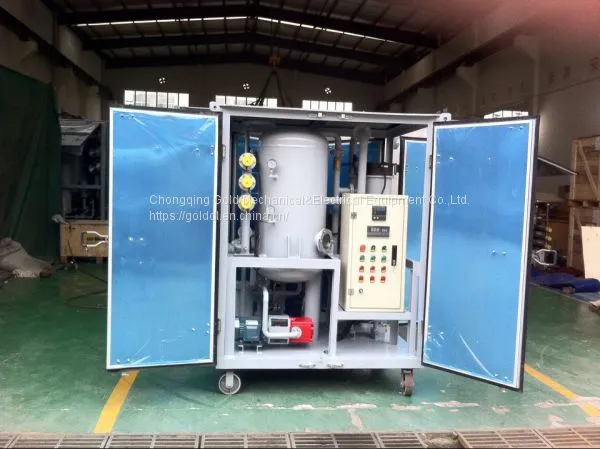

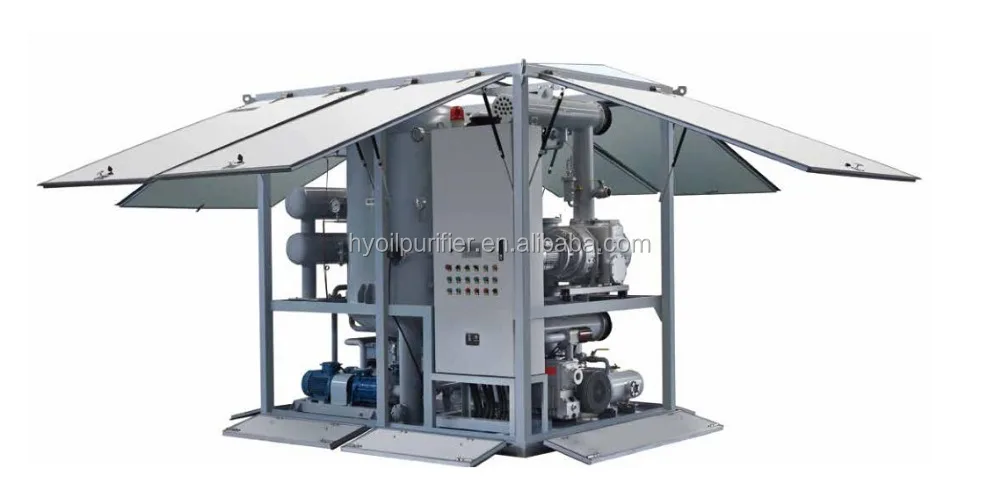

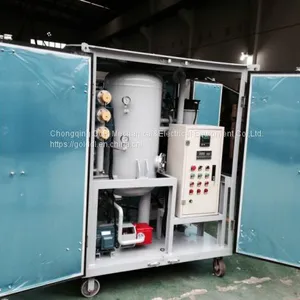

Help CenterZJA Double-stage High Vacuum Transformer Oil Filtration Machine
Related Products
-
ZJA Double-stage Vacuum Transformer Oil Recycling EquipmentUS$ 3 - 8MOQ: 1 Set -
GF Compressed Dry Air Generator Used for Transformer SubstaionUS$ 3 - 8MOQ: 1 Set
-
JZ-0.6BF Online Transformer On-load Tap Changer Oil PurificationUS$ 3 - 8MOQ: 1 Set
-
KYJ High Effecency Fire Resistant Oil Purifier,vacuum Oil FiltrationUS$ 3 - 8MOQ: 1 Set
-
ZJC-T Turbine Lubricant Oil Purifier, Used Oil Recycling PlantUS$ 3 - 8MOQ: 1 Set
I Brief Introduction
ZJA series used insulating oil purifying machine / waste transformer oil purifying machine is mainly used to improve the properties of transformer oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system.ZJA series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
II Characteristics
1. ZJA series used insulating oil purifying machine / waste transformer oil purifying machine has one pot with two-stage vacuum-segregating space, it come into being different pressure so as to keep oil line balance between two stages.
2. The pump of this product is adopted vacuum-pump imported from Europe, which have preceding level in the world, and with high air pump speed so as to get high working vacuity.
3.As the new technology, vacuum-segregating (Patent No. ZL200420061085.6) employs particular spinning disk and stainless steel machine with dehydration and air pump so that enlarge the area of segregating and coming to three-dimensional evaporation.
4.Using new type of heating equipment (Patent No. ZL02276238.8), it can reduce heating burthen and extend oil life.
5. Oil level control adopt photoelectric way which the main components is imported from Switzerland and have features of sensitive control, exactitude so much as feel the spume of oil, mount the equipment to prevent superhigh and superlow oil level. Spurting oil phenomena is never appeared. (Spurting prevention Patent No. ZL200420060973.6)
6. As the clients requirement, they could choose equipment which their components were all or partly imported from overseas. Include touching screen and flow gauge is can be selected according to customers. This series could meet different kinds of customers need.
7. ZJA series used insulating oil purifying machine / waste transformer oil purifying machine assemblies imported from U.S.A. and it has large filtering area, strongly absorbent-dirt capability, high filtering precision.
8. Whether clients choose the oil pump from domestic or abroad, they all must be airproofed by our factory, moreover running without noise and leakage. extended oil life.
III Main Parameter
Item |
Parameter |
Type Unit |
ZJA1.8KY |
ZJA3KY |
ZJA6KY |
ZJA9KY |
ZJA12KY |
ZJA18KY |
|
Technical parameter |
Flow Rate |
L/H |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
Working Vacuity |
Pa |
≤80 |
|||||||
Working pressure |
Mpa |
≤0.35 |
|||||||
Temperature Range |
45-65 |
||||||||
Power Supply |
50Hz 380V 3-Phase 4-Wire |
||||||||
Total Power |
KW |
18+2.25 |
30+6 |
2X30+6.6 |
3X30+8.2 |
4X30+10 |
5X30+16.5 |
||
Inlet/Outlet Diameter |
mm |
32 / 25 |
38 / 32 |
44 / 38 |
48 / 44 |
64 / 48 |
76 / 64 |
||
Size |
Length |
mm |
1200 |
1500 |
1870 |
1930 |
2160 |
2250 |
|
Width |
mm |
950 |
1150 |
1250 |
1400 |
1600 |
1750 |
||
Height |
mm |
1600 |
2000 |
2200 |
2460 |
2650 |
2650 |
||
Weight |
Kg |
650 |
900 |
1200 |
1600 |
2200 |
3000 |
||
Oil treatment index |
Breakdown Voltage |
KV |
70-75 |
||||||
Water Content |
ppm |
3~5 |
|||||||
Gas Content |
% |
≤0.2 |
|||||||
Filtration accuracy |
µm |
≤1~3 |
|||||||
Our Services:
1. The warranty period is 12 months.
2. We supply repairing parts for product's life time long and technical instruction.( free within the warranty period and charge beyond warranty period).
3.All our products have been run well and have been adjusted to good state before go to market. Operator only need to do as the instruction manual by pulling the buttons and add right amount of additives. If some parts broken, operator just need to remove bolts and change new. Please note: the operation and repair is very simple.
4. When the machine send to your company . You can arrange your engineer to our company to learn operate the machine . We will arrange our engineer to teach your company engineer to operate the whole machine . You only need to pay your engineer to China the air tickets fee , hotel fee and food , It is ok !
5. We also can arrange our engineer to your country. You need to pay the air tickets fee , hotel fee ,food.
