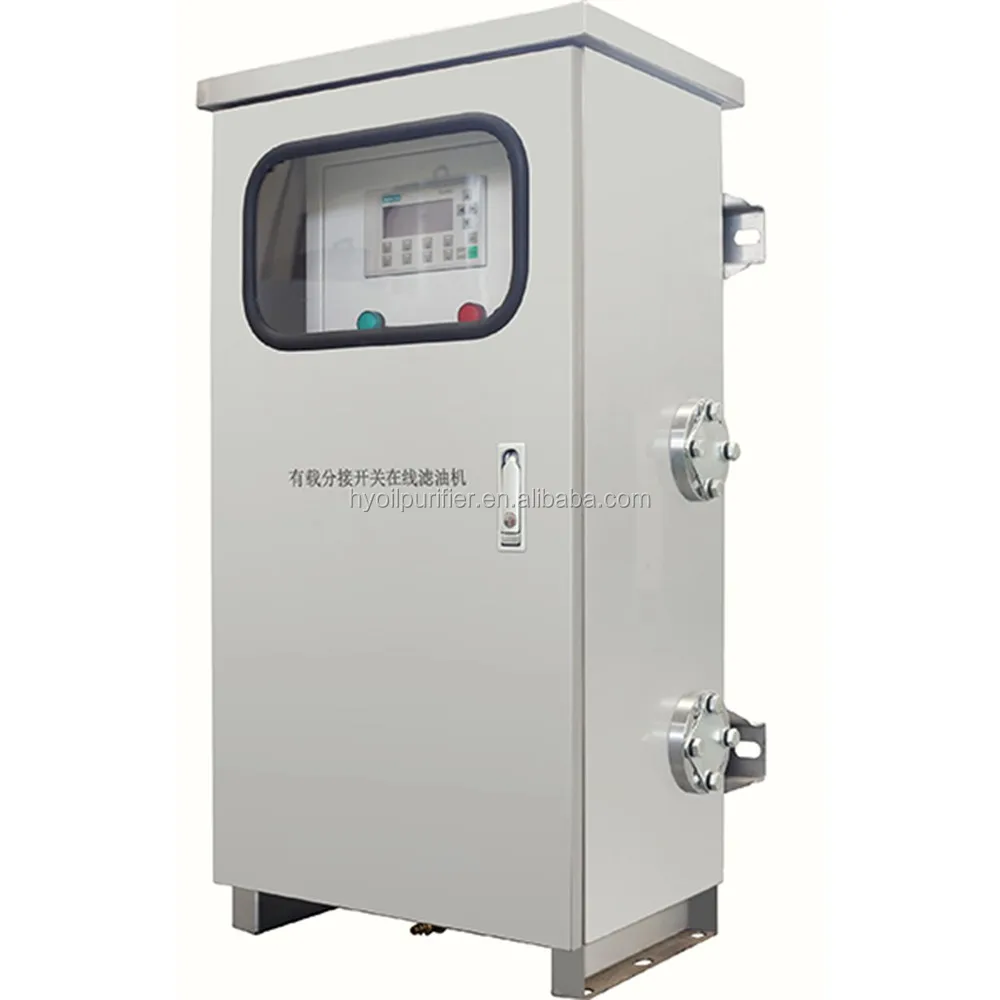

JZ-0.6BF Online Transformer On-load Tap Changer Oil Purification
Product introduction:
1. OLTC transformers regulate the system voltage while the transformer is under energy. They regulate the low and high voltage so they prevent the negative effects of voltage variation.
2. OLTC transformers do not require maintenance for long time by using online oil treatment machine .
3.JZ-0.6BF Series Online On-load Tap Changer Oil Purifier is mainly used to cycle oil from bypass of the transformer and high voltage switch on line. It can remove moisture and tiny particles to keep oil clean and water content, flash point, breakdown voltage, cleanness of the oil will not go worse.
Features:
1. Integrate the function of fineness filtration and dehydration.
2. It can effciently remove dissolved water, and control the water content,flash point and dielectrical strength.
3. It can efficiently remove particles in the oil, so that control the oil cleanness up to Nas 6.
Parameters :
Item |
Name of Parameter |
type / unit |
JZ-0.6BF |
|
Technical Parameter of the equipment |
Nominal flow capacity |
L/min |
10 |
|
Working Pressure |
Mpa |
0.5 |
||
Working power |
KW |
(380V-50Hz)3-Phase 4-Wire (380V-50Hz) |
||
Total electric power |
KW |
0.75 |
||
Diameter of inlet/Outlet hose |
DN |
25/25 |
||
Size |
Length |
cm |
53 |
|
Width |
cm |
35 |
||
Height |
cm |
100 |
||
Weight |
Kg |
100 |
||
Oil treatment index |
Filtering Accuracy |
µm |
1 |
|
Cleanness |
NAS level |
≤6 |
||
