GF Compressed Dry Air Generator Used for Transformer Substaion
US$ 3 - 8
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Gold
Place of Origin:
China
Model Number:
GF
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
30 days
Related Products
-
JZ-0.6BF Online Transformer On-load Tap Changer Oil PurificationUS$ 3 - 8MOQ: 1 Set -
KYJ High Effecency Fire Resistant Oil Purifier,vacuum Oil FiltrationUS$ 3 - 8MOQ: 1 Set
-
ZJC-T Turbine Lubricant Oil Purifier, Used Oil Recycling PlantUS$ 3 - 8MOQ: 1 Set
-
JT On Line Coalescing Dehydration Used Turbine Oil Recycling MachineUS$ 3 - 8MOQ: 1 Set
-
DYJC Online Coalescence and Vacuum Used Engine Oil Recycling MachineUS$ 3 - 8MOQ: 1 Set
Brand Name
Gold
Place of Origin
China
Model Number
GF
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
Weight
900-1050KG
Dimension(L*W*H)
according to diffrent type
Voltage
380V 50HZ 3P (Customizable)
Usage
Other, Dry Air Generator
Condition
New
Power(W)
12-26KW
Working Pressure
0.6-0.8Mpa
Flow
50-200M3/H
Product Description

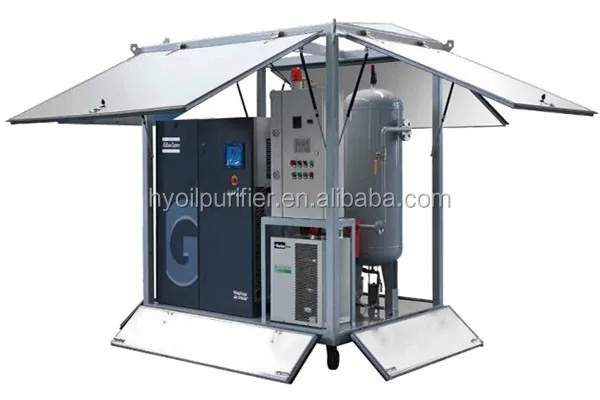

GF Dry Air Generator Used for Transformer Substaion
GF Series Dry Air Generator is suitable for supplying dry air which keeps the power equipments’ inner parts from moisture
in the maintenance of transformer, reactor and other big power facilities. Maintenance staff will not be short of oxygen
working inside the equipment.
The Dry Air Compressor is more reliable, economic, convenient and safer than nitrogen.
Therefore, it can shorten maintenance period and improve the efficiency of maintenance quality!
To guarantee the performance of our equipment, all the main components we use are imported from Europe countries,
such as vacuum pump and fine filter.
Parameters
| Item | Parameters | Unit | GF-60 | GF- 100 | GF- 200 | GF- 360 | GF-480 | |
|
Technical Parameter |
Flow | M³/H | 60 | 100 | 200 | 360 | 480 | |
| Working Pressure | Mpa | 0.6~0.8 | ||||||
| Pressure Drop | Mpa | 0.05 | ||||||
| Noise | dB(A) | |||||||
| Working Power | KW | 380V-50Hz ,3 Phase 4 Wire | ||||||
| Total Power | KW | 17 | 17 | 25 | 48 | 58 | ||
| Size | Length | cm | 230 | 230 | 230 | 320 | 320 | |
| Width | cm | 170 | 170 | 170 | 225 | 225 | ||
| Height | cm | 235 | 235 | 235 | 240 | 240 | ||
| Outlet pipe | DN | 40/50 | 40/50 | 40/50 | 40/50 | 40/50 | ||
| Weight | Kg | 1200 | 1450 | 1600 | 1900 | 2200 | ||
|
After Treatment Index |
Air Outlet Pressure | Mpa | 0.02~0.03 | |||||
| Dew Point | ℃ | -50 ~ -70 | ||||||
| Particle | um | 0.01 | ||||||
| Oil content in air outlet | ppm | 0.01 | ||||||
