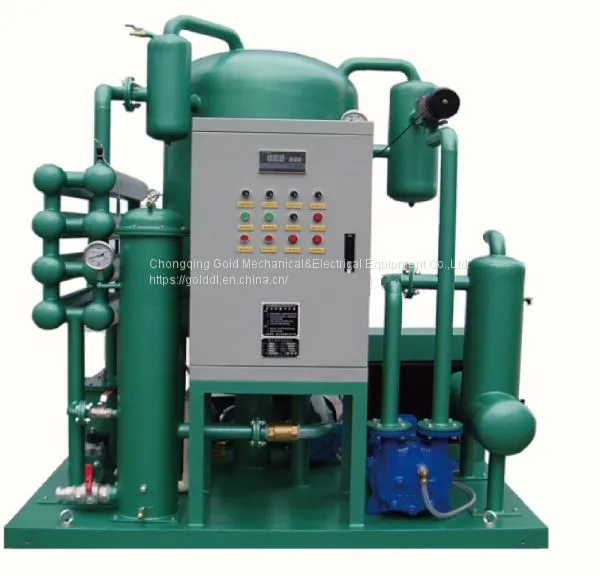

ZJC-T Vacuum and Centrifugal Turbine oil purifier,Used Engine Oil Recycling Machine
Product introduction:
It can effectively remove water and particles in machinery oil,hydraulic oil,compressor oil,refrigerator oil and other industrial oil,to solve emulsification and remove water by vaccum distillation,remove particles by multi-stage of filters.
Features :
1. As the new patent technology Vacuum-segregating is adopt the separated equipment of inflator (Patent No. ZL200420060968.5) employs particular spinning disk and stainless steel machine with dehydration and air pump and enlarges the area of segregating and coming to three-dimensional evaporation so that obtain the enough time to boil away. In this way purifier could achieve the best effect.
2. Using new type of heating equipment (Patent No. ZL02276238.8), it can reduce heating burthen and extend oil life.
3. The water cycled vacuum-pump from abroad lubricates by coolant (or water) and that it never afraid that air enter in the vacuum-pump. It will solve your problem that the spinning vacuum-pump which using fluid as medium need always exchange oil.
4. Oil level control adopt photoelectric way which the main components is imported from Switzerland and have features of sensitive control, exactitude so much as feel the spume of oil. Spurting oil phenomena is never appeared. (Spurting prevention Patent No. ZL200420060973.6)
5. With advantages of no leakage,low noise and long using life, this series of products adopt special input-oil pump which be airproofed by our factory.
6. In order to meet customer’s needs of choosing right filter, we have scientific design and exact filter assemblies which could exchange by ones abroad. Both cost and oil disposal effect are good.
Parameters :
| Item |
Name of Parameter |
Type |
ZJC0.6 KY-T |
ZJC1.2 KY-T |
ZJC1.8 KY-T |
ZJC3 KY-T |
ZJC6 KY-T |
ZJC9 KY-T |
ZJC12 KY-T |
ZJC18 KY-T |
|
Technical parameter of the product |
Nominal flow capacity |
L/min | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 |
|
Working Vacuity |
Mpa | -0.07 ~ -0.101 | ||||||||
|
Working pressure |
Mpa | ≤0.35 | ||||||||
|
Working temperature of Oil |
°C | 45-65 | ||||||||
| Working power | 50Hz 380V 3-Phase 4-Wire | |||||||||
|
Total electric power |
KW | 6+1.5 | 9+1.5 | 12+1.5 | 30+3 |
2X30 +4.4 |
3X30 +6 |
3X30 +7 |
4X30 +11 |
|
|
Diameter of inlet outlet hose |
mm | 32/25 | 32/25 | 32/25 | 38/32 | 44/38 | 48/44 | 64/48 | 76/64 | |
|
Appearance dimension |
cm |
130 X100 |
130 X105 |
130 X105 |
190 X140 |
190 X140 |
210 X150 |
220 X160 |
230 X170 |
|
| Weight | Kg | 320 | 380 | 450 | 850 | 1100 | 1500 | 2000 | 2900 | |
|
Oil treatment index |
Water content | ppm | ≤100 | |||||||
| Viscosity | mm2/s | ≤20% in comparison to the original bias value of new oil | ||||||||
|
Filtering accuracy |
µm | ≤5 | ||||||||
| Demulsibility | min | ≤15 | ||||||||
| Cleanness |
NAS grade |
≤NAS 6 | ||||||||
| Oil appearance | Transparence | |||||||||
