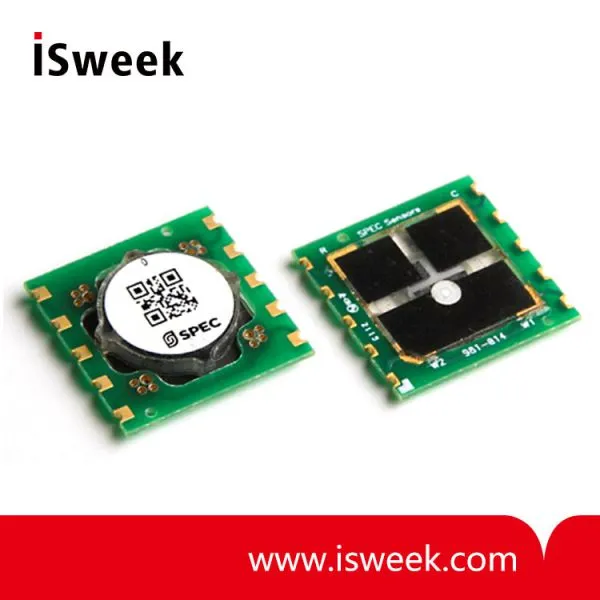

3SP_O3_20 C
15x15 O3 Sensor 20 ppm C Package 110-402
3SP_O3_20 C Ozone Sensor O3 Sensor Description
SPEC Sensors’ Screen Printed ElectroChemical sensor technology (SPEC Sensor™) revolutionizes the current state of the art, enabling new applications in consumer and industrial safety monitoring. SPEC’s printed sensors offer the performance of the best quality electrochemical sensors at a fraction of the price. SPEC’s printed sensors are also ultra-thin, offering easy integration into wireless, portable, and networked solutions. These sensors are ideal for health, environmental, industrial and residential monitoring, because of their high performance, low cost and small size.
3SP_O3_20 C Ozone Sensor O3 Sensor Benefits
• Small Size with Low Profile (20x20x3 mm)
• Long Life (10 years expected life)
• Fast Response (• Low Power Consumption
• Individually Calibrated (NIST Traceable)
• ROHS Compliant
3SP_O3_20 C Ozone Sensor O3 Sensor Applications
• Air Quality Monitoring
• Industrial Safety
• Air Purification Control
3SP_O3_20 C Ozone Sensor O3 Sensor Specifications
Measurement Range |
0 to 20 ppm |
Lower Detectable Limit |
|
Repeatability |
|
Response Time |
|
Sensitivity @ 0 mV bias |
-32 +/- 10 nA/ppm |
Expected Operating Life |
> 5 years (10 years @ 23+/-3C; 40+/-10% RH) |
Operating Temperature Range |
-30 to 50 C (-20 to 40 C continuous) |
Operating Humidity Range- non-condensing |
0 to 100% RH (15 to 95% continuous) |
Power Consumption |
10 to 50 uW (circuit & ambient O3 dependent) |
3SP_O3_20 C Ozone Sensor O3 Sensor Cross Sensitivity
Gas/Vapor |
Concentration |
Typical Response PPM O3 |
Methane |
500 ppm |
|
Nitrogen Dioxide |
10 ppm |
5 |
Hydrogen Sulfide |
25 ppm |
-12.5 |
Carbon Monoxide |
400 ppm |
|
Ozone |
5 ppm |
5 |
Chlorine |
10 ppm |
10 |
n-Heptane |
500 ppm |
-0.2 |
