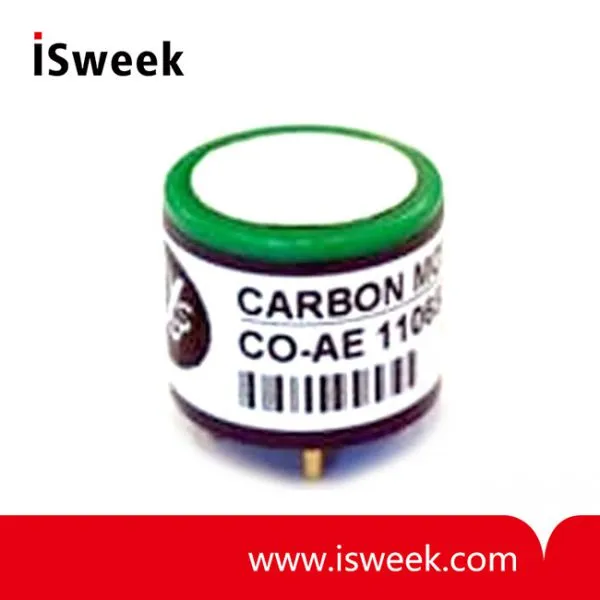

CO-AE High Concentration Carbon Monoxide Sensor CO Sensor
US$ 60 - 80
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Alphasense
Place of Origin:
United Kingdom
Model Number:
CO-AE
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TO2-233 Trace PPM Oxygen Sensor (O2 Sensor)US$ 0.01 - 0.1MOQ: 1 Piece -
H2S-B1 Hydrogen Sulfide Sensor (H2S Sensor)US$ 40 - 80MOQ: 1 Piece
-
3SP_O3_20 C 15x15 Ozone Sensor O3 Sensor 20 Ppm C Package 110-402US$ 10 - 30MOQ: 1 Piece
-
Cirius2 Infrared Carbon Dioxide Sensor 0~5000ppm 0~5% VolUS$ 0.01 - 0.1MOQ: 1 Piece
-
ZG09 High-Reliability NDIR CO2 Sensor Module for IAQ, Greenhouse, HVACUS$ 0.01 - 0.1MOQ: 1 Piece
Brand Name
Alphasense
Place of Origin
United Kingdom
Model Number
CO-AE
Usage
Gas Sensor
Theory
Other, Electrochemical Gas Sensor
CO-AE Carbon Monoxide Sensor CO Sensor Description
Alphasense Carbon Monoxide gas sensors operate using proven fuel cell technology.
CO-AE Carbon Monoxide Sensor sizes:
20mm diameter, the industry standard size for portable gas detectors
The Alphasense family of CO sensors have proven themselves in the field with long term stability and reliable operation, well beyond the two-year warranty, using our patented electrode technology.
| CO-AE Carbon Monoxide Sensor CO Sensor PERFORMANCE | ||
| Sensitivity |
nA/ppm in 2,000ppm CO |
10 to 25 |
| Response time |
t90 (s) from zero to 2,000ppm CO |
|
| Zero current |
ppm equivalent in zero air |
|
| Resolution |
RMS noise (ppm equivalent) |
|
| Range |
ppm CO limit of performance warranty |
10,000 |
| Linearity |
ppm error at full scale, linear at zero and 2000ppm CO |
|
| Overgas limit |
maximum ppm for stable response to gas pulse |
100,000 |
| CO-AE Carbon Monoxide Sensor CO Sensor LIFETIME | ||
| Zero drift |
ppm equivalent change/year in lab air |
|
| Sensitivity drift |
% change/year in lab air, monthly test |
|
| Operating life |
months until 80% original signal (24 month warranted) |
> 24 |
| CO-AE Carbon Monoxide Sensor CO Sensor ENVIRONMENTAL | ||
| Sensitivity @ -20°C |
% (output @ -20°C/output @ 20°C) @ 400ppm CO |
65 to 93 |
| Sensitivity @ 50°C |
% (output @ 50°C/output @ 20°C) @ 400ppm CO |
98 to 115 |
| Zero @ -20°C |
ppm equivalent change from 20°C |
|
| Zero @ 50°C |
ppm equivalent change from 20°C |
|
| CO-AE Carbon Monoxide Sensor CO Sensor CROSS SENSITIVITY | ||
| Filter capacity |
ppm-hours H2S |
3,000,000 |
| Filter capacity |
ppm-hours NO2 |
8,000,000 |
| Filter capacity |
ppm-hours NO |
200,000 |
| Filter capacity |
ppm-hours SO2 |
4,000,000 |
| H2S sensitivity |
% measured gas @ 20ppm H2S |
|
| NO2 sensitivity |
% measured gas @ 10ppm NO2 |
|
| Cl2 sensitivity |
% measured gas @ 10ppm Cl2 |
|
| NO sensitivity |
% measured gas @ 50ppm NO |
|
| SO2 sensitivity |
% measured gas @ 20ppm SO2 |
|
| H2 sensitivity |
% measured gas @ 400ppm H2 at 20°C |
|
| C2H4 sensitivity |
% measured gas @ 400ppm C2H4 |
|
| NH3 sensitivity |
% measured gas @ 20ppm NH3 |
|
| CO-AE Carbon Monoxide Sensor CO Sensor KEY SPECIFICATIONS | ||
| Temperature range |
°C |
-30 to 50 |
| Pressure range |
kPa |
80 to 120 |
| Humidity range |
% rh continuous |
15 to 90 |
| Storage period |
months @ 3 to 20°C (stored in sealed pot) |
6 |
| Load resistor |
Ω (recommended) |
10 to 47 |
| Weight |
g |
|
Matched Transmitter board for CO-AE CO Sensor
4-20 mA Digital Transmitter Board
• Factory calibration, custom-set for immediate use
• Digital zero, sensitivity and temperature compensation
• Digital and 4-20mA output
• Biased or unbiased operation
• Calibration and range change
