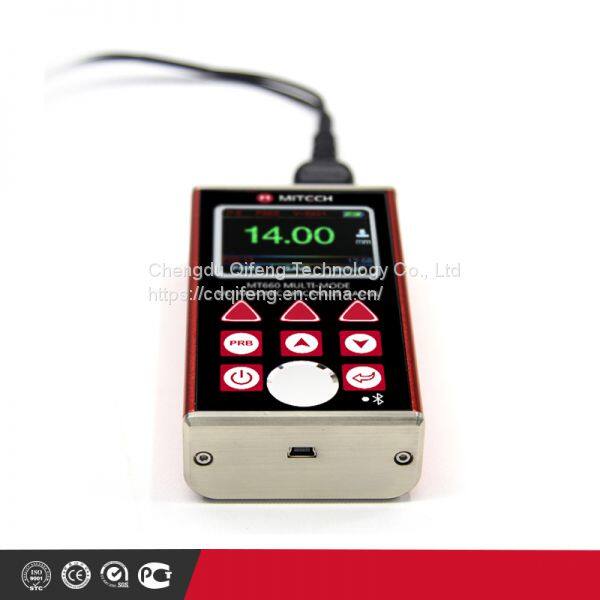

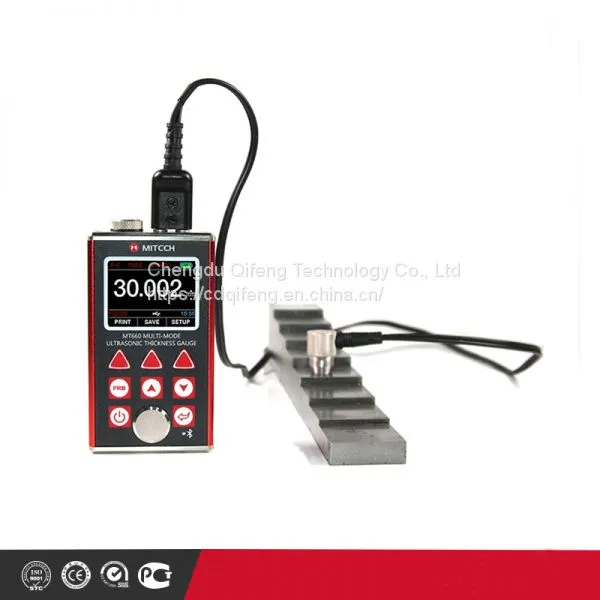

MT660 Multi-mode Ultrasonic thickness gauge
Product Overview
MT660 multi-mode ultrasonic thickness gauge pays more attention to user experience and functional innovation. Adopted with 320*240 colorful LCD display, it can show you clear measurement result under dim light and strong sunshine environment, improved the visual experience greatly. Sealed aluminum-magnesium alloy case delicate design, smaller volume, better quality are specially designed for defense against oil, dust in the bad sit environment. With intelligent warning function, it will promote automatically when beyond the setting range, it is convenient for reading. It can meet the efficient collecting material’s multiple points’ thickness accurate testing demand. It supports 0.001 high accuracy display and Bluetooth communication. With through coating mode and common mode, its unique performance of capable for testing thickness through the coating provides efficient solution for testing the workpiece of coated surface or corrosion materials. It can measure the workpiece directly without needing to get rid of the surface coating before measurement. It’s widely used for monitoring the production equipments’ various pipelines and pressure vessel corrosion reducing degree in the fields of petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and so on. It also can be used for making accurate measurement to various plates and machining parts. It is the necessary professional precision instrument for improving the production efficiency and qualification rate as well as saving cost.
Instrument Features
Multi-mode: Pulse-Echo mode (P-E mode) and Echo-Echo mode (E-E mode). In Echo-Echo mode, it can test the wall thickness eliminating paint or coating thickness.
Wide measuring range：Pulse-Echo mode: (0.65～600)mm (in Steel). Echo-Echo mode: (2.5～100)mm
V-Path correction to compensate the nonlinearity of the probe
Color TFT display (320×240 TFT LCD) with adjustable backlight, allow the user to work at worksites with low visibility.
Non-volatile memory can store 100 groups of test thickness. One hundred records max for each group.
Two AA size alkaline batteries as the power source. Continuous operating period of no less than 100 hours (default brightness setting). Display Standby and Auto Power Off functions to save power.
With internal Bluetooth module, it can print test report wirelessly.

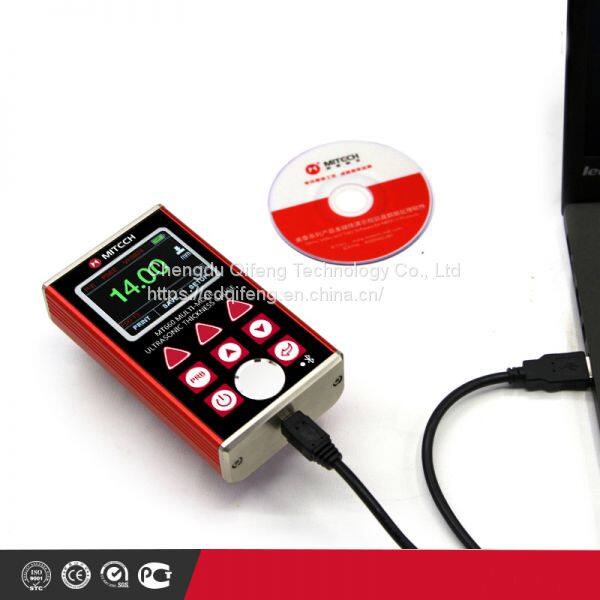

USB 2.0 communication port. Online transfer of the measured data to PC via USB.
Technical Parameters
Technical Specifications | Technical Parameters
|
Measuring Range | Support two working modes：Pulse-echo mode，(0.65～600)mm Echo-echo mode, (3～100)mm |
Accuracy | ±0.04mm（≤10mm）；±0.4%H(>10mm)； |
Measurement Frequency | Single-point measurements per second 7 times, 16 times a second scan mode. |
Display |
|
Resolution | 0.1mm/0.01mm/0.001mm switchable |
Sound Velocity Range | (1000～9999)m/s（it can measure the sound speed of material with known thickness) |
Calibration | Zero calibration, two-point calibration, automatic error correction system |
Working Modes | Single Point measurement, min/max measurement, differential measurement |
Units | Metric/Imperial unit selectable |
Working Languages | Chinese/English selectable
|
Memory
| Memory for up to 100 files (up to 100 values for each file) of stored values |
Communication Interface | Support bluetooth and USB2.0 communication, the host program can be updated online. |
Power Source | Two “AA” Size, 1.5 volt alkaline batteries，operating time is more than 30 hours (ELbacklight off) |
Data Printing | You can use portable bluetooth thermal printer to print measurement reports |
Automatic Power Saving | Auto sleep and auto power off function to conserve battery life |
Appearance Properties | Material: Aluminum-magnesium Alloy size: 120mm × 67mm × 31mm |
Weight | 317g |
