Supply Crankshaft Repair, Crankshaft Wear Laser Cladding Repair

Supply Crankshaft Repair, Crankshaft Wear Laser Cladding Repair photo-1

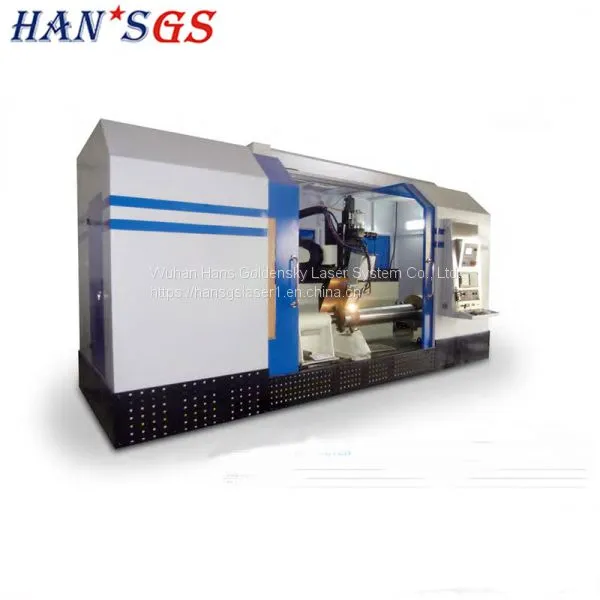

Supply Crankshaft Repair, Crankshaft Wear Laser Cladding Repair photo-2

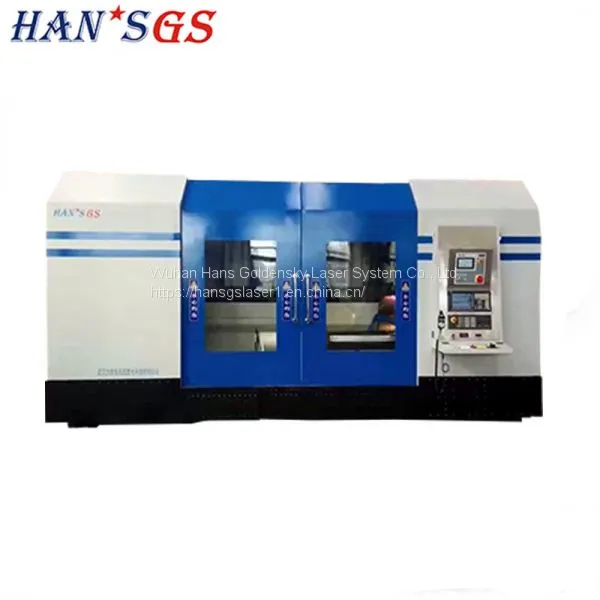

Supply Crankshaft Repair, Crankshaft Wear Laser Cladding Repair photo-3

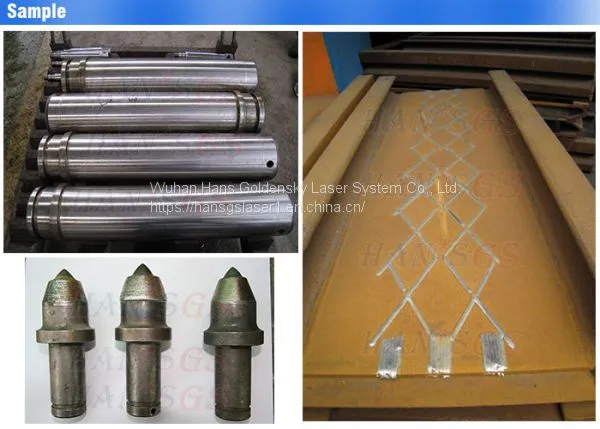

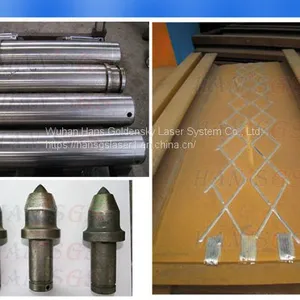

Supply Crankshaft Repair, Crankshaft Wear Laser Cladding Repair photo-4

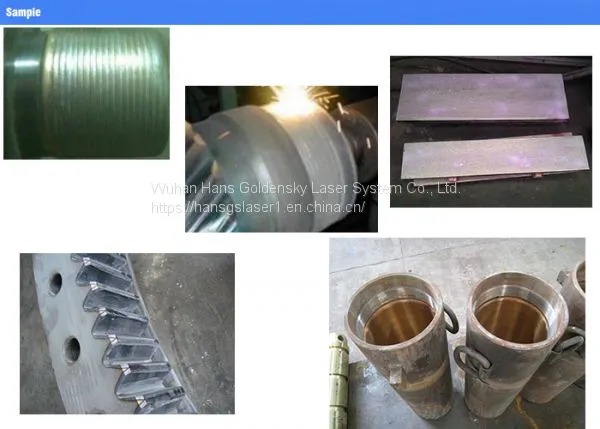

Supply Crankshaft Repair, Crankshaft Wear Laser Cladding Repair photo-5
US$ 50000 - 250000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HANS GS
Place of Origin:
China
Model Number:
GS-TFL-6K/10K
Payment & Shipping
Payment Methods:
Port of Shipment:
wuhan
Delivery Detail:
30 days
Brand Name HANS GS
Place of Origin China
Model Number GS-TFL-6K/10K
Certification CE, ISO, SGS
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Power(W) 4KW
Cooling Mode Water Cooling
Applicable Material Metal
Laser Type Semiconductor

Supply crankshaft repair, crankshaft wear laser cladding repair

Laser processing is an advanced manufacturing technology developed at the end of the last century. It is used in various fields such as machinery manufacturing, metallurgy, transportation vehicles, molds, petrochemicals, exploration, electricity, textile, aerospace and other fields. The main features of laser surface treatment products are: high hardness, high efficiency, good quality, and can achieve high abrasion resistance, high strength, high corrosion resistance, high red hardness and other properties that cannot be achieved by conventional techniques, and cannot achieve conventional methods. The heat treatment or repair method is achieved.

Laser Quenching Professional External Gear Molds Petrochemical Equipment Laser Restoration and Heat Treatment of Valve Seats

Laser processing technology mainly includes: laser surface transformation hardening (quenching) processing, laser cladding (repair) processing, laser surface alloying, laser melting, etc.



Anatomical Analysis of the Tooth Surface before and after Laser Quenching of Internal Ring Gear

Laser Quenching Professional External Gear Molds Petrochemical Equipment Laser Restoration and Heat Treatment of Valve Seats

Specification
The product is composed with TFL-6K/10K laser source, specific 60000 calories water chiller, CNC processing machine tool, auto powder delivery machine, optical path system and CNC control system.

Model GS-TFL-6K/10K
Laser source TFL-6K/10K laser source/ semi-Laser source conductor laser source
Optical system Fly optical path, Light path diameterφ70
Manual type swing bald,Turning Angle±60°manual adjustment
CNC machine tools
model 2 M 2.5 M 3.5 M
Working area (mm) 2000*600*500 2500*1000*5000 3500*1000*500
X, Y, Z axle working speed 0 - 5000 m/min
Location accuracy ±0.1 mm / 300 mm
Relocation accuracy ±0.05 mm
Horizontal rotating table
Max. chuck diameter

Three claw Φ500/center
height 500mm

Four claw Φ630/center
height 690mm

Four claw Φ630/center
height 800mm

Rotating speed 0.5 - 15 rpm 0.05 - 5 rpm 0.05 - 5 rpm
Platform size(mm) 3860 * 1450 * 280 5560 * 1000 * 280 7000 * 1200 * 350
Center shaft

Bearing diameter
Φ100-Φ350 one set

Bearing diameter
Φ370-Φ630 two set s

Bearing diameter
Φ370-Φ630 two set s

Max. Length of workpiece 2500 mm 3500 mm 4000 mm
Max. Diameter of workpiece Φ 800 Φ 1350 Φ 1500
Max. Weight of workpiece 5 T 10 T 15 T
Control system Siemens Siemens 828D AC servo motor



Laser Heat Treatment/Clad Lasers

Laser Quenching Professional External Gear Molds Petrochemical Equipment Laser Restoration and Heat Treatment of Valve Seats
