SMD SMT CM402-M pick and place machine , Automatic placement machine for LED SMD assembly line

SMD CM402-M pick and place machine , Automatic placement machine for LED SMD assembly line

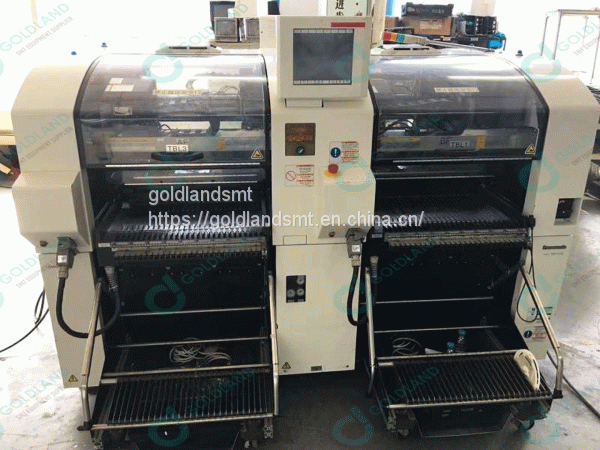

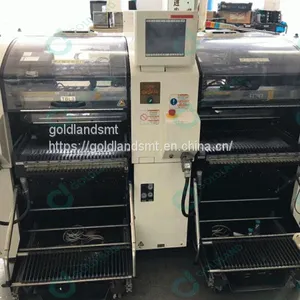

CM402-M pick and place machine Product Details:

MODEL ID: CM402-M
MODEL NUMBER: KXF-4Y3C
PCB DIMENSIONS: L 50 mm x W 50mm to L 330 mm × W 250 mm
HEAD TYPE: Type A-2 (12/12 nozzles HIGH-SPEED) (OPTION)
Number of nozzles: 12 nozzles/head
Maximum speed: 0.052 s/chip (69,500 cph)
Placement accuracy: ±40um/chip
Component dimensions: (01005")0402 chip to L 12mm x W12mm xT6.5mm
HEAD TYPE: 8+8 HIGH-SPEED (OPTION)
Number of nozzles: 8 nozzles/head
Maximum speed: 0.06 s/chip (60,000 cph)
Placement accuracy: ±50um/chip
Component dimensions: 0201 (0603) C, R to L 24 mm × W 24 mm
HEAD TYPE: 8+3 MULTI FUNCTION (OPTION)
Number of nozzles: 3 nozzles/head
Maximum speed: 0.21 s/QFP (17,140 cph)
Placement accuracy: ±0.035 mm/QFP
Component dimensions: 0402 (1005) C, R to L 100 mm × W 90 mm
PCB EXCHANGE TIME: 0.9 s (board length: up to 240 mm)
ELECTRIC SOURCE: 3-phase AC 200 V ±10 V / AC 400 V ±10 V, 2.5 kVA
PNEUMATIC SOURCE: 490 kPa, 150 L/min (standard, machine body only)
DIMENSIONS W 2,350 mm x D 2,460 mm x H 1,430 mm
MASS 2,700 kg
