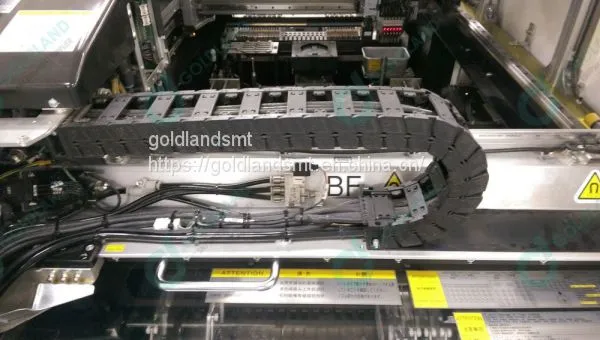

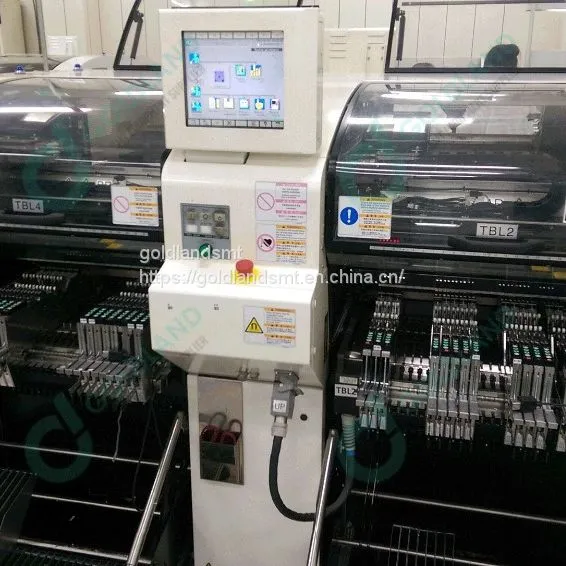

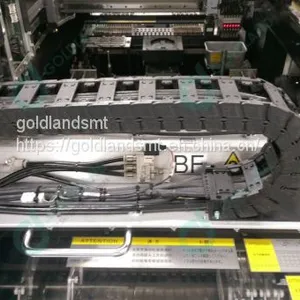

Automation High speed smt pick and place machine CM602-L chip mounter for PCB making equipment
CM602-L pick and place machine product Details:
MODEL ID: CM602-L
MODEL NUMBER: NM-EJM8A
PCB DIMENSIONS: L 50 mm x W 50mm to L 510 mm × W 460 mm
HEAD TYPE: High-speed head (Type A-2 head,12/12 nozzles) (OPTIONAL)
Number of nozzles: 12 nozzles
Maximum speed: 0.036 s/chip (100,000 cph)
Placement accuracy: ±40um/chip
Component dimensions: (01005")0402 chip*5 to L 12mm x W12mm xT6.5mm
HEAD TYPE: High-Flexibility Head (OPTIONAL)
Number of nozzles: LS 8 nozzles
Maximum speed: 0.048 s/chip (75,000 cph)
Placement accuracy: ±40um/chip, ±35um/QFP>24mm, ±50um/QFPComponent dimensions: (01005")0402 chip*5 to L 32mm x W32mm xT8.5mm*8
HEAD TYPE: Multi-Functional Head (OPTIONAL)
Number of nozzles: 3 nozzles
Maximum speed: 0.18 s/QFP (20,000 cph)
Placement accuracy: ±35 um/QFP
Component dimensions: (0201")0603 chip to L 100mm x W 90mm xT 25mm*7
PCB EXCHANGE TIME: 0.9s (board length: up to 240mm under optimum conditions)
ELECTRIC SOURCE: 3-phase AC 200,220,380,400,420,480V, 4.0kVA
PNEUMATIC SOURCE: 490 kPa, 170 L/min (A.N.R)
DIMENSIONS W 2,350 mm x D 2,290 mm *2 x H 1,430 mm *3
MASS 3,400 kg
ABOUT US
GOLDLAND ELECTRONIC TECHNOLOGY CO., LTD focus on global Surface Mount electronic assembly sector for 10 years. We mainly provide competitive price and high quality products for various brands of SMT equipments, SMT feeders, SMT nozzles, SMT feeder spare parts, AI equipments, AI spare parts and other related products. The brands is: FUJI, KEM, PANASERT, YAMAHA, JUKI, Hitachi, Universal, Siemens, I-pulse, Assembleon, DYNAPERT, TDK and so on
We have large quantity stock and good source for Feeders/ feeder spare parts, feeder trolleys, Nozzles, Heads, Servo Motors, Drivers, Control boards and other related parts for Siemens/ASM/SIPLACE X-Series machine(such as: X4i S, X4 S, X3 S, X2 S,ect. ), KME CM402/ CM602/ NPM/ AM machine, FUJI NXT M3/M3S/M6/M6S/AIMEX series machine, YAMAHA YS/YG/YV series machine, JUKI KE2000/FX series machine, Universal Advantis/Genesis/GSM series machine, etc.
contact:jack(@)goldlandsmt.com
