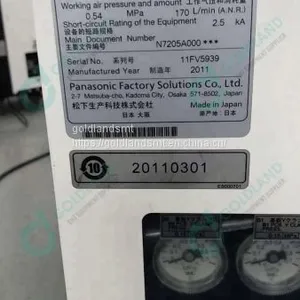

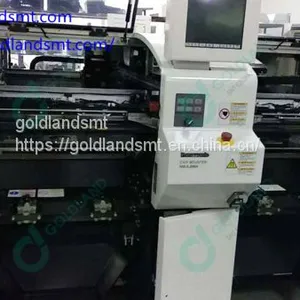

Help CenterAutomation High Flexibility CM602 Smt Pick and Place Machine for PCB Making Equipment (series No: 11FV5939)
Related Products
-
Hot Sale Chip Mounter/ SMT Pick and Place Machine Price/ PCB Production Machine for SLM110S SAMSUNG 1.2M (48 Inch) LED BoardUS$ 20000 - 40000MOQ: 1 Set -
High Precision Off-line AOI Machine AND 3D SPI System in SMT Line KOH YOUNG KY8030-3US$ 30000 - 40000MOQ: 1 Set
-
SMD Reflow Oven PCB Soldering Machine BTU Pyramax Reflow Oven for LED Production LineUS$ 30000 - 40000MOQ: 1 Set
-
DEK HORIZON 03iX Automatic Screen Printing Machine,SMT DEK Screen PrinterUS$ 30000 - 40000MOQ: 1 Set
-
SMT JUKI RX-7 Electric Feeder EF08HSR N-4D09522US$ 200 - 300MOQ: 1 Piece
| Description | |
| MODEL ID: | CM602-L |
| MODEL NUMBER: | NM-EJM8A |
| PCB DIMENSIONS: | L 50 mm x W 50mm to L 510 mm × W 460 mm |
| HEAD TYPE: | High-speed head (Type A-2 head,12/12 nozzles) (OPTION) |
| Number of nozzles: | 12 nozzles |
| Maximum speed: | 0.036 s/chip (100,000 cph) |
| Placement accuracy: | ±40um/chip |
| Component dimensions: | (01005")0402 chip*5 to L 12mm x W12mm xT6.5mm |
| HEAD TYPE: | High-Flexibility Head (OPTION) |
| Number of nozzles: | LS 8 nozzles |
| Maximum speed: | 0.048 s/chip (75,000 cph) |
| Placement accuracy: | ±40um/chip, ±35um/QFP-24mm, ±50um/QFP |
| Component dimensions: | (01005")0402 chip*5 to L 32mm x W32mm xT8.5mm*8 |
| HEAD TYPE: | Multi-Functional Head (OPTION) |
| Number of nozzles: | 3 nozzles |
| Maximum speed: | 0.18 s/QFP (20,000 cph) |
| Placement accuracy: | ±35 um/QFP |
| Component dimensions: | (0201")0603 chip to L 100mm x W 90mm xT 25mm*7 |
| PCB EXCHANGE TIME: | 0.9s (board length: up to 240mm under optimum conditions) |
| ELECTRIC SOURCE: | 3-phase AC 200,220,380,400,420,480V, 4.0kVA |
| PNEUMATIC SOURCE: | 490 kPa, 170 L/min (A.N.R) |
| DIMENSIONS | W 2,350 mm x D 2,290 mm *2 x H 1,430 mm *3 |
| MASS | 3,400 kg |
our services:
1. We’ll have a good check and a test before shipping out.
2. We provide you the friendly English User manual or the operating videos for free;
3. 24 hours technical support by email or Skype or Trade Manager or Calling.
4. 1 year machine parts free warranty;
5.Technical guidance always.
Company Information:
ABOUT US
GOLDLAND ELECTRONIC TECHNOLOGY CO., LTD focus on global Surface Mount electronic assembly sector for 10 years. We mainly provide competitive price and high quality products for various brands of SMT equipments, SMT feeders, SMT nozzles, SMT feeder spare parts, AI equipments, AI spare parts and other related products. The brands is: FUJI, KEM, PANASERT, YAMAHA, JUKI, Hitachi, Universal, Siemens, I-pulse, Assembleon, DYNAPERT, TDK and so on
We have large quantity stock and good source for Feeders/ feeder spare parts, feeder trolleys, Nozzles, Heads, Servo Motors, Drivers, Control boards and other related parts for Siemens/ASM/SIPLACE X-Series machine(such as: X4i S, X4 S, X3 S, X2 S,ect. ), KME CM402/ CM602/ NPM/ AM machine, FUJI NXT M3/M3S/M6/M6S/AIMEX series machine, YAMAHA YS/YG/YV series machine, JUKI KE2000/FX series machine, Universal Advantis/Genesis/GSM series machine, etc.
