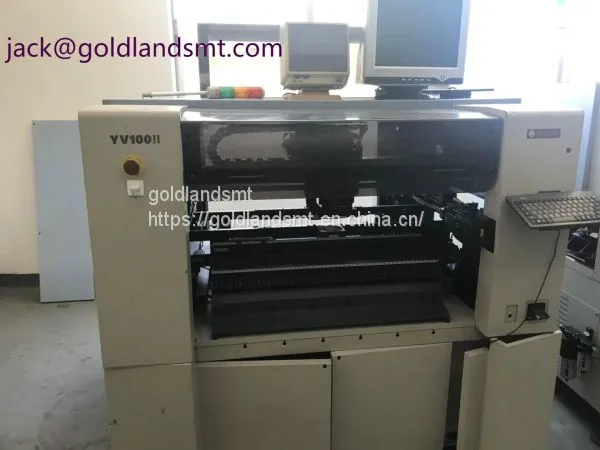

YAMAHA YV100XII Smt Machine

YAMAHA YV100XII Smt Machine thumbnail-1
YAMAHA YV100XII Smt Machine photo-1
US$ 20000 - 22000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
YAMAHA
Place of Origin:
China
Model Number:
YV100XII
Contact Supplier Request Quote Chat Now
Goldlandsmt
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YAMAHA
Place of Origin China
Model Number YV100XII

YAMAHA YV100XII smt machine

1.Model: YV100X


2.Substrate size: ATS20 (final placement) W-AT Assembly: L460*W250 (Max) / L50* W50 (Min)


3.Applicable PCB size :  457*407 mm(max);  50x50mm(min )


4.Substrate thickness: 0.4mm to 3.0mm


5.Substrate delivery direction: right - left (The direction can be changed according to the need )


6.Mounting accuracy: ± 0.1mm / CHIP ; ± 0.08 / QFP


7.Number of suction nozzles: 4 flight nozzles


8.Mounting speed: 0.2 seconds / CHIP; 1.7 seconds / QFP; 12000 (tablets / hour)


9.Original type Ribbon Original: 100 (MAX, 8MM with conversion)


10.Tray Original: 80 (TMAX, YTF used)


11.Original supply form: 8-56mm wide band, rod, bulk, tray


12.Applicable chip size: 0603-32mm components, long plug-in, CSP, BGA, QFP


13.Power supply three-phase: AC220 / 208/230/240/380/400 / 416V ± 10%, 50/60HZ


14.Power: 4KVA


15.Air pressure: 0.55MPA above, 350MIN


16.Dimensions: L1650 * W1408 * H1850mm

contact：jack（@）


Product Tags: YAMAHA YV100XII smt machine , smt machine , YAMAHA smt machine
