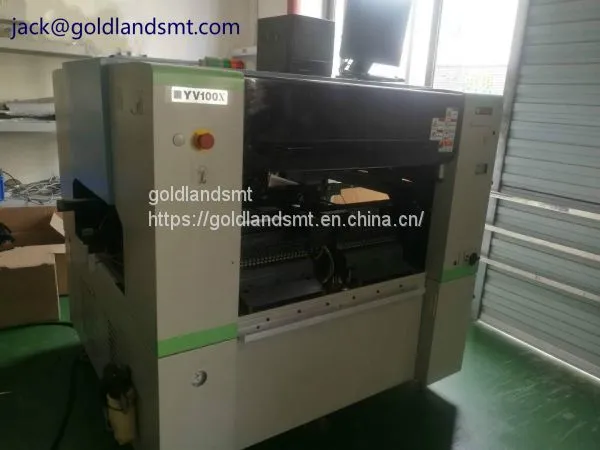

Automatic yamaha yv100x pick and place machine 4 flight nozzles yamaha machine smt
1.Model: YV100X
2.Substrate size: ATS20 (final placement) W-AT Assembly: L460*W250 (Max) / L50* W50 (Min)
3.Applicable PCB size : 457*407 mm(max); 50x50mm(min )
4.Substrate thickness: 0.4mm to 3.0mm
5.Substrate delivery direction: right - left (The direction can be changed according to the need )
6.Mounting accuracy: ± 0.1mm / CHIP ; ± 0.08 / QFP
7.Number of suction nozzles: 4 flight nozzles
8.Mounting speed: 0.2 seconds / CHIP; 1.7 seconds / QFP; 12000 (tablets / hour)
9.Original type Ribbon Original: 100 (MAX, 8MM with conversion)
10.Tray Original: 80 (TMAX, YTF used)
11.Original supply form: 8-56mm wide band, rod, bulk, tray
12.Applicable chip size: 0603-32mm components, long plug-in, CSP, BGA, QFP
13.Power supply three-phase: AC220 / 208/230/240/380/400 / 416V ± 10%, 50/60HZ
14.Power: 4KVA
15.Air pressure: 0.55MPA above, 350MIN
16.Dimensions: L1650 * W1408 * H1850mm
17.Weight: 1580KG
GOLDLAND ELECTRONIC TECHNOLOGY CO., LTD focus on global Surface Mount electronic assembly sector for 10 years. We mainly provide competitive price and high quality products for various brands of SMT equipments, SMT feeders, SMT nozzles, SMT feeder spare parts, AI equipments, AI spare parts and other related products. The brands is: FUJI, KEM, PANASERT, YAMAHA, JUKI, Hitachi, Universal, Siemens, I-pulse, Assembleon, DYNAPERT, TDK and so on.
contact:jack(@)
