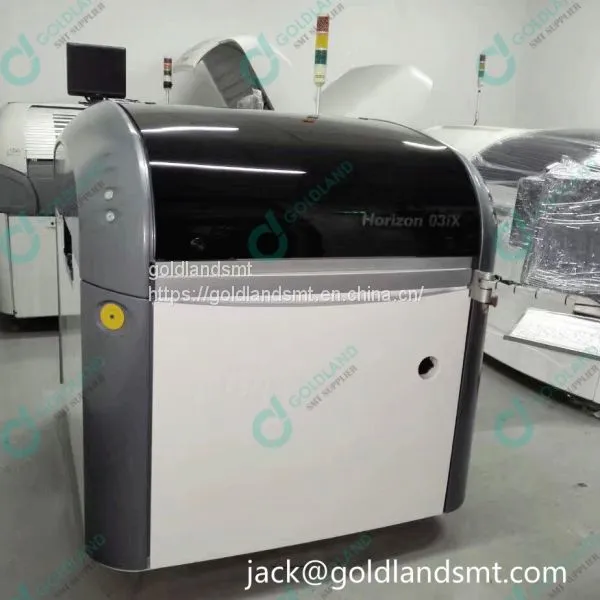

Help CenterDEK HORIZON 03iX Automatic Screen Printing Machine,SMT DEK Screen Printer
Related Products
-
SMT JUKI RX-7 Electric Feeder EF08HSR N-4D09522US$ 200 - 300MOQ: 1 Piece -
Automatic Yamaha Yv100x Pick and Place Machine 4 Flight Nozzles Yamaha Machine SmtUS$ 30000 - 40000MOQ: 1 Piece
-
Automatic PCB Magazine Unloader Machine for SMT Assembly Production LineUS$ 3000 - 3100MOQ: 1 Piece
-
YAMAHA YV100XII Smt MachineUS$ 20000 - 22000MOQ: 1 Set
-
FF16FS JUKI FF 16mm FeederUS$ 200 - 300MOQ: 1 Piece
DEK Horizon 03iX Machine Standard Configuration:
Standard Configuration Specification
Machine Alignment Capability >2.0 Cpk @ +/- 12.5µm, (±6 Sigma) #
Process Alignment Capability >2.0 Cpk @ +/- 25µm, (±6 Sigma) #
Core Cycle Time 10 secs (9 secs with HTC option)
Maximum Print Area 510mm* (X) x 508.5mm (Y)
Printer Construction One piece optimised welded frame
ISCANTM Machine Control Motion control using CAN BUS network
Operating System Windows 7 Standard embedded
Operator Interface Colour TFT touch screen display, keyboard and trackball with DEK InstinctivTM software. Machine mountable on either left or right hand side.
Camera HawkEye® 750 digital camera, using IEEE 1394 interface. Multi channel. LED lighting.FOV 11.3mm x 8.7mm. Inspection window 26mm2
Camera Positioning Rotary motors and encoders with 4 micron resolution
Squeegee Pressure Mechanism Software controlled, motorised
Stencil Positioning Manual width screen depth adjuster
Stencil Alignment Motorised via actuators X, Y, and Theta
Squeegee Clamped double trailing edge squeegee (1 set included)
Machine Interface Upline and downline FMI included
Connectivity RJ-45LAN (networking) and USB2 interface available
Tri Colour Beacon Programmable with audible alarm
Documentation Hard copy manuals comprising: Operator,Installation, Electrical Drawings. On board technical manuals and tutorials supporting operator functions. DVD containing manuals and tutorials.
