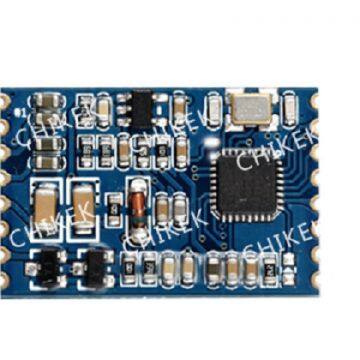

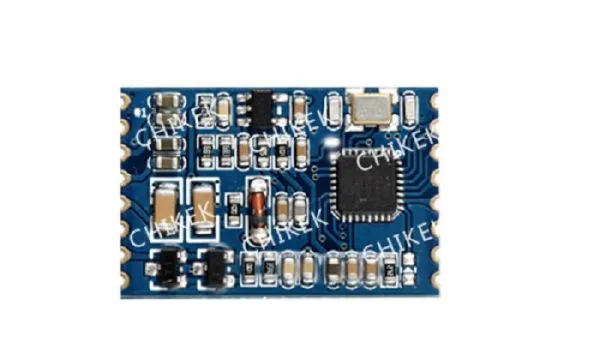

Help CenterLF 134.2KHz Hitag1 Reader Module, FDX-B Animal Tag Reader, UART TTL, ISO11784/11785
Related Products
-
MIFARE Reader Module, NFC Tag RFID Reader Writer, ISO14443A, UART TTLNegotiableMOQ: 1 Piece -
MIFARE DESFire EV1 RFID Module, MIFARE Plus Card Reader Writer ModuleNegotiableMOQ: 1 Piece
-
125KHz/134.2KHz Hitag1 RFID Module, HITAG1 Animal Tag Reader, UART TTL, ISO11784/11785NegotiableMOQ: 1 Piece
-
125KHz Animal Tag RFID Module, HitagS Reader Module, FDX-B Standard, ISO11784/11785NegotiableMOQ: 1 Piece
-
PSAM Card Reader Writer, CPU Card RFID Module, ISO14443A, UART TTLNegotiableMOQ: 1 Piece
Key Features:
Frequency available with 125KHz, 134.2KHz
3.3V ~ 5V DC Power supply, UART-TTL interface
Compatible with ISO11784,11785 Standard , support FDX-B
Support to Read/write Hitag 1 Tag, Hitag S64/ 256/2048 animal tag,
Read UID of EM4100/4200, TK4100 cards;
Available to format Hitag S series card to ID card or FDX-B animal ear tags format;
External antenna, reading range up to 5~7 cm
External LED&BUZ available( external driver circuit needed)
Technical Parameters:
Electrical Specification |
|
Power supply |
DC 3.3V~5V |
Power consumption |
|
Operation frequency |
125KHz &134.2KHz |
Baudrate |
9600~115200 bit/s ( default 9600bps) |
Interface |
UART TTL |
Antenna |
External, stamp-hole |
Reading range |
50- 100mm (depends on tag and antenna size) |
Mechanical Specifications |
|
Dimension |
25mmx16.5mmx2.8mm (LxWxH) |
Weight |
3g |
Material |
FR-4, Blue |
Model |
CHK103MT |
Environmental Conditions |
|
Operation temperature |
-20°C～ +80°C |
Storage temperature |
-40°C～ +85°C |
Humidity |
Relative humidity 5%～95% |
Supported Standard/ Tags |
|
EM4100,EM4200, TK4100 |
|
ISO/IEC 11784/11785 |
Hitag 1, Hitag S 64, Hitag S 256, Hitag S 2048 |
SDK information |
|
Demo software |
Windows, C# program language |
Files |
Comprotocol document API document User Manual Demo.exe |
