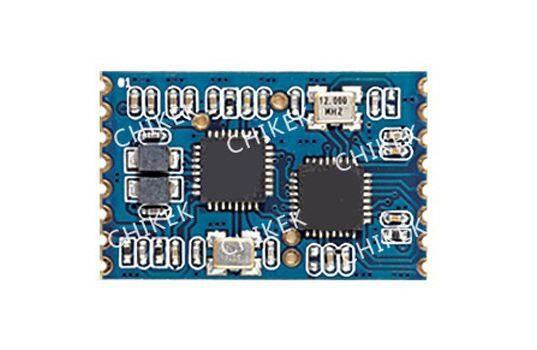

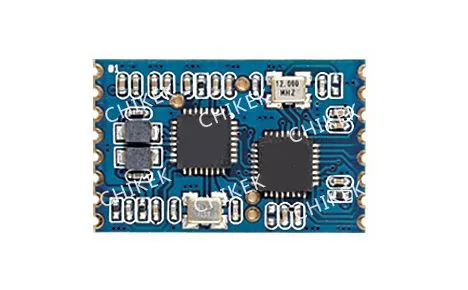

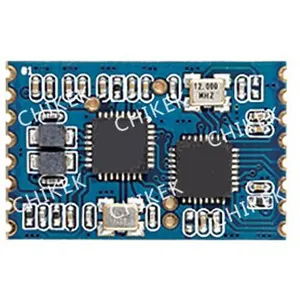

Help CenterMIFARE Reader Module, NFC Tag RFID Reader Writer, ISO14443A, UART TTL
Related Products
-
MIFARE DESFire EV1 RFID Module, MIFARE Plus Card Reader Writer ModuleNegotiableMOQ: 1 Piece -
125KHz/134.2KHz Hitag1 RFID Module, HITAG1 Animal Tag Reader, UART TTL, ISO11784/11785NegotiableMOQ: 1 Piece
-
125KHz Animal Tag RFID Module, HitagS Reader Module, FDX-B Standard, ISO11784/11785NegotiableMOQ: 1 Piece
-
PSAM Card Reader Writer, CPU Card RFID Module, ISO14443A, UART TTLNegotiableMOQ: 1 Piece
-
T5577 ID Card Reader Module, Smart Locker RFID Module, UART TTLNegotiableMOQ: 1 Piece
Key Features:
DC3.3V ~5V power supply, UART-TTL interface；
Compliant with ISO14443A standard,
Read/Write or Read only UID of MIFARE® Classic 1K /4K,MIFARE Ultralight®, MIFARE Ultralight® C etc
Read and Write NFC Ntag series cards/tags;
External antenna, reading range up to 5 ~ 7cm
External LED and BUZ available ( external driver circuit needed)
Technical Parameters:
Electrical Specification
Power supply : DC 3.3V ~ 5V
Power consumption : Max current：
Operation frequency : 13.56MHz
Baudrate : 9600~115200 bit/s ( default 9600bps)
Interface : UART TTL
Antenna : External, stamp hole
Reading range : Up to 4 cm ~ 10 cm( depends on antenna and cards)
Mechanical Specifications
Dimension : 25mmx16.5mmx2.8mm (LxWxH)
Weight : 3g
Material : FR-4, Blue
Model : CHK302MT
Environmental Conditions
Operation temperature : -20°C～ +80°C
Storage temperature : -40°C～ +85°C
Humidity : Relative humidity 5%～95%
Supported Standard/ Tags
ISO14443A
Read/Write:
MIFARE® Classic 1K /4K, MIFARE Ultralight®, MIFARE Ultralight® C, NTAG 21x
Read UID only:
Read UID only of all other ISO14443A RFID tags
SDK information
Demo software : WINDOWS, C# language
Files : Comprotocol document /API document/User Manual/Demo.exe
Note: Other functions and details to be continued and upgrade
