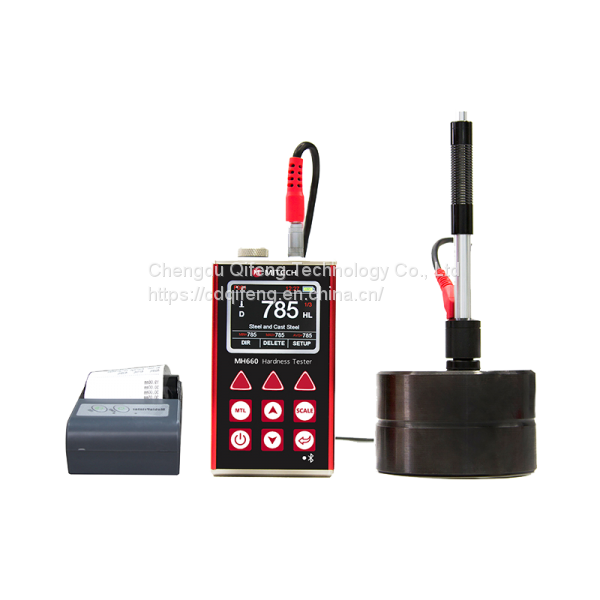

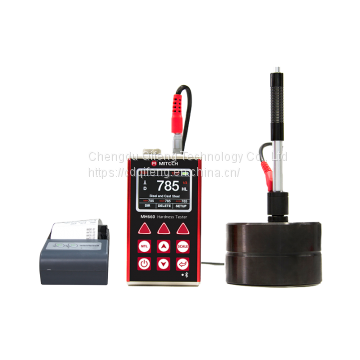

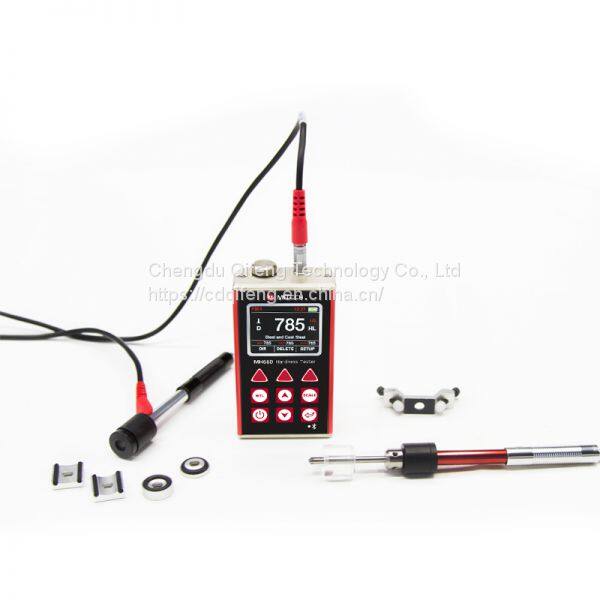

MH660 portable digital leeb hardness tester
Product Overview
MH660 portable Leeb hardness tester is Mitech latest upgrade model, it focuses on user experience and innovative features. Using 320 × 240 color LCD display, can also present a clear measurement results in dim light and strong sunlight environment , greatly enhance the visual experience; sealed metal case compact design, smaller, better quality, designed to withstand harsh field environment of the oil, dust ,more original point calibration function is used to do multi-point calibration for convert curve to reduce errors;during measurement instrument can automatically identify the measuring direction, automatically alarm when out of range, to meet the inspection requirements with high precision and multi-angle material collected, support free conversion between hardness type; low-power design powered by two AA batteries, support multiple languages.Blue-tooth printer. It is widely used in metal processing and manufacturing, special equipment or permanent component failure analysis in service, inspection and other fields. Particularly suitable for large non-removable part of the site hardness testing. It is to improve the pass rate of production and cost savings necessary professional precision instrument.
Technical Specifications
Measuring range （170～960）HLD Impact direction vertically downward, oblique, horizontal, oblique, vertical upward, automatically identify Error D ±6 HLD Repeatability D 6 HLD Material Steel and cast steel,Cold work tool steel,Stainless steel,Grey cast iron,Nodular cast iron,Cast alu Hardness Scale HL、HB、HRB、HRC、HRA、HV、HS Impact energe D 11mJ Impact weight D 5.5g/7.2g Impact ball hardness D 1600HV Impact ball diameter D 3mm Impact ball material D----Tungsten carbide Sample surface roughness D----1.6μm；C-----≥0.2mm Min depth of harness layer D----≥0.8mm；C----0.4μm Display 320 × 240 TFT LCD screen. information-rich, intuitive, clear display, adjustable brightness, easy t Storage It can store 500 groups (impact times 32 ~ 1) hardness values, each data includes single testing va Calibration calibration and multi-point calibration function Data printing With field-portable mini-printers with Bluetooth communication, convenient to generate data reports Power voltage 3V,two (AA size alkaline batteries) Power supply Two ordinary AA batteries Power consumption Low-power design Standby period about 300 hours（with default brightness） Commumication port Blue tooth/USB1.1 Shell material Chinese-English converting, menu operation, easy and convenient. Dimensions sealed aluminum-magnesium alloy metal shell Dimension 120mm×67mm×31mm Weight 5.5KG PC software Have
