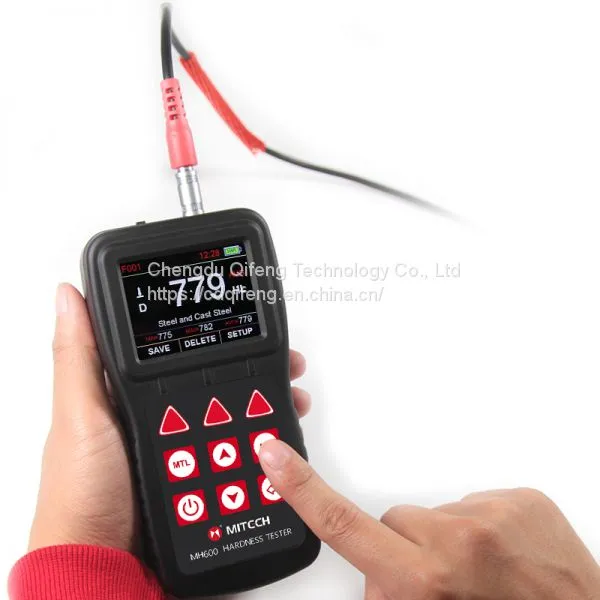

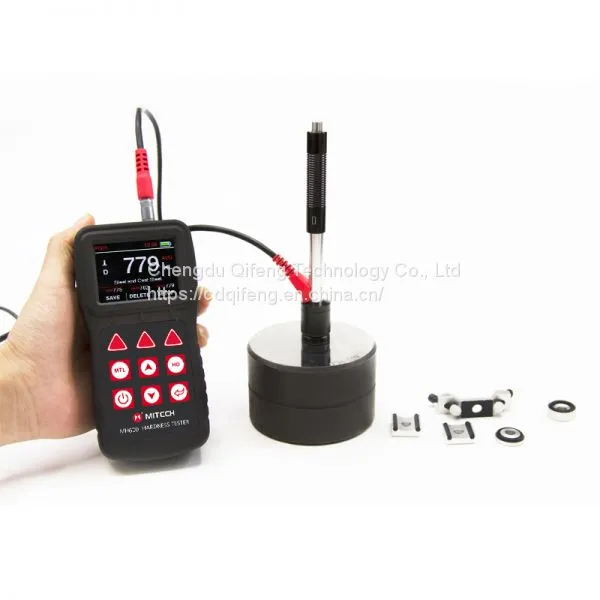

MH600 portable digital leeb hardness tester
Product Overview
MH600 portable Leeb hardness tester, intelligent design can be quickly and easily for on-site testing of metal hardness. IP65 protection, can effectively prevent oil, dust and other corrosion in harsh field environments; with color LCD display, itcan also display clear testing results in dim light and strong sunlight environment , which greatly enhance the visual experience; specil multi- point calibration function for convert curve to reduce errors;it can automatically identify the measuring direction when testing, automatically alarm when out of range, to meet the inspection requirements with high precision and multi-angle material collected and support free Conversion between hardness scale; low powerconsumption design by two AA batteries, support multiple languages. It is widely used in metal processing and manufacturing, special equipment or permanent component failure analysis in service, inspection and other fields. Particularly suitable for large non-removable part of the site hardness testing. It is necessary professional precision instrument to improve the pass rate of production and cost savings
Technical Specifications
Measuring range （170～960）HLD Impact direction vertically downward, oblique, horizontal, oblique, vertical upward, automatically identify Error D,±6 HLD Repeatability D,6 HLD Material Steel and cast steel,Cold work tool steel,Stainless steel,Grey cast iron,Nodular cast iron,Cast alu Hardness Scale HL、HB、HRB、HRC、HRA、HV、HS Impact energe D----11mJ Impact weight D----5.5g/7.2g Impact ball hardness 1600HV Impact ball diameter D----3mm Impact ball material D----Tungsten carbide Sample surface roughness D----1.6μm；C----0.4μm Min depth of harness layer D≥0.8mm；C≥0.2mm Protective Level IP65 Display olor TFT，320×240 dots, dot-matric LCD Storage 500 measurement series.(Relative to average times 32～1) Calibration Basic (single-point) calibration and multi-point calibration function Data printing By connecting the PC to print Power voltage 3V,two AA size, alkaline batteries Power supply Two ordinary AA batteries Power consumption Low-power design Standby period About 100 hours（with default brightness） Commumication port USB1.1 Working language Chinese-English converting Shell material ABS plastic seal design Dimensions 150mm×76mm×38mm Weight 5KG PC software Have
