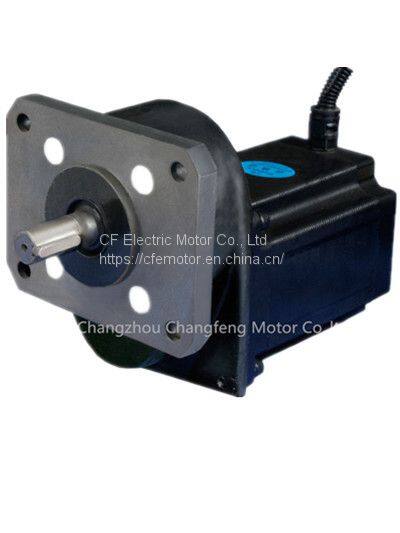

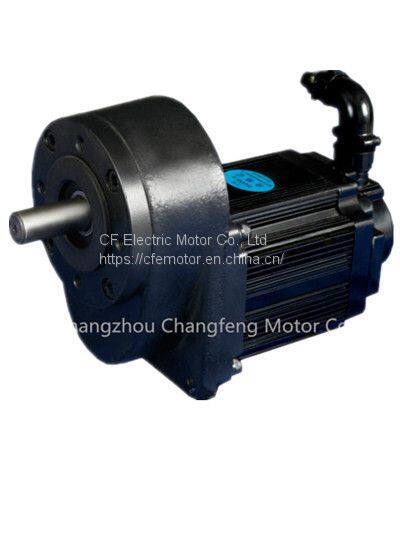

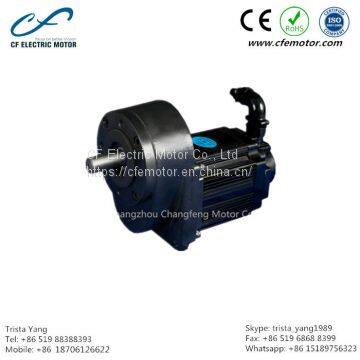

Speed Reduce Hybrid Stepper Motor With Gearbox
US$ 10 - 120
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
THANK
Place of Origin:
China
Model Number:
57/86/110 stepper
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI PORT, CHANGZHOU PORT
Delivery Detail:
10 days
Related Products
-
130BYG250 Hybrid Stepper Motor 2Phase 22N.m Holding TorqueUS$ 160 - 220MOQ: 1 Piece -
130BYG250A Hybrid Stepper Motor 2Phase 27N.m Holding TorqueUS$ 170 - 230MOQ: 1 Piece
-
130BYG250A-01 Hybrid Stepper Motor 2Phase 35N.m Holding TorqueUS$ 175 - 250MOQ: 1 Piece
-
34HT15040 Hybrid Stepping Motor 0.9N.m 4A Stepper MotorUS$ 40 - 70MOQ: 1 Piece
-
3 Phase 118mm 0.6N.m Hybrid Stepper Motor 34HT11840 Stepping MotorUS$ 50 - 60MOQ: 1 Piece
Brand Name
THANK
Place of Origin
China
Model Number
57/86/110 stepper
Type
Hybrid
Phase
2
Certification
CE, ISO, ROHS
Current / Phase
2 phase
Holding Torque
0.9-20N.m
Step Angle(degrees)
1.8/0.9 degree
Speed reduce Hybrid stepper motor with gearbox
General Specifications:
Step Angle: 01.8/0.9 degree
Step Accuracy: +/-5%( full step, no load)
Temperature Rise: 80degree Max. (rated current)
Insulation Resistance: 500VDC 100MΩ min
Dielectric Strength: 950V AC 50Hz 1mA 1Minute
Radial Play: 0.02mmMax. (300N)
End Play: 0.08mmMax. (60N)
Rotation: CW ( see from front flange)
Electric Specifications:
Reduction Ratio:
can get 1:1, 1:2, 2:3, 3:4, 4:5 and etc
Holding torque:
can be 20, 16,40, 44, 30, 16, 13, 12.5 and etc
We have professional product developers and design engineers who are able to develop customized electrical motor to meet individual customer demands.
