Description high quality Portable dry block Temperature calibrator
The On-site temperature calibration furnace is based on the requirements of the user on-site verification of the development of a new product, the use of high stability temperature control device, are thermal block with better thermal conductivity of the alloy material. Technically synchronized with advanced technologies both at home and abroad, it is at the leading level in technology such as depth of penetration, horizontal temperature field and vertical temperature field. Used in the required temperature range, it is easy to set and produce the desired temperature. Its small size, fast heating, stable temperature control, non-polluting and other characteristics, the temperature sensor and the instrument for the overall verification, it is very suitable for industrial use site

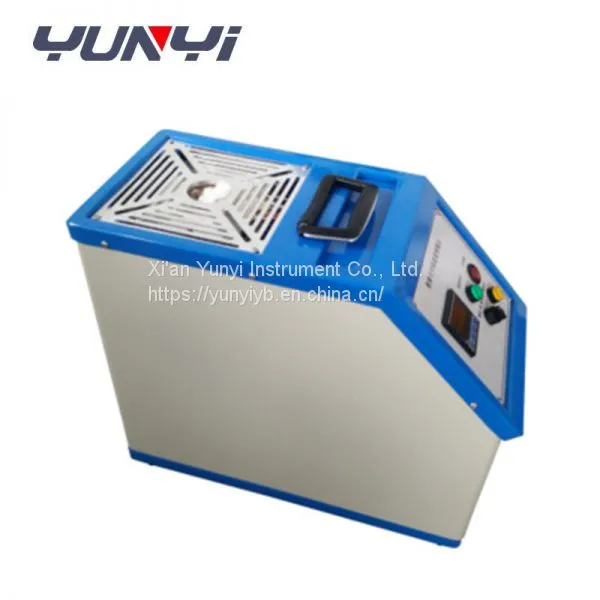

Detailed Images Portable dry block Temperature calibrator
Specification
model |
TY-W150 |
TY-W600 |
TY-W1000 |
Temp. range |
–20~150℃ |
50~650℃ |
300~1000℃ |
Heat source |
Semiconductor refrigeration |
electro-thermal | electro-thermal |
Accuracy |
0.2 |
0.2 |
0.2 |
Stability |
±0.04℃ |
±0.1℃ |
±0.1℃ |
Resolution |
0.1℃ |
0.1℃ |
0.1℃ |
Horizontal temperature field |
≤±0.25℃ |
≤±0.1℃ |
≤±0.3℃ |
Vertical temperature field |
From the bottom of the well 30mm≤0.5℃ |
From the bottom of the well30mm≤0.5℃ |
From the bottom of the well 30mm≤±0.5℃ |
Well depth |
160-200mm |
160-200mm |
160-200mm |
wellhead size |
40mm |
40mm |
40mm |
Hole size |
φ9×6 |
φ9×4 |
φ9×6 |
Box size |
390x185x320mm |
330x165x320mm |
378x182x320mm |
power |
300W |
300W |
300W |
power supply |
220V50Hz |
220V50Hz |
220V50Hz |
weight |
10Kg |
10Kg |
10Kg |
W150 power at each temperature point OPH value setting table:
| Temp. | OPH |
| -20℃~0 | 100 |
| 50℃ | 20 |
| 100℃ | 60 |
| >100℃ | 100 |
W650 temperature at each point of the OUPH value:
| Set the temperature point | Heating power (OUPH) |
| 50℃ | 2 |
| 100℃ | 2 |
Features industrial temperature calibrators
1, a variety of insertion tube, to meet different sizes, the number of sensors for testing and calibration.
2, according to user needs to adjust the heating rate.
3, configure the RS485 / 232 interface portable heat sink can be connected with the computer.
