Description
Desk-top gas pressure source is developed by our company for high pressure, medium pressure, low pressure gas pressure and vacuum pressure source, the product selection of high quality imported stainless steel and aluminum alloy materials. The use of advanced aviation sealing technology and sealing materials, refined through a variety of processing technology, the unique structure of the product and is easy to operate features is to check the pressure gauge, pressure transmitter, pressure sensor and other pressure instruments and vacuum pressure gauge The ideal device.

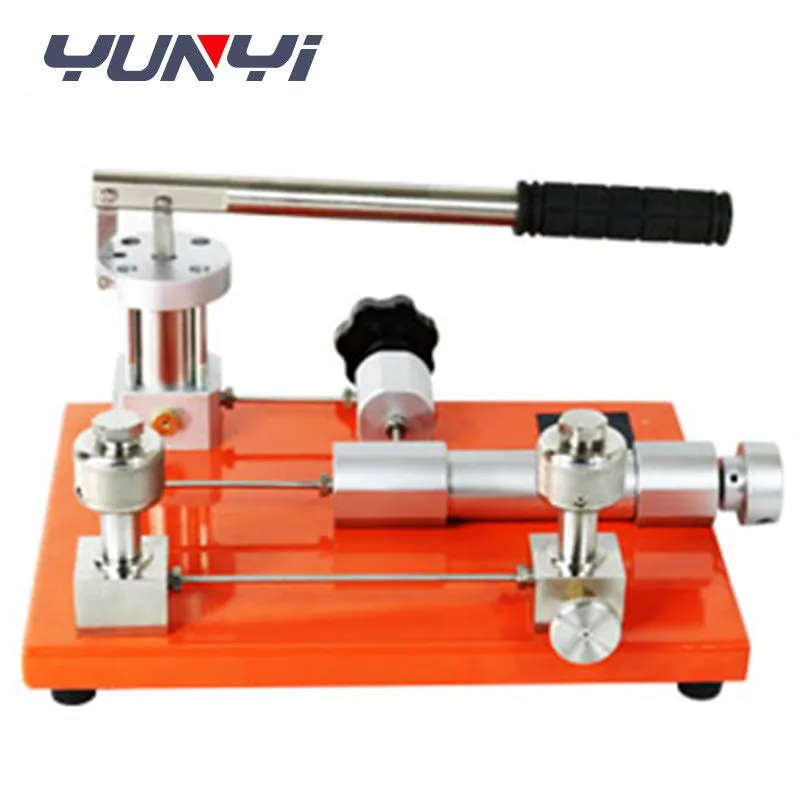

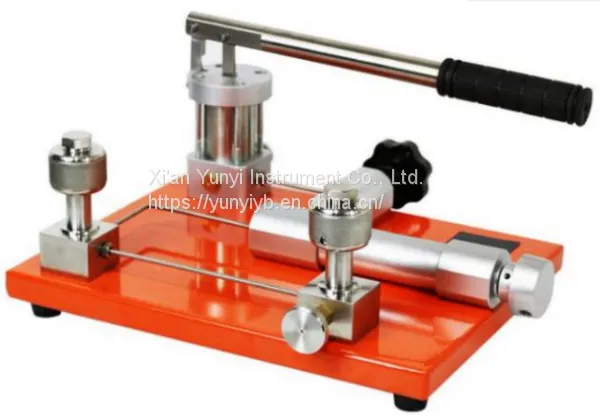

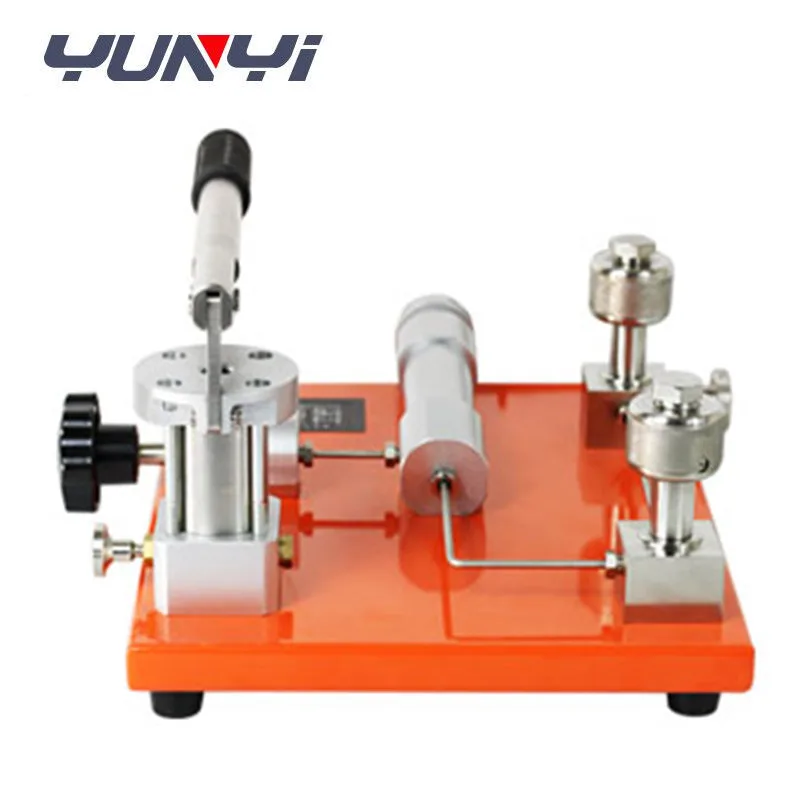

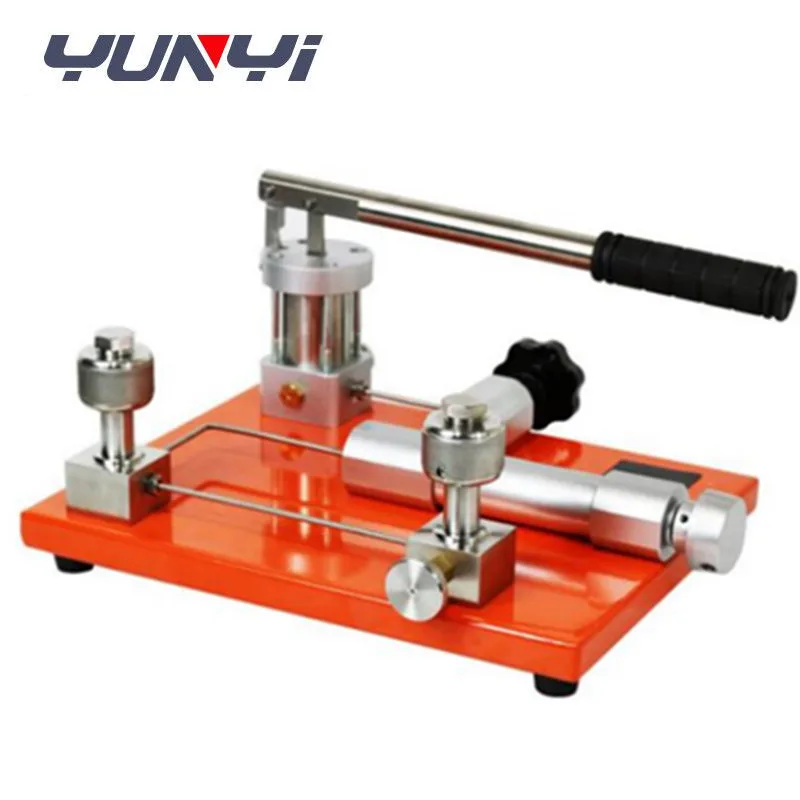

Detailed Images
Specification
Pressure range: (- 0.095 ~ 10) MPa.
Selection: XY-2002a (-0.095 ~ 4) MPa low pressure
XY-2002b (-0.095 ~ 6) MPa medium pressure
XY-2002c (-0.095 ~ 10) MPa high pressure
Output port size: M20 * 1.5 (according to the field instrument interface to provide a variety of adapter, see the pressure attachment)
Minimum controllable degree of regulation: 10Pa
Output Interface: M20 × 1.5 (three)
Volume: 300mm × 300mm × 150mm
Weight: 10kg
Medium:Air
Features
1. Pressure transmission medium for the air, clean, do not pollute the environment, improve the accuracy of calibration instruments
2. Set positive and negative pressure in one, positive and negative pressure conversion is convenient
3. Open structure, easy to operate, easy to maintain
4. Lever-type pressure, large scale plus pressure, so that the process of lifting more stable
5. Can be external gas source, saving time and effort
Fine tuning to provide higher display resolution
7. 3 output ports, you can check two tables at the same time, can also be customized according to customer needs multiple output port
8. The output port with quick connector, you can easily disassemble the instrument without wrench
9. Factory exquisite portable aluminum alloy suitcase
