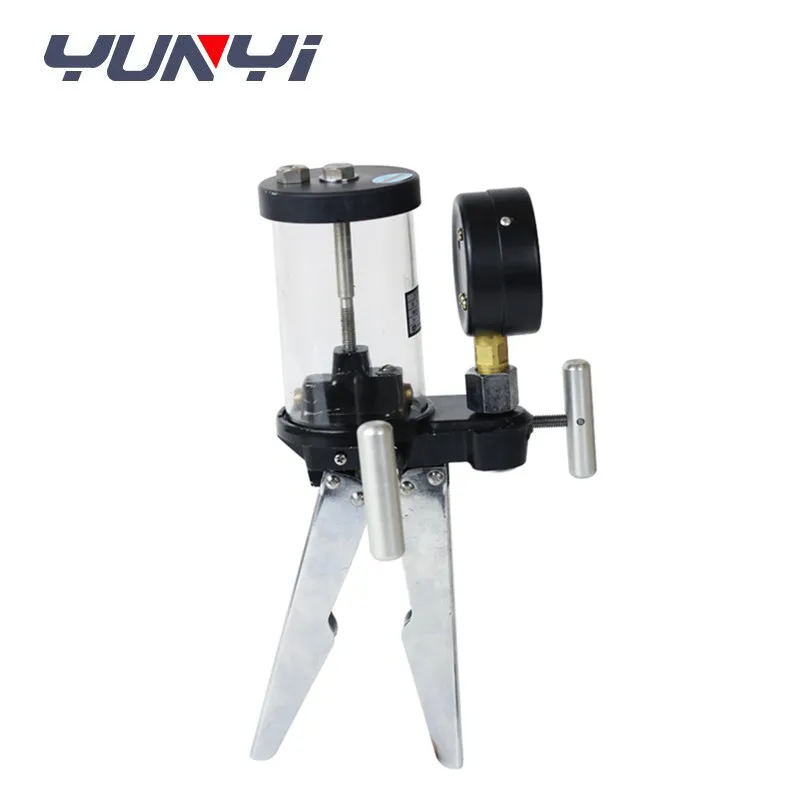

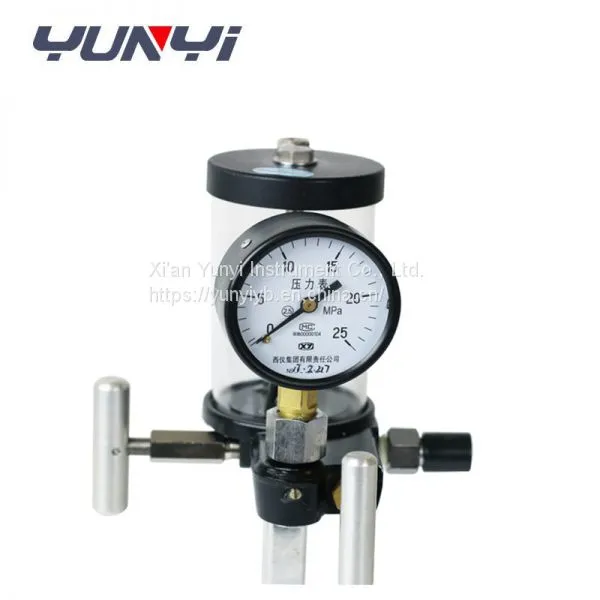

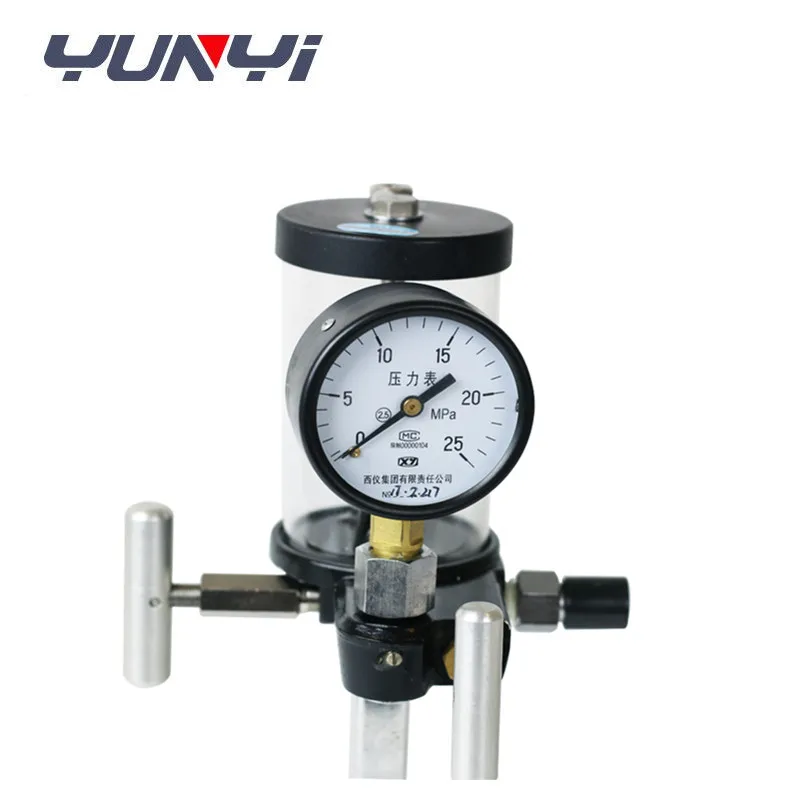

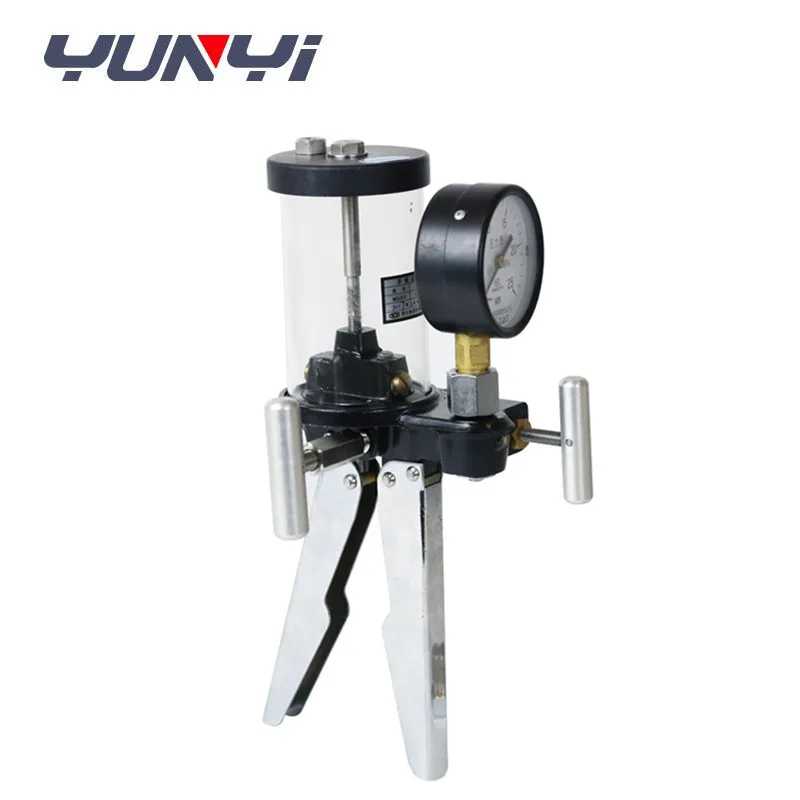

Description Hydraulic Pressure Hand Pump
Hand-Held Pressure Calibrator Pumps is a portable pressure pump.For field installation of instrument calibration in the industrial process and control of indoor use all kinds of pressure gauges.Can also provide pressure source correction table for pressure measuring instrument manufacturer.All kinds of pressure transmitter within every 60 M pa,Pressure sensor and all kinds of pressure gauges Check all available hand pressure pump.
Detailed Images Hydraulic Pressure Hand Pump
Specification Hydraulic Pressure Hand Pump
output pressure range |
Y039: 0-1.6MPa Y061: -0.1-0MPa Y060: -25MPa YFP-16: -0.088~1.6MPa(-0.88~16bar) YFP-20: -0.088~2.0MPa(-0.88~20bar) YFP-25: -0.088~2.5MPa(-0.88~25bar) |
operating temperature |
-20~50C |
operating relative humidity |
~100% |
flexible hose connector |
M20*1.5 female |
master gage connector |
1/4NPT male |
dimensions |
235×120×65 230 x 110 x 60 |
weight |
0.6kg 0.5kg |
Accessories |
500 mm long plastic hose and a leatherette carrying bag |
Outlet threads |
1/4 NPT, or to custom request |
Vernier-adjuster |
micro-adjustable, volume control |
Features Hydraulic Pressure Hand Pump
1.Portable, light weight,,Suppression of light.Easy to use Structural design pressure fine-tuning hand,Rotate the fine-tuning hand can easily change the output pressure.Also comes with a high-pressure hose connection is timing
,Meter connector connect pressure gauge .
2.Hand pressure pump is the handle, the piston rod. Through gas, pump cover, put the oil hand, fine-tuning hand, form joint, etc .rotation.
Selection Guide Hydraulic Pressure Hand Pump
|
YFP-16: -0.088~1.6MPa Stability: 0.05% Type: Pneumatic pressure |
YFP-20: -0.088~2.0MPa Stability: 0.05% Type: Pneumatic pressure |
YFP-25: -0.088~2.5MPa Stability: 0.05% Type: Pneumatic pressure |
|
Y039: 0~1.6MPa Stability: 0.05%
Type: Pneumatic pressure |
Y060: 0~25MPa Stability: 0.05% Type: Hydraulic pressure |
Y061: -0.08~0MPa Stability: 0.05% Type: Pneumatic pressure |
