Portable Air Pressure Gauge Pneumatic Calibration Hand Pump

Description portable air Pneumatic calibration hand pump

XY-2006A portable gas pressure source is used in a desktop or a piston gauge pressure source, pressure calibration sets and other electric products, these products are generally bulky and not bring parity to the scene, and foreign products using hand-portable clamp . Pressurized strenuous, complex operation, combined with the above reasons, the company recently developed an easy to carry, simple and effortless operation of the XY-2006A portable gas pressure source.

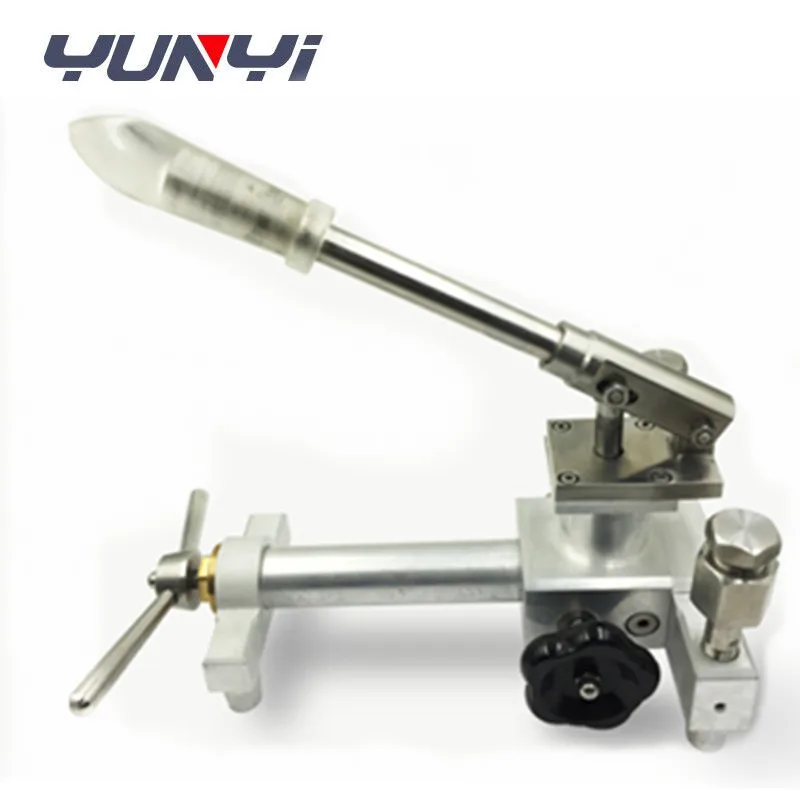

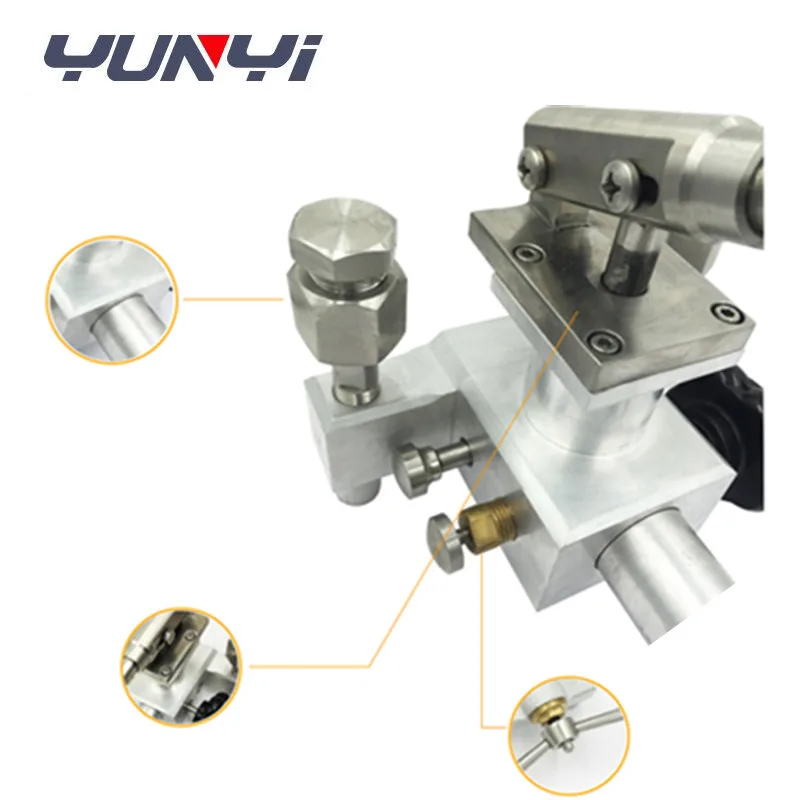

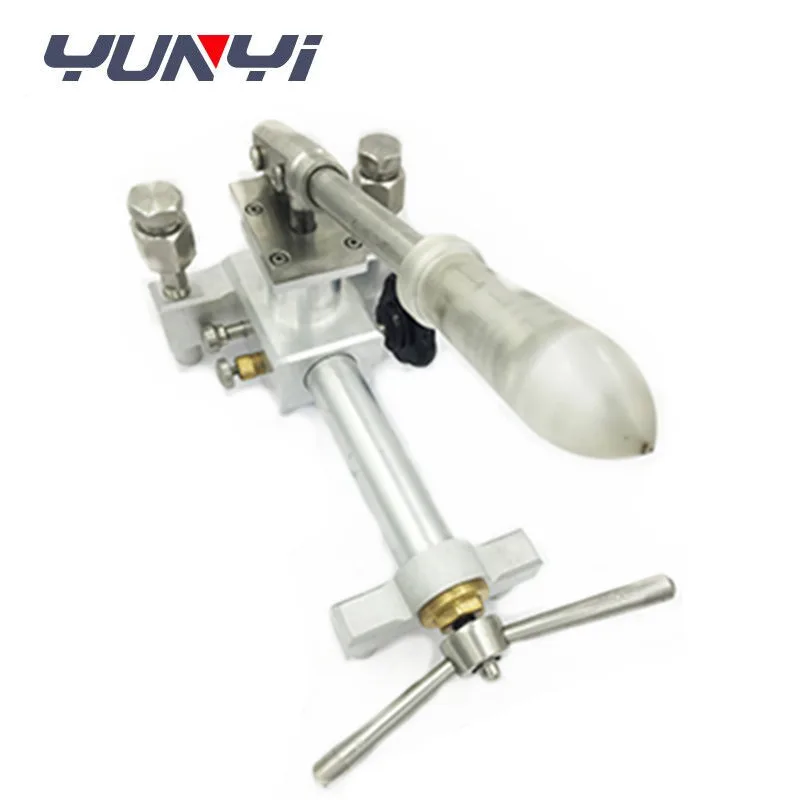

Detailed Images  portable air pressure gauge Pneumatic calibration hand pump

Specification portable air pressure gauge Pneumatic calibration hand pump

Create pressure range: (-0.1 ~ 0 ~ 6) MPa

Dimension: 270mm × 150mm × 150mm

Fine adjustment: 0.1kPa

Weight: less than 2kg

Medium:Air

Features  portable air pressure gauge Pneumatic calibration hand pump

Simple structure, effortless operation

Easy to carry, easy to leak, easy maintenance

Moistureproof

Can produce negative (-0.1 ~ 6MPA)

Can be connected to multiple ranges using intelligent digital pressure calibrator

Notes portable air pressure gauge Pneumatic calibration hand pump

1). The inspected Instrument must be cleaned if with impurities beforecalibration.
2). The inspected instrument must be cleaned by carbon tetrachloride solution if this equipment containing strong corrosive medium.

3). The thread with damage of inspected instrument, the output maybe leak. Please configure my company joints and the sealing     aluminum pad.
4). Closed every output port when not use, tight Filling Port (1), place the calibrator in clean and dry place.
5). This calibrator must not used with with other calibator, and it must not exceed the rated pressure.
