Y039 Pneumatic Hand Pump Pressure Calibrator

Y039 pneumatic hand pump pressure calibrator

Description pneumatic pressure calibrator handheld test pump

Y039 Hand-operating Pressure Pump is a liquid hand pressure pump. It is used to calibrate the pressure instruments of the industrial process in the field and/or control room. Also it can be used as a pressure generator for pressure instruments, All kinds of pressure transmitter and pressure gauge and other pressure instrument that with a pressure below 1.6mpa, can be calibrated by this pressure pump.

Detailed Images

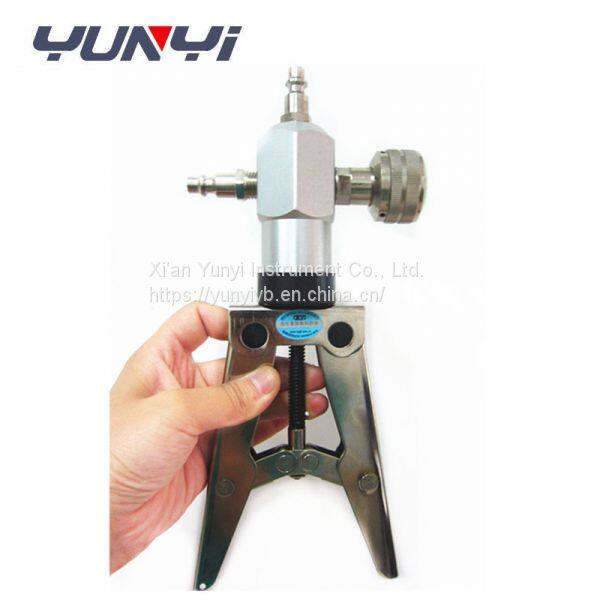

Y039 pneumatic hand pump pressure calibrator

Specification

pneumatic pressure calibrator handheld test pump

1. Working pressure: 0-1.6MPa

2. Working temperature: -20 to 50℃

3. Dimension: 220x110x55mm

4. Weight: 0.5kg

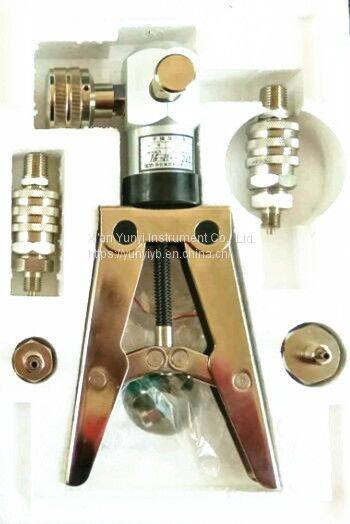

5. Accessory

  (1) Joint:     2pcs

  (2) Quick connector:  2pcs

  (3) Joint cap     4pcs

(4) Seal ring    4pcs

(5) Seal gasket    2pcs

(6) 6x1 nylon hose      2pcs

 (7) Internal six angle screw wrench     1pc

Features

pneumatic pressure calibrator handheld test pump

The hand-operating pressure pump is portable, light weight, wide temperature range, easy to use. There is a trim adjustment handle valve and switch valve on the pump, so that it is easy to adjust the pressure or exhaust the air. There are also matched fast connection, nylon hose, instrument connector etc, used to connect the calibrated instrument and the standard gauge. The pump is easy to carry and to connect with the calibrated instruments in the field, so the operator can calibrate the instrument fast and simple.

Selection Guide Wholesale water pressure calibration hand pump
