Home > Products > pressure calibrator > multifunction calibrator oxygen pressure calibration pneumatic air pressure gauge calibration procedure
multifunction calibrator oxygen pressure calibration pneumatic air pressure gauge calibration procedure
- 100 Piece / Pieces per Month
- China
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow
- 10 days
Product Details
Brand Name: | Yunyi | Place of Origin: | China | Model Number: | XY-40/60S |
Power: | Other, pneumatic | Usage: | Other, calibrator |
Product Description
Description Chinese oxygen pressure gauge regulator & pressure regulator

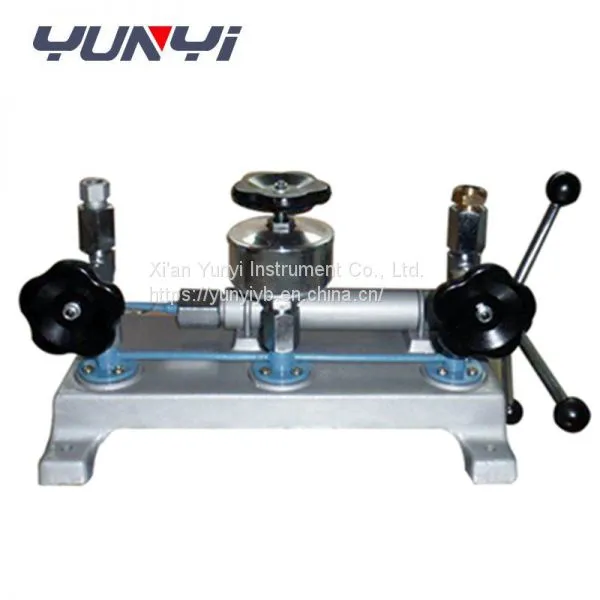

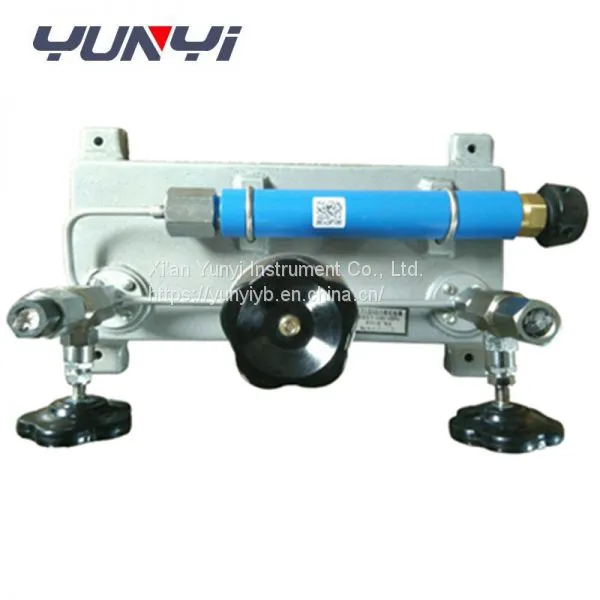

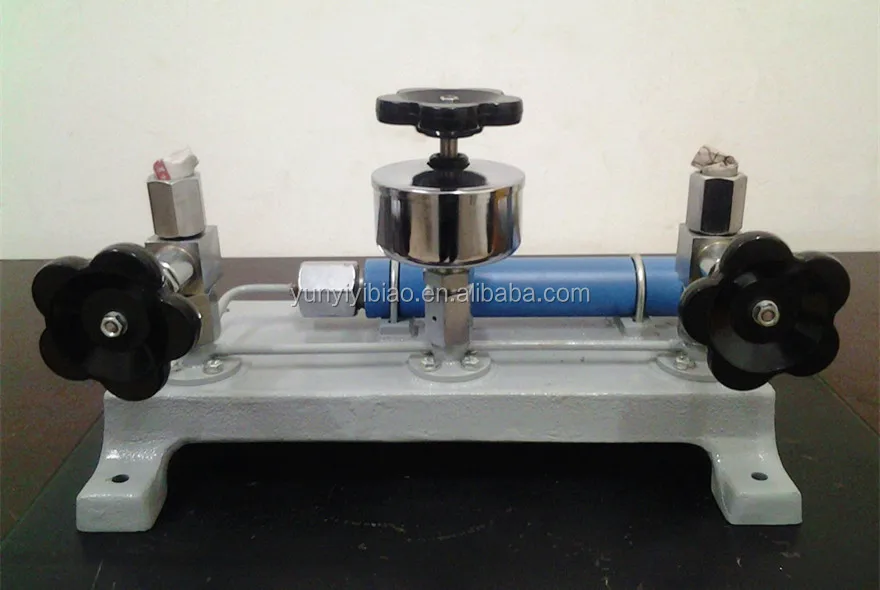

Pressure gauge calibrator also known as a pressure gauge calibration pump,The principle is movement of the piston rod increases pressure ,to achieve the aim of compression.
Pressure gauge calibration is used for testing general pressure gauge, max calibration pressure can reach 60 MPA, vacuum calibration can reach -0.08 MPA.
In laboratory or measuring room generally matched with precision pressure gauge (accuracy can reach 0.25 ) to calibrate the general pressure gauge (accuracy is 1.6 or 2.5)
Specification Chinese oxygen pressure gauge regulator & pressure regulator
Type | Pressure gauge calibrator | Dual calibrator |
Picture |
| |
Name | Pressure Gauge Calibrator | Oxygen & Pressure Gauge Dual Calibrator |
Model | XY-6/60(271.11/271.01) | XY-40/60S(LYL-60) |
Work Condition | On site or laboratory | On site or laboratory |
Pressure range | -0.082~6MPa 0~60MPa | 0~40MPa 0~60MPa |
Fine Adjustment | 10Pa | 10Pa |
Medium | Hydraulic oil or castor oil | Hydraulic oil, castor oil and pure water |
Features | Reliable, save effort and buck stable, easy to carry, easy to maintain, nearly no leak | Struts type Pressure, save energy, high efficiency pressure creation, durability |
Pressure connection | M20*1.5(2pcs) | M20*1.5(3pcs) |
Volume | 240*120*130mm | 470x320x298mm |
Weight | 16KG | 35KG |
Accessories | Certificate*1, warranty card*1, manual*1, Wearing parts (several) | Certificate*1, warranty card*1, manual*1,Wearing parts (several) |
Warranty period | 24 months | 24 months |
Packing and Shipping Chinese oxygen pressure gauge regulator & pressure regulator
Related products air pressure gauge calibrator dual oxygen pressure gauge calibrator
Company Information Chinese oxygen pressure gauge regulator & pressure regulator
FAQ Chinese oxygen pressure gauge regulator & pressure regulatorQ:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
