Please feel free to contact with my viber: +86-18561530469, i will show you all the details.
SK160 two roll mixing mill
Technical Parameters of rubber compound mixing machine :
Model |
XK-160 |
Roll diameter (mm) |
160 |
Roll working length(mm) |
320 |
Front-roller speed(m/min) |
9 |
Roller ratio |
1:1.35 |
Max roller inter range(mm) |
4.5 |
Once rubber feeding amount(Kg) |
1-2 |
Motor power(KW) |
5.5 |
Overall dimensions(mm) |
1133×920×1394 |
Weight (Kg) |
~1200 |
Features & Advantages of rubber mixing mill machine :
1.The main parts of the machine adopt welded steel structure,the base is welded from H type steel as a whole,to make the machine be convenient to install and repair,and surable.
2.The roller bearing has oil seal device,can be done many kinds of lubricating methods such as grease cup,grease pump,thin oil cup and thin oil pump cycle and so on..
3.The roller bearing adopts self-aligning roller bearing,except it can keep the running positional accuracy of the rollers and the accurate roller gap long time,the biggest advantage is energy saving:from the actual test we get that the bearing can save more than 20% than using nylon sleeve and other sliding bearing,if 8 hours’ working time per day,it can save about 20000kwh per year,remarkable economical benefit.
4.This machine adopts hard tooth surface cylindrical gear reducer to run the rear roller directly(while the traditional machine adopts open big and small gears for transmission),so this makes the machine be compact structure,good-looking appearance,easy maintain,stable running,low noise,difficult to wear,long service life and so on.
5.With braking device,when emergency incident happens,press the stop button to brake hard,safe and reliable.
6.The roller gap adopts worm and gear to adjust,operation and effort,convenient and reliable.
7.This open mill rubber mixing machine adopts electric control to adjust rubber guide gap,with the features of convenientand accurate on operation,save both time and labour,civilized production etc.
Working Principle of rubber mixing mill machine :
The Glue Stock on the two rollers rotating reversely with different linear speed is pulled in the nip of the two rollers by the frictional force,with the reduction of the friction surface through the rollers,it is cut and extruded strongly;in the mean time,the chain scission and oxidation occurs under a certain temperature condition,increasing its plasticity,the aim of milling achieve.
Export Seaworthy Simple Packing with PE Film

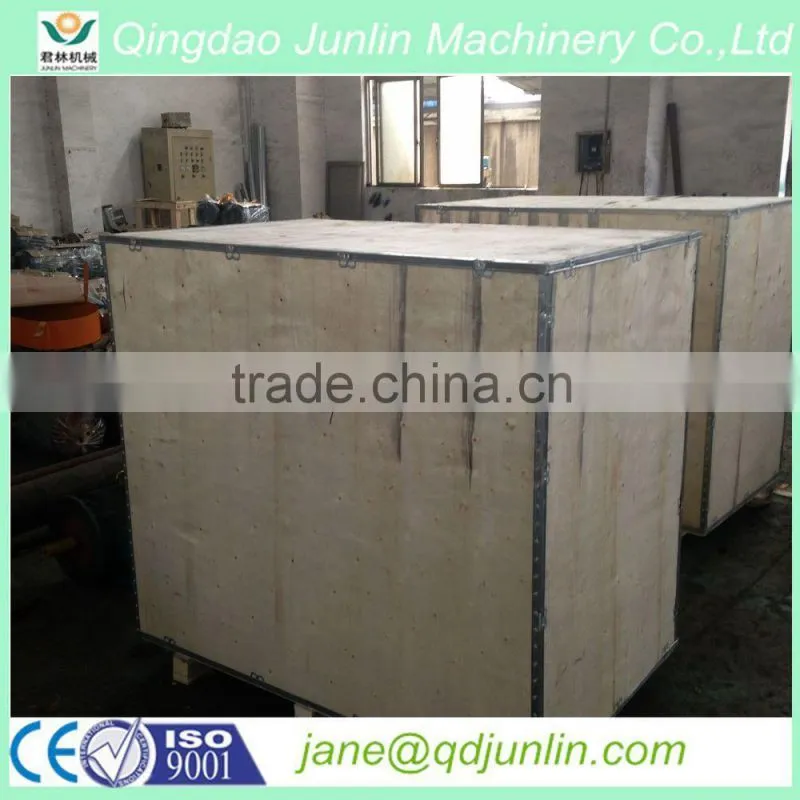

Or by Wooden Case Outside while PE Film as Inner
Or As Per the Customers' Request
*We furnish the best pre-sale and after-sale service,no matter whether you buy products from our factory at last,it is our pleasure to furnish you any help during your purchase;
*Manufacture Factory with Rich Production Experience
*Superior Quality at Reasonable Price
*365 Days' Ongoing Service
*Comprehensive Technical Support

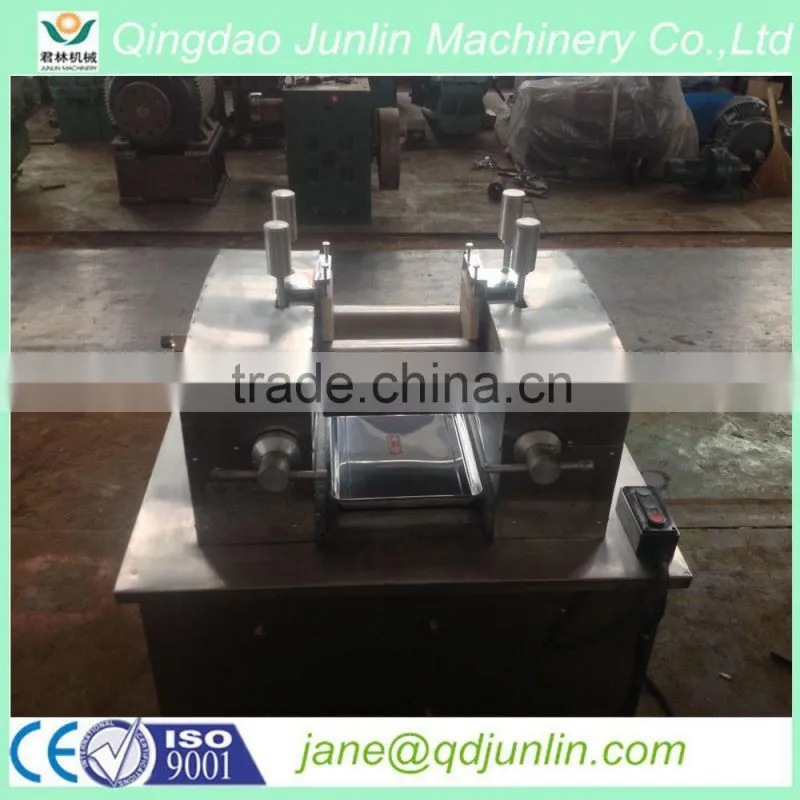

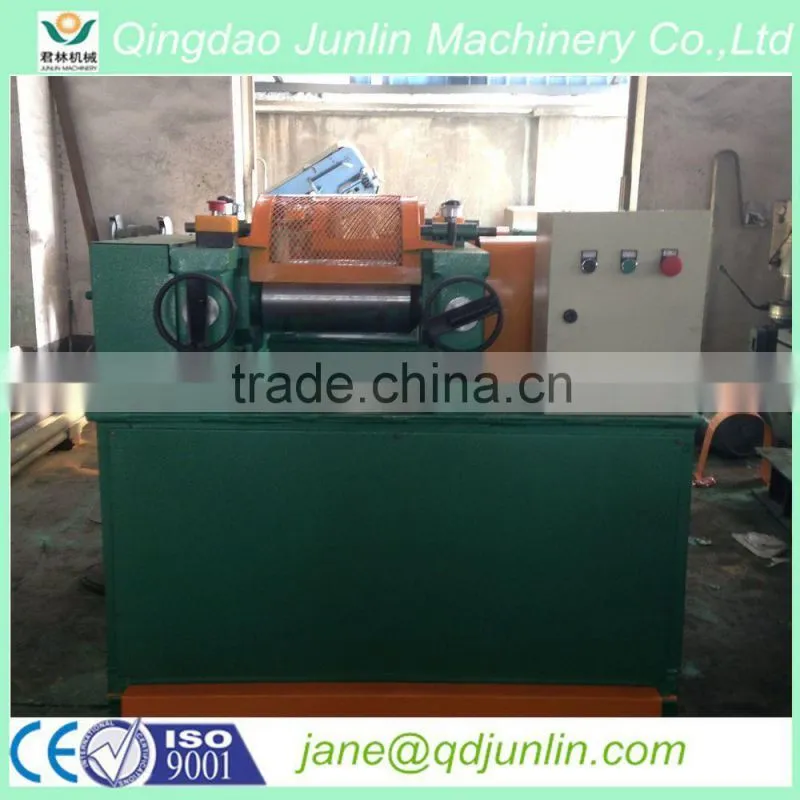

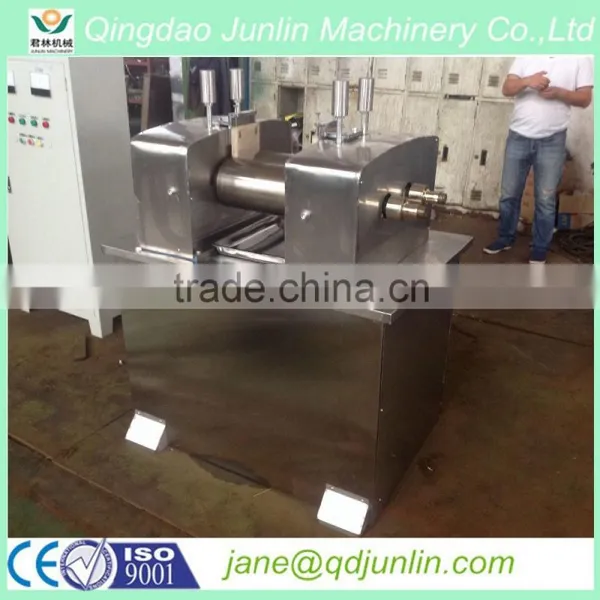

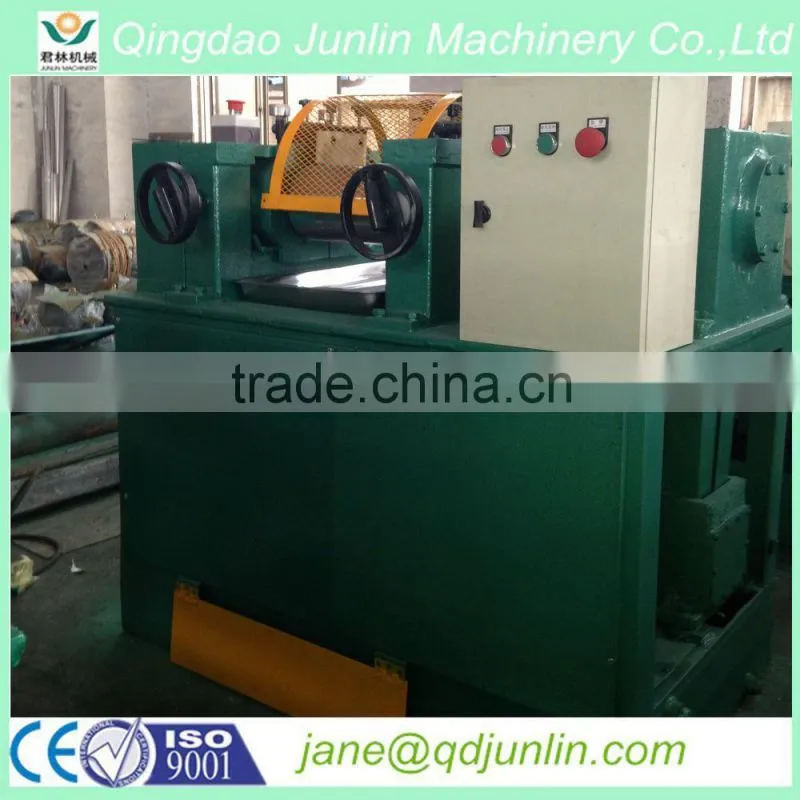

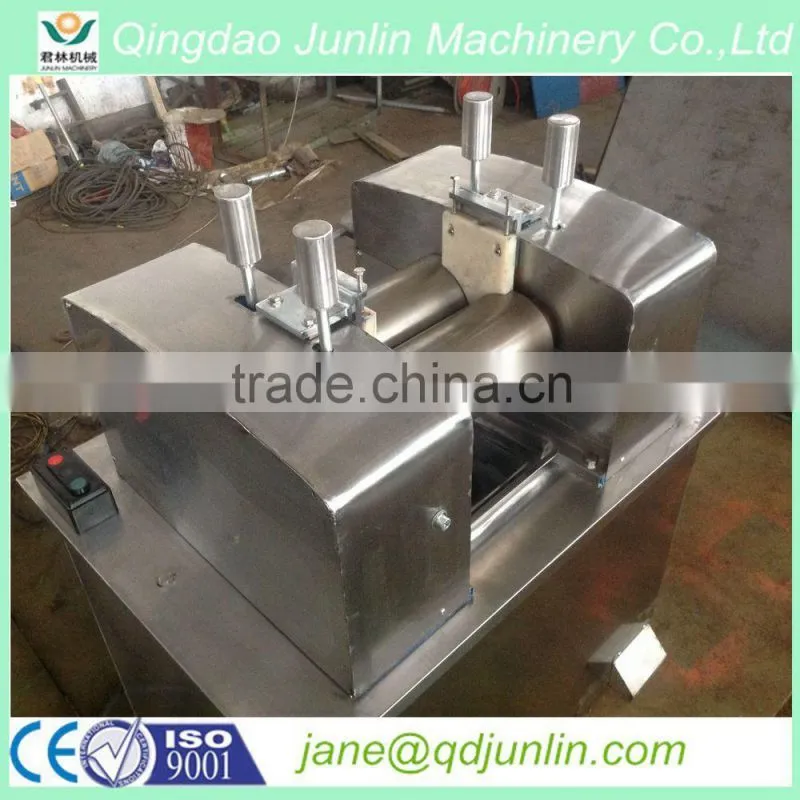

Pictures of the machine:

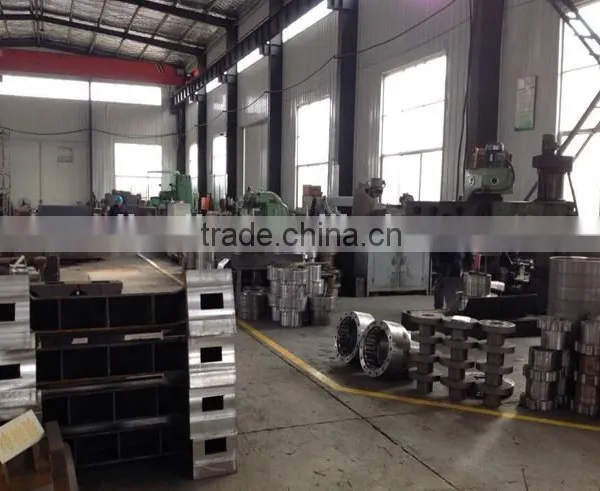

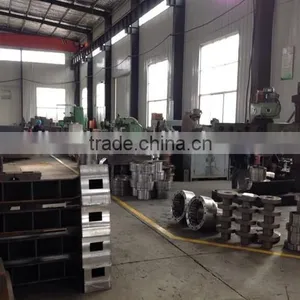

Processing workshop show;

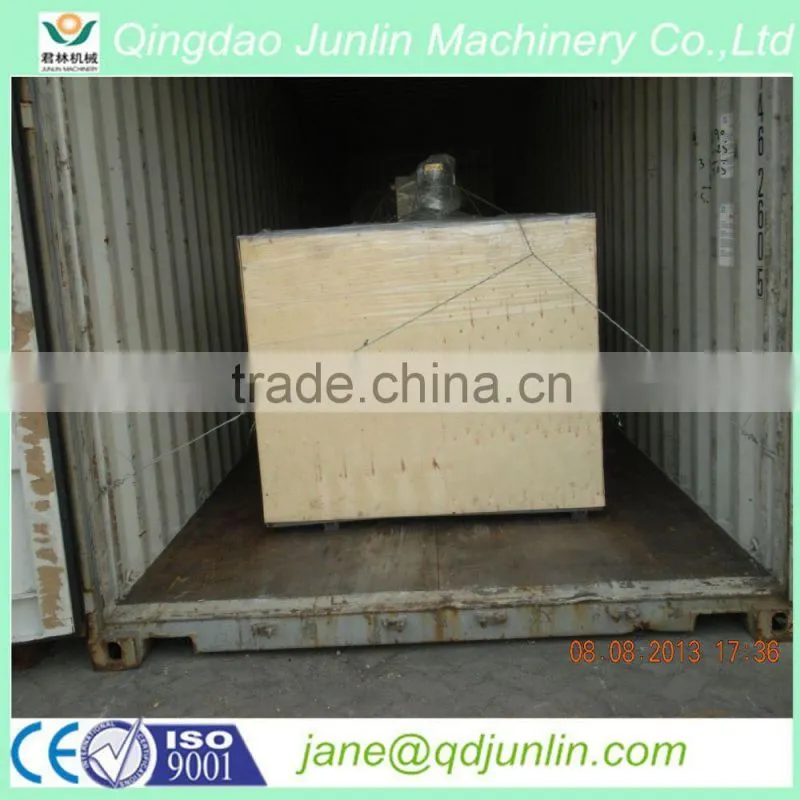

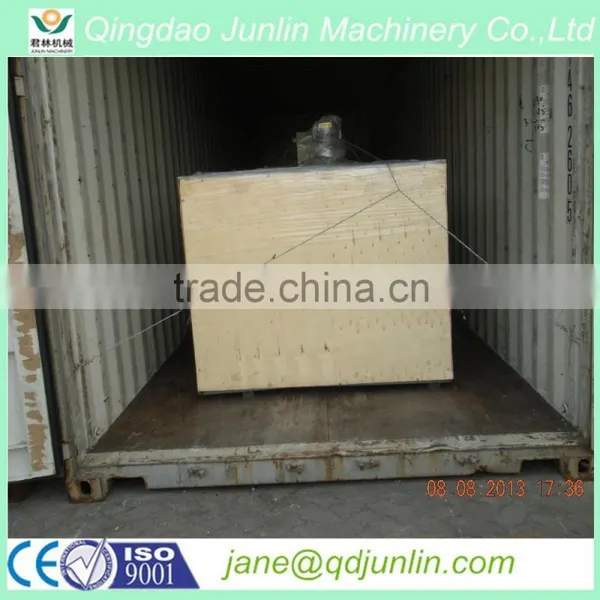

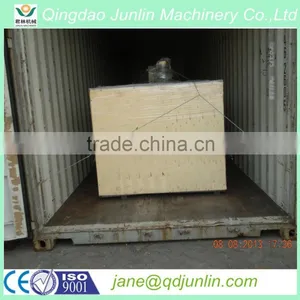

Shippment picture

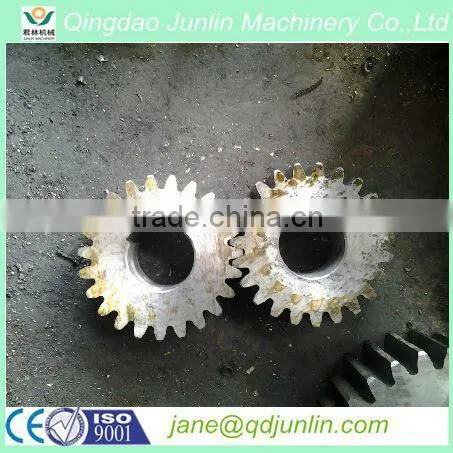

The main parts of the machine:
After-sales service:
One year guarantee for whole machines
24 hours technical support by email
Calling or door - to -door service
Provide videos for each machine
we will send one engineer to your factory to guide installation and test running the production line, until you can operate the machine skilled.
Our customer:
Our certificate:
CE ISO9001 SGS
Welcome to send inquiry and visit us to check the quality!
