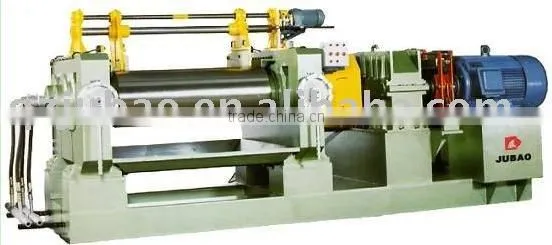

EVA Rubber/open/two Rolls Mixing Mill
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Static Mixers
Product Type:
Fertilizer
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SBR Plastic Sheet Foaming Production LineUS$ 15,870 - 107,940MOQ: 1 Set -
PE/PC/PS Open/two Rolls/rubber Mixing MillNegotiableMOQ: 1 Set
-
RUBBER Plastic Sheet Foaming MachineUS$ 15,870 - 107,936MOQ: 1 Set
-
EVA Plastic Sheet Foaming MachineUS$ 15,873 - 92,000MOQ: 1 Set
-
EVA Rubber/open/two Rolls Mixing MillUS$ 1 - 100,000MOQ: 1 Set
Condition
New
Mixer Type
Static Mixers
Product Type
Fertilizer
Place of Origin
Fujian, China
Brand Name
JUBAO
Model Number
JB-K
After-sales Service Provided
Engineers available to service machinery overseas
Features:
- The roll is made of chilled cast iron of vanadium and titanium alloy, so the surface is hard and wearable; the internal processing can make the temperature of the roll surface well-proportioned.
- This machine has overload protection devices, and the major components cannot be damaged because of over loading.
- The transmission system adopts either hard tooth flank dual axis reducer or NGW hard tooth flank planet reducer, which has compact structure, low noise and high efficiency.
- The base of the machine is a complete frame, so it’s very convenient for installation.
| MODEL | K100 | K200 | K250 | K360 | K400 | K450 | K550 | K560 | K660 |
| Diameter Of Rolls (mm) | 100 | 200 | 250 | 360 | 400 | 450 | 550 | 560 | 660 |
| Working Length Of Rolls(mm) | 250 | 500 | 620 | 900 | 1000 | 1200 | 1500 | 1530 | 2130 |
| Working Speed Of Front Roll(m/min) | 5.8 | 9.42 | 14.9 | 17.4 | 19.3 | 23.1 | 28.6 | 28 | 12 |
| Friction Ratio Of Rolls | 1:1.2 | 1:1.2 | 1:1.1 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.29 | 1:1.2 | 1:1.08 |
| Max Gap(mm) | 4 | 6 | 8 | 10 | 10 | 10 | 15 | 15 | 15 |
| Nip Regulating Way | Handle | Handle | Handle | Handle | Handle | Handle/ Auto | Handle/ Auto | Handle | Auto |
| Bath Capacity(kg) | 1.2 | 10 | 10-15 | 20-25 | 25-35 | 30-50 | 50-60 | 50-60 | 120-140 |
| Power(kw) | 3 | 7.5 | 15 | 30 | 45 | 55 | 90/110 | 110 | 90 |
| Revolution(r/min) | 1420 | 1440 | 730 | 980 | 740 | 980 | 740 | 740 | 740 |
| Reducer | Turbo Reducer | Planet-cycloid Reducer | NGW Planetary Gear Reducder or Gear Double Output Reducer | ||||||
| Reduction Ratio | 43 | 43 | 35 | 49.7 | 38 | 47.2 | 34.65 | 35.6 | 126.2 |
| Overall Dimensions(mm) | 1000×530×1041 | 1700×950×1501 | 3400×1270×1621 | 4140×1770×1701 | 4490×1770×1751 | 5570×1900×1751 | 6260×2330×1781 | 6290×2330×1781 | 7500×2630×2061 |
| Wright(kg) | 600 | 2000 | 4200 | 7600 | 9000 | 11500 | 20000 | 20400 | 26500 |
We have been in this field for many years and we are in great confidence about our product and after-sale service .
