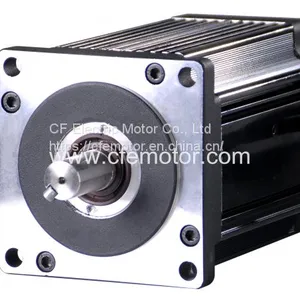

HYBRID STEPPING MOTOR 42HT SERIES
General Specifications：
Step Angle-------------------------------------------------------- 1.2°(full step)
Step Angle Accuracy---------------------------------±5%(full step, no load)
Resistance Accuracy------------------------------------------------------±10%
Inductance Accuracy------------------------------------------------------±20%
Temperature Rise----------------90℃ Max(rated current, 2 phases on)
Ambient Temperature Range------------------------------ -20℃∽+50℃
Insulation Resistance------------------------------ 100MΩ Min. 500VDC
Dielectric Strength---------------------------- 750VAC 50Hz 1mA 1 Minute
Insulation Class-------------------------------------------------- F Class(155℃)
Electrical Specifications:
Model |
L Motor Length (mm) |
Holding Torque (N.m) Min. |
Rated Current (A) |
Phase Resistance (Ω) |
Phase Inductance (mH) |
Rotor Inertia (kg.cm²) |
Lead Wire |
Detent Torque (N.cm) Max. |
Motor Weight (kg) |
42HT10042 |
100 |
8 |
4.2 |
1.17 |
10.87 |
5.83 |
3 |
30 |
4.5 |
42HT17148 |
171 |
16 |
4.8 |
2.25 |
27 |
14.28 |
3 |
60 |
8.3 |
42HT21252 |
212 |
20 |
5.2 |
2.17 |
33.73 |
19.16 |
3 |
70 |
10.4 |
*Shown in the table is the representative product. It can be customized according to the requirements of users.
