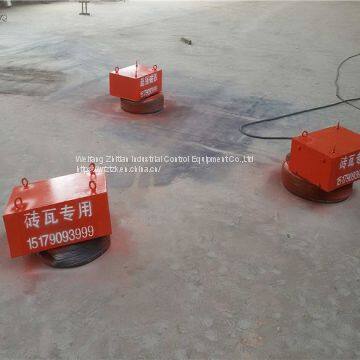

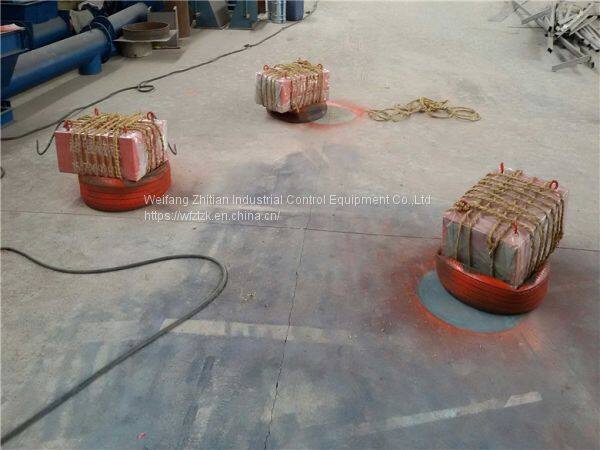

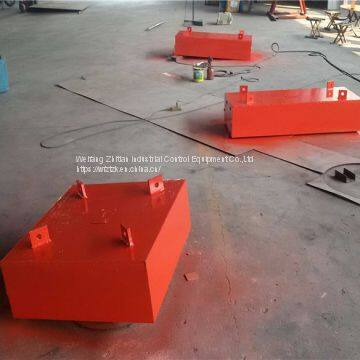

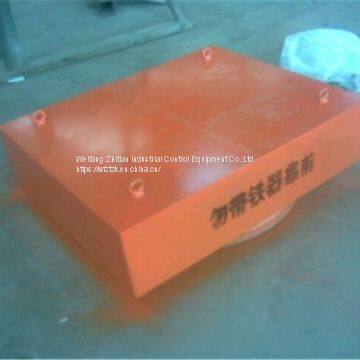

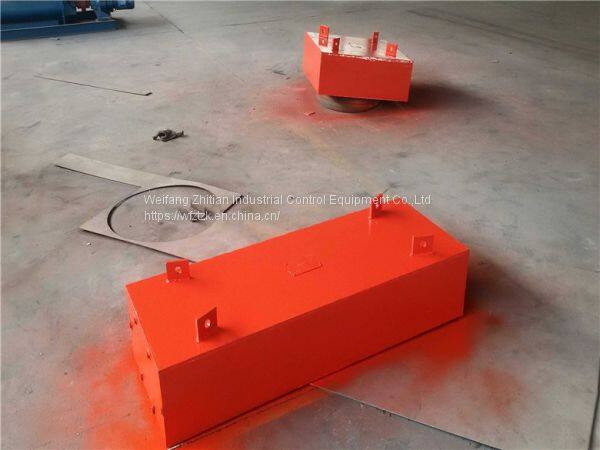

Rcyb Series Suspension Permanent Magnetic Separator
RCYB Series Suspension Permanent Magnetic Separator
Application:
For belt conveyors, vibrating conveyors and feeding chutes to eliminate the waste iron from non-magnetic materials.
Technical Feature:
Strong magnetic field intensity, super iron attraction.
Easy to install and convenient to operate, high efficiency, stable performance and free maintenance.
All technical indicators come up to Standards of JB/T8711-2006.
Technical Data
Model | Belt Width (mm) | Suspension Height ≤(mm) | Materials Thickness ≤(mm) | Magnetic Intensity (mT) | Belt Speed ≤(m/s) | Weight (Kg) | Dimension (mm) | |||
| L | D | H | ||||||||
| RCYB-4 | 400 | 130 | 80 | 63 | 2.5 | 115 | 400 | 300 | 210 | |
| RCYB-5 | 500 | 150 | 100 | 63 | 180 | 500 | 400 | 230 | ||
| RCYB-6 | 600 | 180 | 130 | 63 | 300 | 600 | 500 | 250 | ||
| RCYB-6.5 | 650 | 200 | 150 | 65 | 450 | 650 | 600 | 250 | ||
| RCYB-8 | 800 | 250 | 200 | 70 | 580 | 800 | 700 | 250 | ||
| RCYB-10 | 1000 | 300 | 250 | 70 | 880 | 1000 | 800 | 250 | ||
| RCYB-12 | 1200 | 350 | 300 | 70 | 1100 | 1200 | 1000 | 270 | ||
| RCYB-14 | 1400 | 400 | 350 | 70 | 1700 | 1400 | 1300 | 270 | ||
| RCYB-16 | 1600 | 450 | 400 | 70 | 2200 | 1600 | 1500 | 270 | ||
