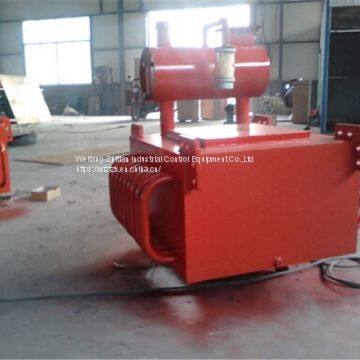

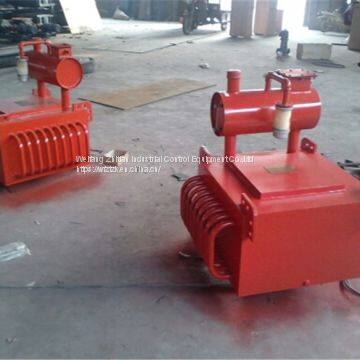

Rcde Oil-Cooling Electromagnetic Separator for Belt Conveyor
US$ 500 - 3000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Zhitian
Place of Origin:
China
Model Number:
RCDE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin/Shanghai
Delivery Detail:
45 days
Related Products
-
Rcyb Series Suspension Permanent Magnetic SeparatorUS$ 500 - 3000MOQ: 1 Piece -
Rcdb Dry Electromagnetic Separator for Removing Iron in Cement/Power/Chemical/Coal Mine/MetallurgyUS$ 500 - 3000MOQ: 1 Set
-
Rcyd Self-Cleaning Permanent Magnetic Separator for Cement, Chemical, CeramicUS$ 500 - 3000MOQ: 1 Piece
-
Rcdd Self-Cleaning Electromagnetic SeparatorUS$ 500 - 3000MOQ: 1 Piece
-
Gjt-F Metal DetectorUS$ 1800 - 3000MOQ: 1 Piece
Brand Name
Zhitian
Place of Origin
China
Model Number
RCDE
Shape
Other, square
Type
Solenoid
Application
Industrial Magnet
Composite
NdFeB Magnet
The RCDE series of oil-cooling electromagnetic iron separators adopt advanced transformer technology in their inner parts, release hotness by oil circulation in the transformer which in a wholly sealed structure. With the advantages of strong magnetic force,against rain and dust , anti corrosion,continuous working and long service life, the oil-cooling electromagnetic iron separators can protect the grinder, the crusher and so on reliably.
The main performance and indexes of the separator can meet or exceed JB/T7689-2004, and the products can separate the weight of 0.1-25kg ferromagnetic substance from non-magnetic materials.
Technical Parameters
| NO. | Model | Adaptive belt width (mm) |
Suspension height (h=mm) |
Material depth (≤mm) |
Magnetic intensity (≥mt) |
Belt speed (m/s) |
Existing power (≤kw) |
Weight (kg) |
Appearance size (mm) |
||||
| A | B | C | D | E | |||||||||
| 1 | RCDE-4 | 400 | 100 | 60 | 70 | 2.5 | 0.6 | 300 | 500 | 620 | 350 | 250 | 400 |
| 2 | RCDE-5 | 500 | 150 | 100 | 70 | 1 | 500 | 670 | 760 | 480 | 330 | 530 | |
| 3 | RCDE-6 | 600 | 175 | 125 | 70 | 1.5 | 650 | 775 | 835 | 588 | 430 | 530 | |
| 4 | RCDE-6.5 | 650 | 200 | 150 | 70 | 2 | 750 | 795 | 855 | 590 | 440 | 550 | |
| 5 | RCDE-8 | 800 | 250 | 200 | 70 | 3 | 1150 | 1050 | 930 | 800 | 680 | 580 | |
| 6 | RCDE-10 | 1000 | 300 | 250 | 70 | 4.5 | 1400 | 1260 | 990 | 1160 | 860 | 650 | |
| 7 | RCDE-12 | 1200 | 350 | 300 | 70 | 6 | 2780 | 1460 | 1190 | 1260 | 1070 | 730 | |
| 8 | RCDE-14 | 1400 | 400 | 350 | 70 | 8.5 | 4200 | 1700 | 1280 | 1500 | 1340 | 800 | |
| 9 | RCDE-16 | 1600 | 450 | 400 | 70 | 12.5 | 5700 | 1950 | 1370 | 1850 | 1630 | 860 | |
| 10 | RCDE-18 | 1800 | 500 | 450 | 70 | 18 | 7300 | 2170 | 1490 | 2050 | 1880 | 950 | |
| Note:All themodels have T1,T2,T3design whose magnetic intensity is higher than standard.The magnetic 90mt,120mt and 150mt separately, Discard iron belt can be equipped with armor. | |||||||||||||
