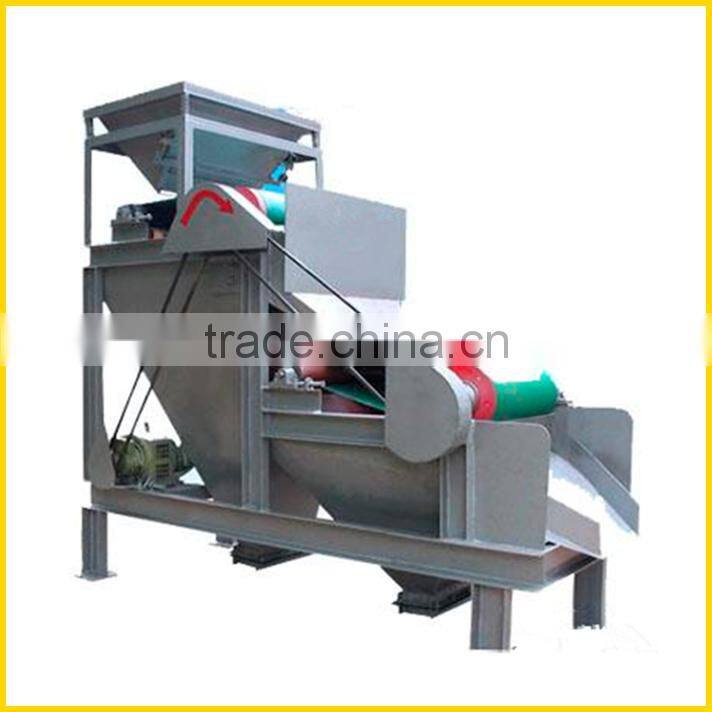

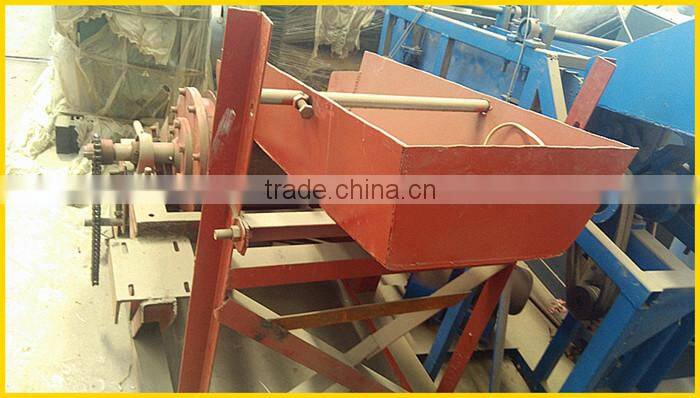

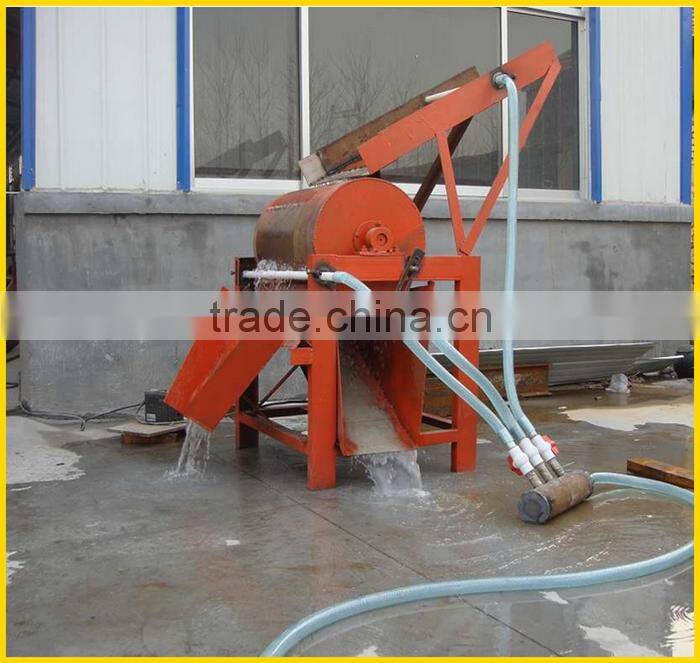

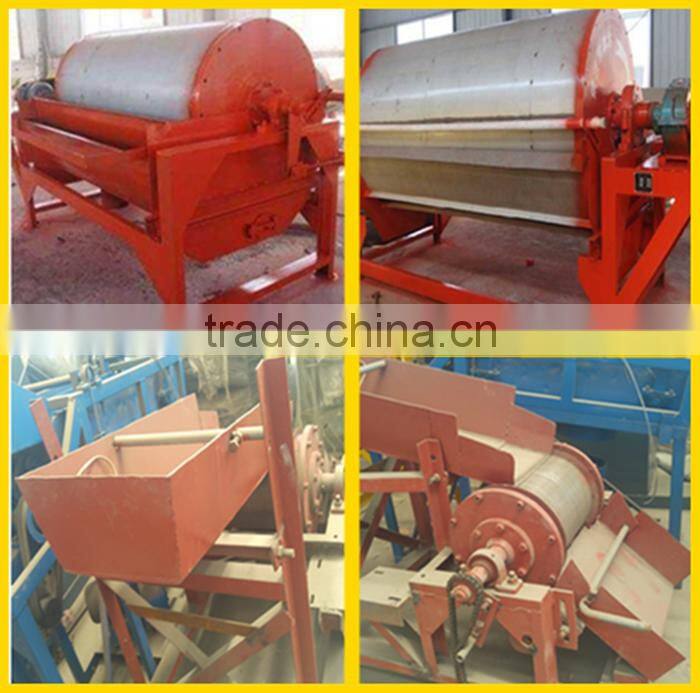

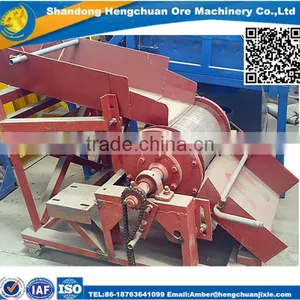

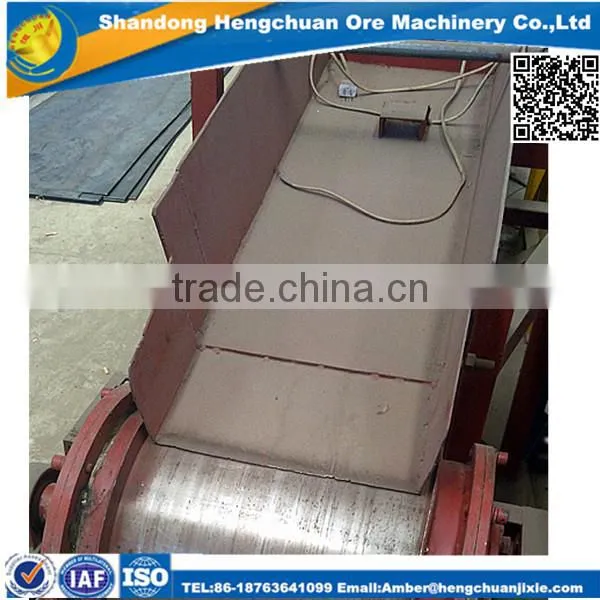

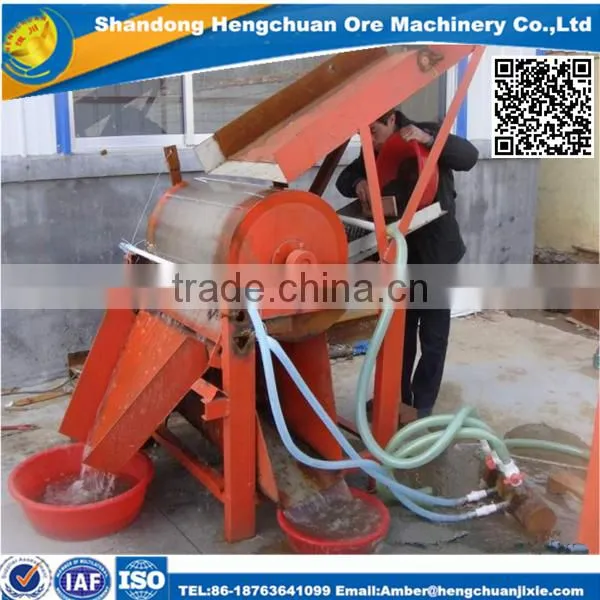

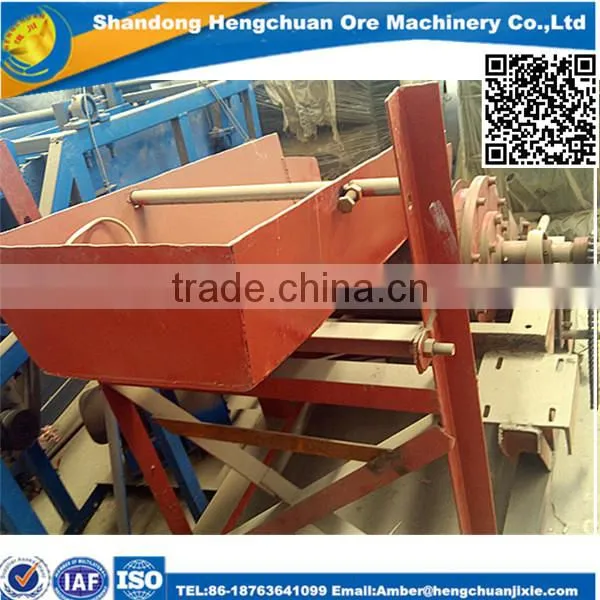

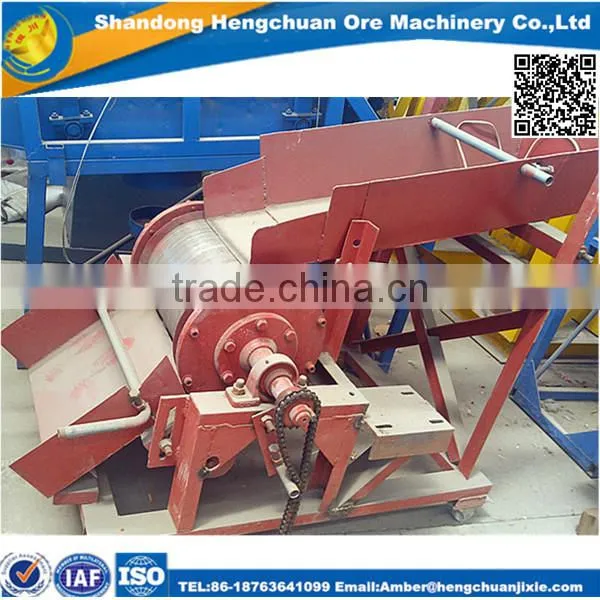

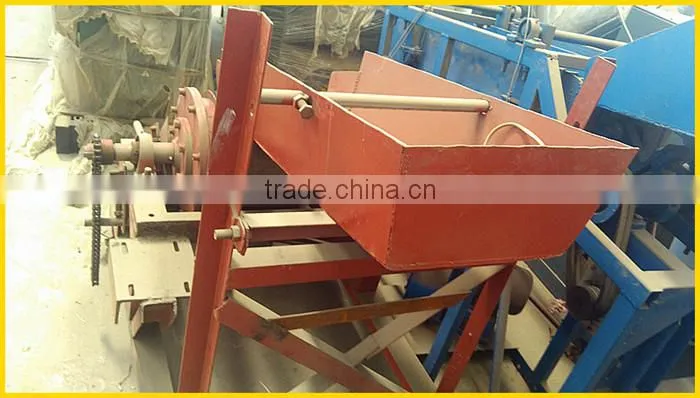

Mining Wet Magnetic Separator/Laboratory Magnetic Separator

1.Introduction of Mining Wet Magnetic Separator/Laboratory Magnetic Separator

Mining Wet Magnetic Separator/Laboratory Magnetic Separator is generally a low cost method of recovery, unless high intensity separators are required. The electro-magnetic high intensity separators that produce 20, 000 gauss, tend to be expensive. However, the rare

earth

magnetic separators are relatively inexpensive and can produce magnetic fields around 6, 000 gauss.

So, whenlooking for a process to recover valuable minerals, magnetic separation should not be

overlooked, if some of the material is magnetic or PARA-magnetic.



2.Feature of Mining Wet Magnetic Separator/Laboratory Magnetic Separator

1.Magnet iron remover machine adopts high-quality ferrite materials or compounded with magnets
2.Average magnetic induction intensity for tube sheet is 100~600mt
3.Simple structure, large capacity, convenient operation, easy maintenance, etc
4.  If you have the special requirements, we can custom it for you!



3.Principle of Wet Magnetic Separator/Laboratory Magnetic Separator

The material evenly to the cylinder upper magnetic field is rotating by electromagnetic vibration feeder, magnetic substances are adsorbed on the surface of the cylinder, and the cylinder to rotate together. Because the magnetic particles and non magnetic particles in the magnetic field, the magnetic force, magnetic particles adsorbed on the surface of the cylinder by the magnetic force in magnetic field, magnetic field to the fee is unloaded, non-magnetic and weakly magnetic particles due to their different magnetic force, leave trace is different. Magnetic stronger off Vietnam near the drum. Around the direction of the alternating magnetic field, and in a certain angle and periodic oscillation, magnetic material in magnetic field from the materials do roll swing on the surface of the roller.



4.Specification of Mining Wet Magnetic Separator/Laboratory Magnetic Separator

Model	Roller size (diameter length mT)	Roller surface magnetic induction density (mT)			Processing capacity		Motor power kw	Roller rotating speed r/min	Total weight kg
		Pole geometric center value	Sweeping and separarting area average value	Highest magnetic induction density	t/h	m3/h
CTB-718	750*1800	120	155	180	20~45	72	3	35	2100
CTB-918	900*1800	148	165	190	25~55	90	4	28	2900
CTB-924	900*2400	148	165	190	35~70	110	4	28	3600
CTB-1018	1050*1800	148	165	190	40~75	120	5.5	22	4000
CTB-1021	1050*2100	160	240	180	45~88	140	5.5	22	4500
CTB-1024	1050*2400	148	165	190	52~100	160	5.5	22	5000
CTB-1030	1050*3000	160	240	280	65~125	200	7.5	22	6200
CTB-1218	1200*1800	160	240	240	47~90	140	5.5	19	5800
CTB-1224	1200*2400	148	165	165	82~120	192	7.5	19	6200
CTB-1230	1200*3000	148	165	165	80~150	240	7.5	19	7200
CTB-1530	1500*3000	180	240	240	90~170	270	11	14	8900
CTB-1540	1500*4000	180	240	240	115~220	350	11	14	9900



5.Types of Mining Wet Magnetic Separator/Laboratory Magnetic Separator

1. According to the magnet type: permanent magnetic separator and electromagnetic iron removing machine.
2. According to mine classification: dry and wet to dry iron removing machine, wet iron remover.
3. According to the classification of magnetic system: drum magnetic separator machine, roll type magnetic separator machine and roller type magnetic separator machine.
4. According to the number of magnetic system classification: single drum magnetic separator, magnetic separator with double cylinder and multi cylinder magnetic separator.
5. According to mine classification: the upper to lower to mine ore separator, magnetic separator.
6. According to the strength of the magnetic field classification: weak magnetic separator, magnetic separator and magnetic separator.
7. According to the classification of magnetic system: open type magnetic separator, closed magnetic

Packing:By container for Mining Wet Magnetic Separator/Laboratory Magnetic Separator

Shipping:Qingdao Port

1. Shandong Hengchuan company signs a long-time after-sale service agreement with customers.
2.. Shandong Hengchuan company provides rational and practical design according to customers' request.
3. Shandong Hengchuan company sends experienced engineers to assemble and test the machine within the period as agreed in the contract.
4. Within warranty period, Shandong Hengchuan company provides free repair if quality problems emerge.
5. Shandong Hengchuan company provides free training of operation and maintenance for customers.
6. Shandong Hengchuan company supply high quality accessories in low price.
7. Shandong Hengchuan company make an excellent filing of customers for long-term following-up service. Any question or problem about the products can be answered via online support

1.Our Factory

 Qingzhou Hengchuan Ore Machinery Co.,ltd,was established in 2002,a leading ore machinery manufacturer in China,covering an area of 20000 square meters,have 6 engineers,20 technicians and 100 workers.
Our main products:Gold Mining Machinery,Magnetic separators and all kinds of mining dredger etc.

2.Our customer

Our main market is domestic,Africa and Southeast Asia,such asCameroon,Ghana,Mali,Zimbabwe,Malaysia,Indonesia and Philippines etc.

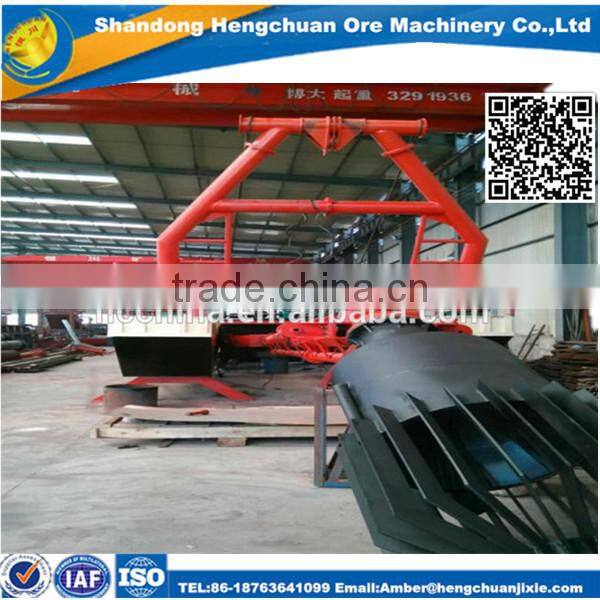

So much customers interested in our Cutter suction dredger and have buy it.

3.certifications

In order to give you a responsible quotation, you can inform us the following information
1).Type of minerals to be mined?
2).Type of deposit (Primary/hard rock, or secondary/placer)?
3).Physical characteristics of the ore (sandy, with light clay or heavy clay)?
4).Intended feed capacity (Tons/hour)?
