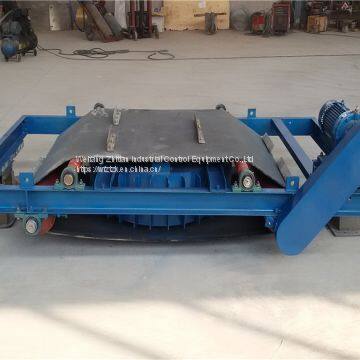

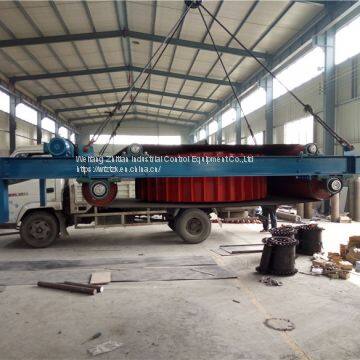

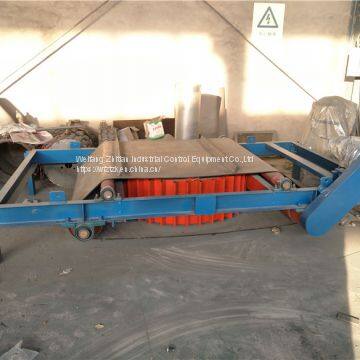

Home > Metallurgy, Mineral & Energy > Magnetic Material > NdFeB Magnet > Rcdd Self-Cleaning Electromagnetic Separator
US$ 500 - 3000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Zhitian
Place of Origin:
China
Model Number:
RCDD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin/Shanghai
Delivery Detail:
45 days
Related Products
-
Rcde Oil-Cooling Electromagnetic Separator for Belt ConveyorUS$ 500 - 3000MOQ: 1 Piece -
Rcyb Series Suspension Permanent Magnetic SeparatorUS$ 500 - 3000MOQ: 1 Piece
-
Rcdb Dry Electromagnetic Separator for Removing Iron in Cement/Power/Chemical/Coal Mine/MetallurgyUS$ 500 - 3000MOQ: 1 Set
-
Rcyd Self-Cleaning Permanent Magnetic Separator for Cement, Chemical, CeramicUS$ 500 - 3000MOQ: 1 Piece
-
Gjt-F Metal DetectorUS$ 1800 - 3000MOQ: 1 Piece
Brand Name
Zhitian
Place of Origin
China
Model Number
RCDD
Shape
Other, rectangle
Type
Solenoid
Application
Industrial Magnet
Composite
NdFeB Magnet
It is used to eliminate the powder or massive waste iron from the nonmagnetic material. The inner adopts the special resin to cast with wholly sealed structure. It features with deep revealed magnetic depth, strong magnetic force, dust-protection and rain-protection, erosion wearing and so on. It can be operated in the harsh environment.
Features:
-- By using the computer simulation magnetic circuit design, through magnetic depth, magnetic force is strong.
-- Special duct design, coil heat faster, low temperature.
--Coil adopts advanced insulation processing technology, with its anti corrosive.
--Automatic discharging iron. Easy maintenance, belt automatic correction
-- Product good compatibility, complete function.
Technical Parameters
| NO. | Model | conveyor belt width (mm) | Suspension height (h=mm) | Material depth (≤mm) | Magnetic intensity (≥mt) | Existing power (≤kw) | Belt speed (m/s) | Working system | Driving Power (kw) | Weigh (kg) | Appearance size (mm) | |||||
| A | B | C | D | E | ||||||||||||
| 1 | RCDD-5 | 500 | 150 | 100 | 60 | 1.0 | 4.5 | Continuous | 1.5 | 950 | 2020 | 1040 | 775 | 853 | 1000 | |
| 2 | RCDD-6 | 600 | 180 | 130 | 60 | 1.8 | 1.5 | 1380 | 2140 | 1100 | 800 | 910 | 1100 | |||
| 3 | RCDD-6.5 | 650 | 200 | 150 | 70 | 2.0 | 1.5 | 1490 | 2275 | 1190 | 820 | 988 | 1250 | |||
| 4 | RCDD-8 | 800 | 250 | 200 | 70 | 3.6 | 2.2 | 1770 | 2540 | 1480 | 865 | 1287 | 1350 | |||
| 5 | RCDD-10 | 1000 | 300 | 250 | 70 | 5.0 | 3.0 | 2380 | 2750 | 1635 | 940 | 1420 | 1400 | |||
| 6 | RCDD-12 | 1200 | 350 | 300 | 70 | 6.8 | 4.0 | 3170 | 3000 | 1800 | 1010 | 1580 | 1700 | |||
| 7 | RCDD-14 | 1400 | 400 | 350 | 70 | 9.0 | 5.5 | 4800 | 3500 | 2050 | 1050 | 1800 | 2000 | |||
| 8 | RCDD-16 | 1600 | 450 | 400 | 70 | 13.0 | 7.5 | 6300 | 3900 | 2450 | 1180 | 2200 | 2350 | |||
| 9 | RCDD-18 | 1800 | 500 | 450 | 80 | 18.0 | 7.5 | 7800 | 4400 | 2850 | 1290 | 2600 | 2800 | |||
| Note:All themodels have T1,T2,T3design whose magnetic intensity is higher than standard. The magnetic 90mt,120mt and 150mt separately,Discard iron belt can be equipped with armor. | ||||||||||||||||
