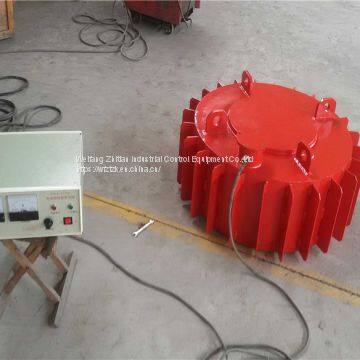

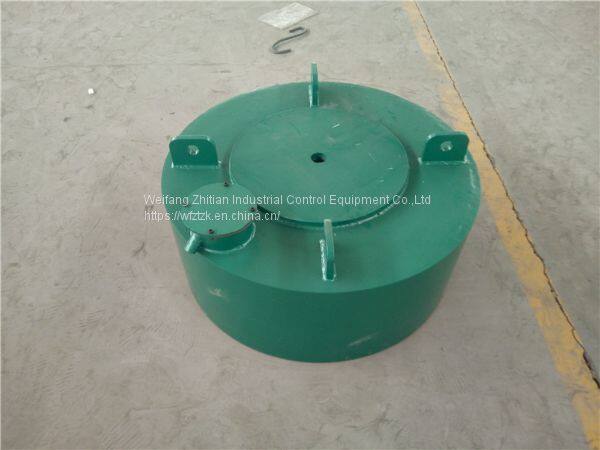

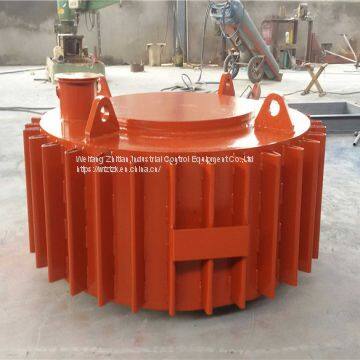

Rcdb Dry Electromagnetic Separator for Removing Iron in Cement/Power/Chemical/Coal Mine/Metallurgy
US$ 500 - 3000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Zhitian
Place of Origin:
China
Model Number:
RCDB
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin/Shanghai
Delivery Detail:
45 days
Related Products
-
Rcyd Self-Cleaning Permanent Magnetic Separator for Cement, Chemical, CeramicUS$ 500 - 3000MOQ: 1 Piece -
Rcdd Self-Cleaning Electromagnetic SeparatorUS$ 500 - 3000MOQ: 1 Piece
-
Rcde Oil-Cooling Electromagnetic Separator for Belt ConveyorUS$ 500 - 3000MOQ: 1 Piece
-
Rcyb Series Suspension Permanent Magnetic SeparatorUS$ 500 - 3000MOQ: 1 Piece
-
Gjt-F Metal DetectorUS$ 1800 - 3000MOQ: 1 Piece
Brand Name
Zhitian
Place of Origin
China
Model Number
RCDB
Shape
Ball
Type
Solenoid
Application
Industrial Magnet
Composite
NdFeB Magnet
RCDB dry electromagnetic separator is a selection equipment used to remove iron from powdery or massive non-magnetic materials. This machine is usually suspended over the conveyor belt to collect ferrous elements from non-magnetic materials.The inner part is poured by special resin with a naturally cooled wholly sealed structure. It can remove iron weighing 0.1~50KGS from non-magnetic materials. It has reliable magnetic field, with strong magnetic force,compact structure, light weight and easy to maintain,featuring with dust and rain-protection, wearing erosion,also it can run in the harsh environment.
Technical Parameters:
| NO. | Model | conveyor belt width (mm) | Suspension height (h=mm) | Material depth (≤mm) | Magnetic intensity (≥mt) | Belt speed (m/s) | Existing power (≤kw) | Weight (kg) | Appearance size (mm) | |||
| A | B | Φd | ||||||||||
| 1 | RCDB-3 | 300 | 75 | 50 | 50 | 4.5 | 0.4 | 185 | 210 | 250 | 400 | |
| 2 | RCDB-4 | 400 | 100 | 60 | 50 | 0.6 | 300 | 240 | 280 | 500 | ||
| 3 | RCDB-5 | 500 | 150 | 100 | 60 | 1.0 | 430 | 280 | 325 | 610 | ||
| 4 | RCDB-6 | 600 | 175 | 125 | 60 | 1.8 | 580 | 280 | 325 | 740 | ||
| 5 | RCDB-6.5 | 650 | 200 | 150 | 70 | 2.0 | 680 | 280 | 325 | 816 | ||
| 6 | RCDB-8 | 800 | 250 | 200 | 70 | 3.6 | 950 | 310 | 355 | 960 | ||
| 7 | RCDB-10 | 1000 | 300 | 250 | 70 | 5.0 | 1520 | 310 | 360 | 1200 | ||
| 8 | RCDB-12 | 1200 | 350 | 300 | 70 | 6.8 | 2250 | 310 | 365 | 1400 | ||
| 9 | RCDB-14 | 1400 | 400 | 350 | 70 | 9.0 | 2950 | 405 | 485 | 1650 | ||
| 10 | RCDB-16 | 1600 | 450 | 400 | 70 | 13.0 | 4800 | 460 | 540 | 1900 | ||
| 11 | RCDB-18 | 1800 | 500 | 450 | 70 | 18.0 | 6900 | 530 | 610 | 2150 | ||
Model/Data/Item | Cooling Mode | Belt Speed (mm) | Suspension Height (mm) | Existing Power (KW) | Magnetic Intensity (mT) | Dimension | Weight (Kg) | |
| RCDB-6 | T1 | Natural Cooling | 650 | 200 | 4.0 | 90 | 960×390 | 920 |
| T2 | 6 | 120 | 960×480 | 1450 | ||||
| T3 | 10 | 150 | 1000x550 | 2120 | ||||
| RCDB-8 | T1 | 800 | 250 | 5.3 | 90 | 1200x400 | 1510 | |
| T2 | 7.5 | 120 | 1200x450 | 1920 | ||||
| T3 | 11.5 | 150 | 1300x520 | 2600 | ||||
| RCDB-10 | T1 | 1000 | 300 | 7.1 | 90 | 1300x450 | 2320 | |
| T2 | 9.0 | 120 | 1300x540 | 3010 | ||||
| T3 | 14.0 | 150 | 1500x560 | 3480 | ||||
| RCDB-12 | T1 | 1200 | 350 | 9.0 | 90 | 1500x480 | 3290 | |
| T2 | 13.5 | 120 | 1500x560 | 4100 | ||||
| T3 | 16.0 | 150 | 1600x620 | 5300 | ||||
| RCDB-14 | T1 | 1400 | 400 | 11.5 | 90 | 1750x580 | 4500 | |
| T2 | 18.0 | 120 | 1750x700 | 6100 | ||||
| T3 | 25 | 150 | 1950x880 | 7500 | ||||
| RCDB-16 | T1 | 1600 | 450 | 18.0 | 90 | 1900x620 | 5800 | |
| T2 | 25.0 | 120 | 1950x680 | 7100 | ||||
| T3 | 40 | 150 | 2000x850 | 9320 | ||||
| RCDB-18 | T1 | 1800 | 500 | 25 | 90 | 2150x920 | 7350 | |
| T2 | 32 | 120 | 2200x1030 | 9200 | ||||
| T3 | 45 | 150 | 2200x1030 | 13800 | ||||
| RCDB-20 | T1 | 2000 | 550 | 30 | 90 | 2200x1030 | 8600 | |
| T2 | 40 | 120 | 2350x1080 | 13500 | ||||
| T3 | 50 | 150 | 2650x1320 | 17200 | ||||
