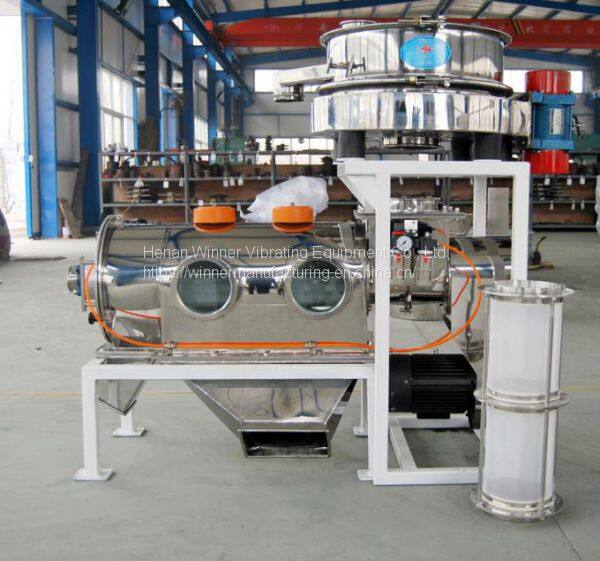

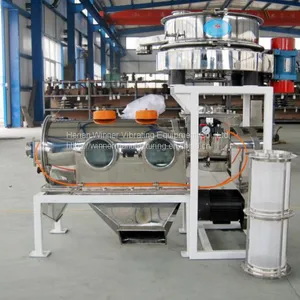

Winner airflow screen for food and chemical industry
Product overview of Airflow screen for food and chemical industry:
Airflow screen for food and chemical industry is based on aerodynamic theory, the fine powder for the screening of high-precision screening equipment.
Product Applications of Airflow screen for food and chemical industry:
1. Widely used in chemical, pharmaceutical, food, paper, metallurgy, building materials, rubber, machinery and other industries.
2. Continuous screening of 80-500 purpose powder material, arbitrarily replaced.
Operating principle of Airflow screen for food and chemical industry:
The air sieve rejects the traditional principle of gravity potential energy, and opens up a new way of screening the kinetic energy of the carrier fluid. It is in a closed state using high-speed air flow as a carrier, fully diffused powder particles with sufficient kinetic energy to the screen jet, to achieve the purpose of rapid classification. Therefore, the production of large screen airflow, high efficiency, non-stick network, not blocking mesh, fineness accuracy.
Product features of Airflow screen for food and chemical industry:
1.Large output, each output is 5-10 times that of ordinary shaker or higher.
2. High screening efficiency, through the screening rate of 85-95%.
3. Adapt to a wide range of fineness, screening high number of mesh, screening 80-500 classification purpose powder material.
4. Screening grading standards accurate.
5. Screen loading, no load, long life, easy to replace the screen simple.
6. Structure closed, negative pressure production, no dust scattered.
7. Noise is small, low power consumption, suitable for continuous production operations.
Technical parameter table of Airflow screen for food and chemical industry：
Parameter |
Air Flow（m3/h） |
Screen Specifications |
Effective Screen Surface（m2） |
Maximum Feed Size(mm) |
Screening Machine Power（KW） |
Spindle Speed（rpm） |
Screen Outside Diameter（mm） |
QS-600 |
240 |
100-500 |
0.6 |
40-60 |
2.2 |
1450 |
600 |
QS-1000 |
360 |
0.9 |
5.5 |
980 |
1008 |
||
QS-1200 |
430 |
2.9 |
7.5 |
960 |
1200 |
||
QS-1500 |
480 |
3.7 |
11 |
450 |
1500 |
Application example table of Airflow screen for food and chemical industry:
Material Name |
Working |
Screen (Mesh / Inch) |
S-1000 Throughput（kg/h） |
QS-1500 Throughput（kg/h） |
Light calcium |
Dry type |
120-180 |
600-1000 |
1000-2000 |
Weight calcium |
Dry type |
400 |
600-1000 |
1000-2000 |
Active calcium |
Dry type |
500 |
600-1000 |
1000-2000 |
