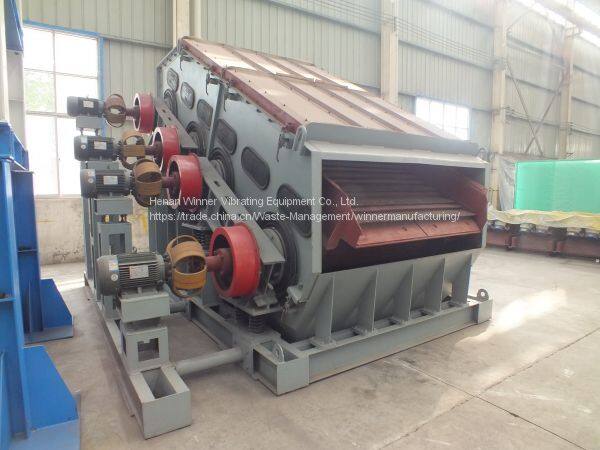

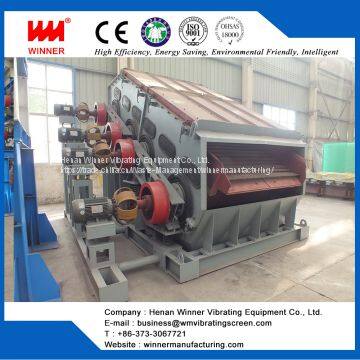

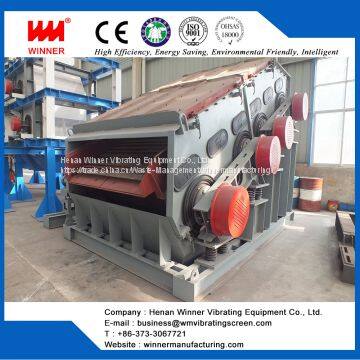

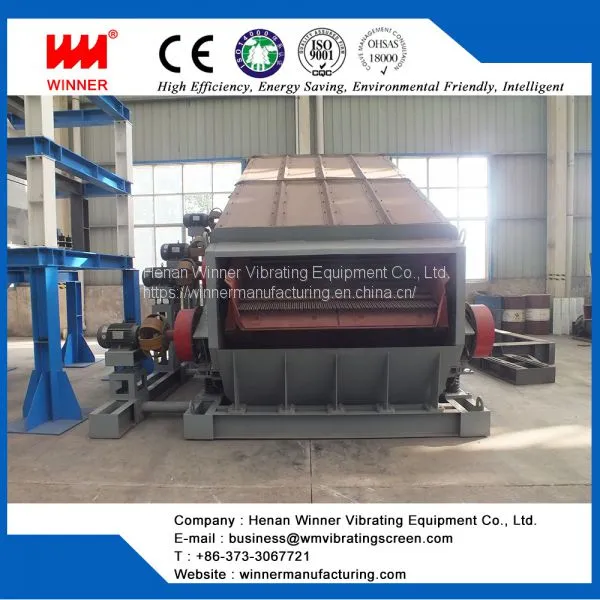

Dual frequency Linear vibrating screen for mining ore
Overview of Dual frequency Linear vibrating screen for mining ore:
Winner Group to achieve national environmental protection requirements,improve the sintering plant conditions of the environment, design a new ultra-environmental protection energy-saving double frequency vibrating screen, completely changed the sintering sieve site use environment, and effectively reduce the cost of sintering, to create green steel.
Features of Dual frequency Linear vibrating screen for mining ore:
1. Dual frequency Linear vibrating screen for mining ore changed the structure of the traditional vibrating screen sieve surface and screen box vibration, using multi-independent sieve surface vibration, sieve box and rack do not vibration movement.
2.Each section of sieve plate independent vibration source, independent vibration. According to the size distribution of the material in the field, the size of the material, the amplitude and the vibration frequency of each sieve surface can be adjusted adaptively to achieve the best combination of processing capacity and screening efficiency.
3. Less moving parts, the vibration quality is reduced and the power is small.
4. Screen box does not participate in vibration, so it is easier to achieve a fully enclosed structure, so that dust does not leak to meet the higher environmental requirements.
5. Sieve plate mainly used grizzly, comb, round steel welding, steel punching and so on.
|
Model |
Aperture size(mm) |
Motor speed r/min |
Motor power kw |
Amplitude mm |
Feed size mm |
Capacity t/h |
Outside Dimension(L*W*H) |
WFPS-40100 |
0-5 |
720-1440 |
8*18.5 |
6-9 |
≤5 |
0-600 |
10800*6208*5500 |
WFPS-36100 |
0-5 |
720-1440 |
8*15 |
6-9 |
≤5 |
0-520 |
10800*5908*5500 |
WFPS-33100 |
0-5 |
720-1440 |
8*15 |
6-9 |
≤5 |
0-450 |
10800*5908*5500 |
WFPS-3082 |
0-5 |
720-1440 |
6*11 |
6-9 |
≤5 |
0-360 |
9000*5208*5000 |
WFPS-2575 |
0-5 |
720-1440 |
6*7.5 |
6-9 |
≤5 |
0-280 |
8196*4650*4500 |
WFPS-2075 |
0-5 |
720-1440 |
6*5.5 |
6-9 |
≤5 |
0-230 |
8196*4150*4500 |
