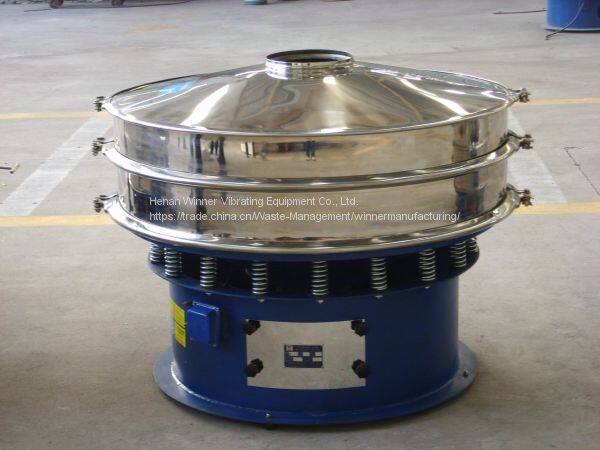

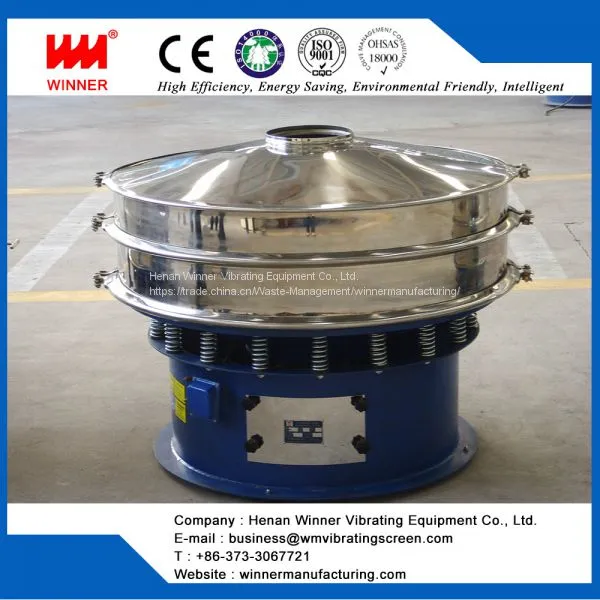

High efficiency rotary vibration screen from Winner
Overview of High efficiency rotary vibration screen from Winner:
High efficiency rotary vibration screen from Winner is a kind of high precision fine powder screening machine, low noise, high efficiency, full closed structure, suitable for granular, powder, mucus and other materials screening and filtering.There is no impact on the material, according to the different needs of customers 1-5 layer at the same time, stainless steel rotary vibration sieve model from the screen diameter is divided into 400-2000mm, 1-5 layer, 304 stainless steel and carbon steel and other models, Can meet a variety of powder, particle sieve requirements and liquid filtration needs, can also be designed for the gate-type rotary vibration sieve, plus edge-type rotary vibrating screen and other models.
Features of High efficiency rotary vibration screen from Winner:
1.Small size, light weight, saving space. The direction of the discharge port can be adjusted, coarse, fine material automatically discharged.
2.Screen mesh is not blocked, the powder is not flying, the smallest screen can be up to 500 mesh (28 microns), the smallest filter up to 5 microns.
3.Stainless steel rotary vibration screen with unique grid design, long-term use of screen, easy to change screen mesh, only 3-5 minutes, simple operation, easy to clean.
4.No mechanical action, easy maintenance, can be single or multi-layer use, contact part of the material is made of stainless steel (except for medical use).
Applications of High efficiency rotary vibration screen from Winner:
1.Chemical industry: resin powder, paint, washing powder, fine powder, paint, soda ash, lemon powder, rubber, plastic and so on.
2.Abrasive, ceramic industry: alumina, quartz sand, mud, spray soil particles.
3.Food industry: sugar, salt, alkali, monosodium glutamate, milk powder, soy milk, yeast, fruit juice, soy sauce, vinegar and so on.
4.Paper industry: coating coatings, white mud, black and white liquid, waste liquid, paper liquid, wastewater recovery.
5.Metallurgical industry: titanium oxide, zinc oxide, electromagnetic materials, metal powder, electrode powder.
6.Pharmaceutical industry: medicine powder, liquid medicine, medicine and other particles.
7.Environmental protection: waste, manure, waste oil, food waste water, wastewater processing.
How to replace the sieve mesh:
1.Remove the upper frame by loosening the beam and removing the broken wire and replacing it with a new one.
2. Put the fine net on the thick net, re-put the box back original position, with his hand in the mesh tension, frame edge and the lower frame edge ends, each with a universal clamp, the upper frame and the lower frame clamp.
3. Re-set the beam ring, loose universal clamp, the beam ring screw lock.
4. With a soft hammer evenly knock around the ring around the ring, then the copper nut lock, for fine network that is completed.
Technical Data Sheet of High efficiency rotary vibration screen from Winner:
Model |
Nominal diameter（mm） |
Sieve surface diameter（mm） |
Effective sieve area（m²） |
Maximum feed size（mm） |
Sieve size (Mesh/inch) |
Number of layers |
Vibration frequency（Rpm） |
Power（KW） |
|
WXZ-400 |
400 |
320 |
0.0804 |
2-325 |
1-3 |
1500 |
0.25 |
||
WXZ-600 |
600 |
550 |
0.2124 |
1500 |
0.4 |
||||
WXZ-800 |
800 |
750 |
0.4072 |
1500 |
0.75 |
||||
WXZ-1000 |
1000 |
950 |
0.6221 |
1500 |
1 |
||||
WXZ-1200 |
1200 |
1150 |
0.9331 |
1500 |
1.5 |
||||
WXZ-1500 |
1500 |
1450 |
1.5175 |
1500 |
2.2 |
||||
WXZ-1800 |
1800 |
1720 |
2.322 |
1500 |
3.7 |
||||
WXZ-2000 |
2000 |
1910 |
2.86 |
1500 |
3.7 |
